SELECT A DIAGRAM

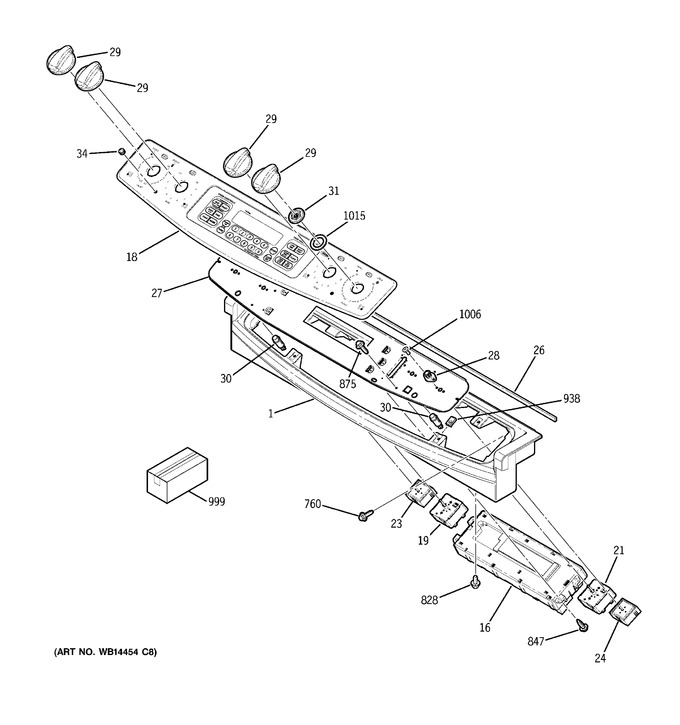

1 - Control Panel


2 - Cooktop


3 - Body Parts


4 - Door


5 - Door Lock


6 - Convection Fan


7 - Cooling Fan


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB36T10666		Panel Cntl Asm		Appelez-nous	-
16	WG02F05258		Control Erc   (Replaces: WB27T10803)			Immediately	$ 521.03
18	WB27T11040		Glass Touch Asm (ss)		Appelez-nous	-
19	WG02F01546		Switch Infinite Control   (Replaces: WB24T10119)			Immediately	$ 195.84
21	WG02F04017		Inf Switch Cntl (wm)   (Replaces: WB24T10012)				$ 64.87
23	WG02F01547		Switch Infinite Control   (Replaces: WB24T10134)			Immediately	$ 225.52
24	WG02F02165		Switch Infinite Control   (Replaces: WB24T10139)			Immediately	$ 248.59
26	WG02F05540		Control Panel Gasket   (Replaces: WB02X10742)				$ 47.74
27	WG02F02090		Insert Pnl Cntl   (Replaces: WB36T10570)				$ 100.50
28	WB02T10047		Crystal Mount		Appelez-nous	-
29	WB03T10263		Knob Asm		Appelez-nous	-
30	WG02F00904		Light Indicator   (Replaces: WB25T10056)				$ 12.71
31	WB02T10068		Retainer Ss Panel		Appelez-nous	-
31	WG02L01449		Crystal Retainer   (Replaces: WB02T10046)			Immediately	$ 9.53
34	WG02F00887		Lens Snap-in   (Replaces: WB25T10022)				$ 4.20
760	WB1K5028		Screw		Appelez-nous	-
828	WB1X1141		Screw		Appelez-nous	-
847	WB02T10324		Scr 6-20 Gxb Ihxw 3/8 Ni		Appelez-nous	-
875	WG04A00781		Screw 8-18 Ab Hxw 3/8   (Replaces: WH2X930)			Immediately	$ 3.97
938	WB1K5209		Clip		Appelez-nous	-
999	31-10674		Instructions Install		Appelez-nous	-
999	31-14741		Manual Mini & Wd Asm		Appelez-nous	-
999	WB18T10386		Harness Wire Glass Touch		Appelez-nous	-
999	29-5632		Manual Use & Care		Appelez-nous	-
999	WB02X11121		Cleaner Glass		Appelez-nous	-
1006	WB01T10053		Scr 8-32 Tpt Flr .270		Appelez-nous	-
1015	WB01T10057		Washer Ss		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
