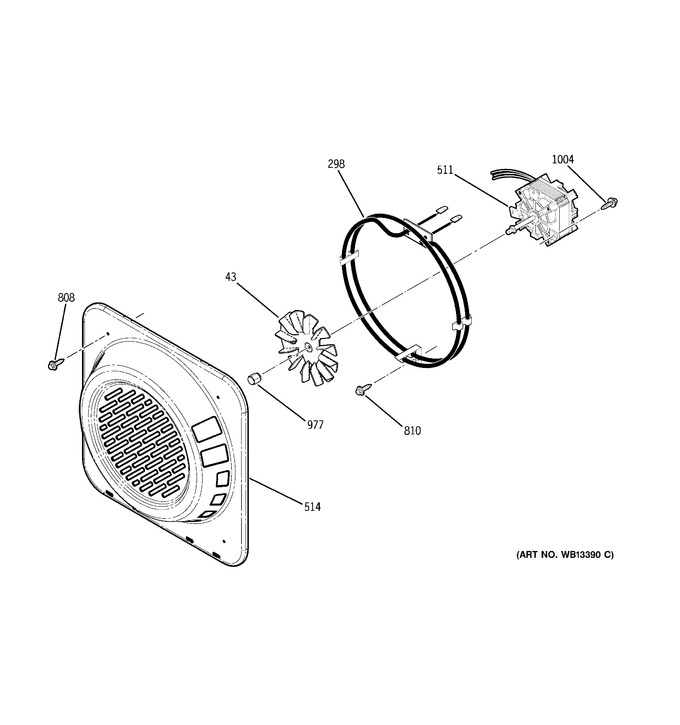

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
43	WG02F00731		Hub Blade Asm   (Replaces: WB02T10289)			Immediately	$ 36.53
298	WG02F04321		Element Convx   (Replaces: WB44T10053)			Immediately	$ 110.92
511	WB26T10033		Motor Psc Conv		Appelez-nous	-
514	WG02F04640		Cover Fan (convx)   (Replaces: WB26T10053)				$ 123.85
808	WB01T10058		Scr 10-16 Ab Hxw.750 S N		Appelez-nous	-
810	WB1X1253		Screw		Appelez-nous	-
977	WS01A01105		Nut   (Replaces: WB02T10017)			Immediately	$ 9.17
1004	WH2X941		Scr 8-15 A Hxw 7/8 S		Appelez-nous	-
