SELECT A DIAGRAM

1 - Control Panel


2 - Cooktop


3 - Body Parts


4 - Door


5 - Door Lock


6 - Convection Fan


7 - Cooling Fan

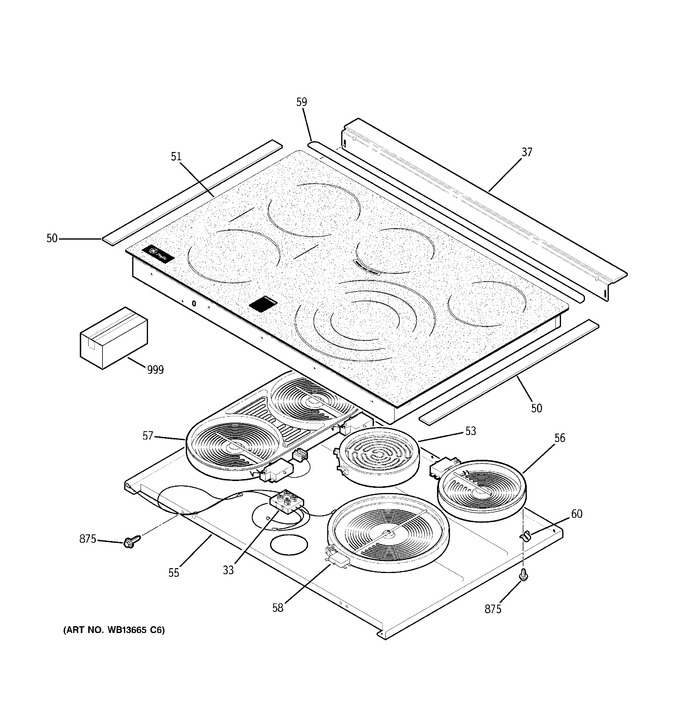

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
33	WG02F05647		Module Indicator Light   (Replaces: WB18T10349)				$ 45.10
37	WB07T10680		Kit Flr Mt (wb07t10680)		Appelez-nous	-
50	WG02L02012		Gasket Maintop Rh   (Replaces: WB02T10319)				$ 15.88
50	WG02L02011		Gasket Maintop Lh   (Replaces: WB02T10320)			Immediately	$ 12.71
51	WB62T10771		Maintop Glass Asm (bk)		Appelez-nous	-
53	WS01F01171		Element Radiant 6 Warmer   (Replaces: WB30T10124)			Immediately	$ 60.26
55	WB61K10010		Burner Box Bottom		Appelez-nous	-
56	WG02F02056		Element Radiant 5.5 In   (Replaces: WB30T10145)			Immediately	$ 148.15
57	WB30T10141		Element Radnt Bridge		Appelez-nous	-
58	WG02F02055		Element Haliant 12 Trpl   (Replaces: WB30T10126)			Immediately	$ 203.55
59	WB02T10150		Gasket Maintop		Appelez-nous	-
60	WS01A03252		Spring Radiant Element   (Replaces: WB09T10013)			Immediately	$ 4.37
875	WG04A00781		Screw 8-18 Ab Hxw 3/8   (Replaces: WH2X930)			Immediately	$ 3.97
875	WB01T10046		Scr 8-18 Ab Hw 9/16 Blk		Appelez-nous	-
999	31-14741		Manual Mini & Wd Asm		Appelez-nous	-
999	29-5632		Manual Use & Care		Appelez-nous	-
999	31-10674		Instructions Install		Appelez-nous	-
999	WB02X11121		Cleaner Glass		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
