1 - Control Panel
2 - Cooktop
3 - Body Parts
4 - Door
5 - Door Lock
6 - Convection Fan
7 - Cooling Fan
SELECT A DIAGRAM
New Model Search:

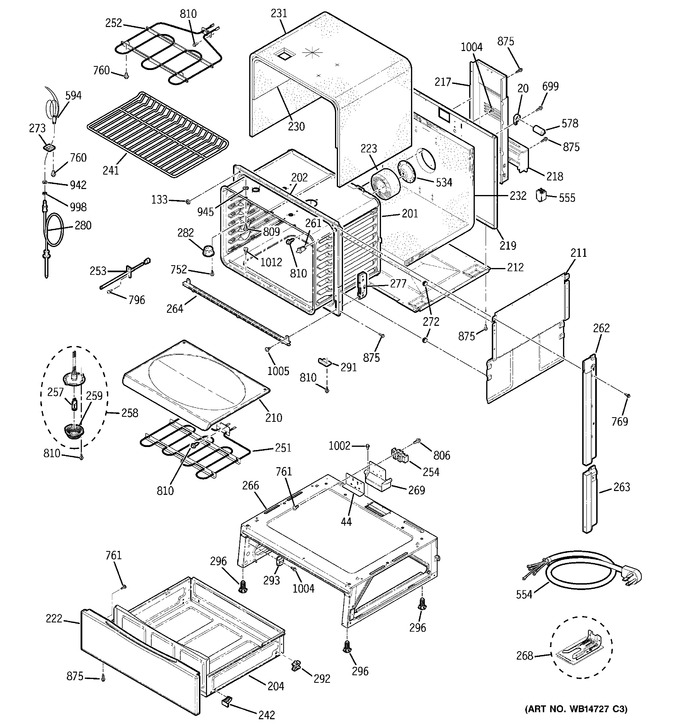

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 20 | WB02T10152 | Bracket Capacitor |
|
- | |||||
| 44 | WB02T10242 | Bracket |
|
- | |||||
| 133 | WG02F03972 | Frt Fr Door Bumper (Replaces: WB01T10022) |
|
$ 6.35 | |||||
| 201 | WG02L02394 | Wrapper Ovn Cav Asm (Replaces: WB63T10149) |
|
$ 169.87 | |||||
| 202 | WB63T10083 | Frame Frt Lwr |
|
- | |||||
| 204 | WB55T10180 | Drawer Body Asm Mech |
|
- | |||||
| 210 | WB63T10034 | False Bottom |
|
- | |||||
| 211 | WB02T10284 | Retainer Insln Sde |
|
- | |||||
| 212 | WB02T10372 | Retainer Insln Btm |
|
- | |||||
| 217 | WB34K10049 | Cover Wire Rear |
|
- | |||||
| 218 | WB34T10054 | Cover Wire Rr Lwr |
|
- | |||||
| 219 | WB02T10377 | Retainer Insln Back |
|
- | |||||
| 222 | WB56T10286 | Panel Drawer Ss |
|
- | |||||
| 223 | WB35K5117 | Ov Insulation Support |
|
- | |||||
| 230 | WB35T10126 | Insulation Top |
|
- | |||||
| 231 | WB35T10074 | Insulation (out) |
|
- | |||||
| 232 | WB35T10090 | Insulation Back & Btm |
|
- | |||||
| 241 | WG02F02142 | Rack Oven (gy) (Replaces: WB48T10059) |
|
Immediately | $ 102.65 | ||||
| 242 | WG02F04563 | Wedge Drawer (Replaces: WB48T10068) |
|
$ 6.35 | |||||
| 251 | WB44T10041 | Element Bake |
|
- | |||||
| 252 | WS01F05473 | Unit Broil Asm (dlx) (Replaces: WB44T10043) |
|
$ 146.24 | |||||
| 253 | WG02F01436 | Sensor Asm (Replaces: WB23T10015) |
|
Immediately | $ 68.23 | ||||
| 254 | WG02F02750 | Terminal Block Asm (Replaces: WB17T10012) |
|
Immediately | $ 158.95 | ||||
| 257 | WG02F02723 | Lamp Halogen (Replaces: WB08T10021) |
|
Immediately | $ 51.33 | ||||
| 258 | WB25T10026 | Lamp Halogen Asm |
|
- | |||||
| 259 | WG02F05610 | Lens Ovn Lamp (Replaces: WB25T10027) |
|
$ 28.59 | |||||
| 261 | WG02F02821 | Switch Spdt High Amp (Replaces: WB24T10160) |
|
Immediately | $ 30.18 | ||||
| 262 | WB07T10520 | Trim Vert Sde Rt (bk) |
|
- | |||||
| 262 | WB07T10521 | Trim Vert Sde Lt (bk) |
|
- | |||||
| 263 | WB07T10631 | Trim Vert Side Rt (bk) |
|
- | |||||
| 263 | WB07T10632 | Trim Vert Side Lt (bk) |
|
- | |||||
| 264 | WB07T10516 | Trim Frt Frm (bk) |
|
- | |||||
| 266 | WB39T10007 | Base Rivet Asm |
|
- | |||||
| 268 | WB02T10416 | Bracket Anti-tip Asm |
|
- | |||||
| 269 | WB17T10021 | Mount Terminal Block |
|
- | |||||
| 272 | WG02L01603 | Side Support Panel (Replaces: WB02T10034) |
|
$ 4.20 | |||||
| 273 | WB2K5365 | Cover |
|
- | |||||
| 273 | WB2X8309 | Probe Cover |
|
- | |||||
| 277 | WB10T10083 | Receiver Hinge |
|
- | |||||
| 280 | WG02F05721 | Probe Thermistor (Replaces: WB20T10025) |
|
Immediately | $ 65.00 | ||||
| 282 | WB28T10075 | Vent Inlet Duct |
|
- | |||||
| 282 | WB28T10073 | Tube Vent |
|
- | |||||
| 291 | WB2X9152 | Cover |
|
- | |||||
| 292 | WG02A03380 | Rear Drawer Support (Replaces: WB48T10030) |
|
Immediately | $ 9.53 | ||||
| 293 | WG02L01594 | Frt Drawer Support (Replaces: WB48T10013) |
|
$ 6.35 | |||||
| 296 | WG02A00475 | Leg Leveler (Replaces: WB02X10521) |
|
Immediately | $ 6.35 | ||||
| 534 | WB02T10249 | Support Ovn Cav |
|
- | |||||
| 554 | WG02F05719 | Cord Power (Replaces: WB08T10029) |
|
$ 128.16 | |||||
| 555 | WS01F02351 | Relay (Replaces: WB18T10352) |
|
Immediately | $ 184.64 | ||||
| 578 | WG02F00227 | Capacitor Motor (Replaces: WB27T10662) |
|
$ 28.59 | |||||
| 594 | WB08T10041 | Harness Wire Probe |
|
- | |||||
| 699 | WB1K5150 | Screw St10-16 X 7/16" |
|
- | |||||
| 752 | WG02A00488 | Screw (Replaces: WB1K5200) |
|
$ 4.20 | |||||
| 760 | WB1K5028 | Screw |
|
- | |||||
| 761 | WB1K5029 | Screw-black |
|
- | |||||
| 761 | WB1K5062 | Screw St8-18x.500trbrni |
|
- | |||||
| 761 | WG02A00487 | Scr 8-18x.450 Ab Flt20 S (Replaces: WB01T10110) |
|
$ 4.78 | |||||
| 769 | WB1X500 | Scr 8-18 B Hxw 1/4 S |
|
- | |||||
| 796 | WB1X1178 | Screw |
|
- | |||||
| 806 | WH2X1186 | Scr 8-18 Ab Ihw 5/8 S |
|
- | |||||
| 809 | WG02A00781 | Screw (Replaces: WB1X1137) |
|
$ 15.88 | |||||
| 810 | WB1M1 | Screw |
|
- | |||||
| 875 | WB01T10046 | Scr 8-18 Ab Hw 9/16 Blk |
|
- | |||||
| 875 | WG04A00781 | Screw 8-18 Ab Hxw 3/8 (Replaces: WH2X930) |
|
Immediately | $ 3.97 | ||||
| 942 | WB1X5573 | Washer |
|
- | |||||
| 945 | WB1K5046 | Lockwasher |
|
- | |||||
| 998 | WG02A00927 | Nut (Replaces: WB1X5572) |
|
$ 67.26 | |||||
| 1002 | WB01T10017 | Scr 8-18 Ab Ihw 3/8 S Ns |
|
- | |||||
| 1004 | WH2X941 | Scr 8-15 A Hxw 7/8 S |
|
- | |||||
| 1005 | WS01A01018 | Scr 10-32 Tr T (Replaces: WB01T10008) |
|
Immediately | $ 3.97 | ||||
| 1012 | WB01T10048 | Screw 10-16 Shldr Type A |
|
- |
