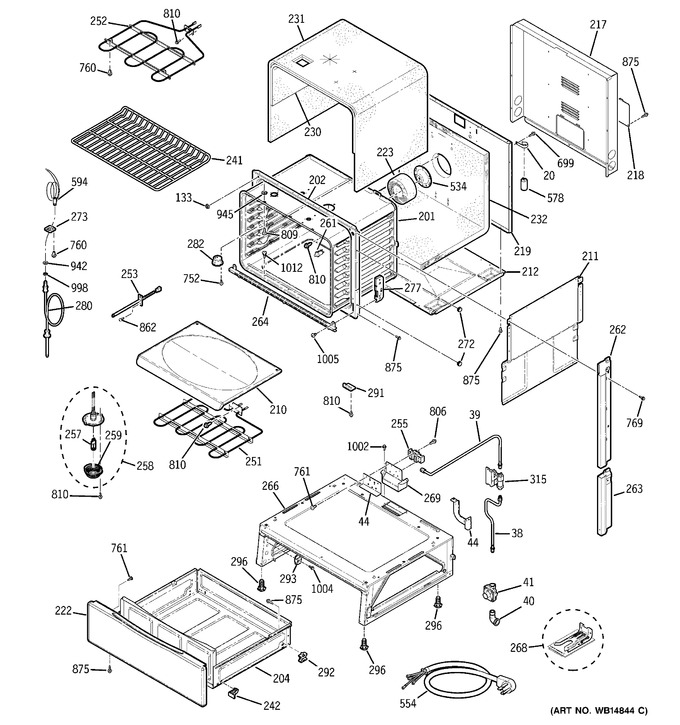

SELECT A DIAGRAM

1 - Control Panel


2 - Cooktop


3 - Body Parts


4 - Door


5 - Door Lock


6 - Convection Fan


7 - Cooling Fan


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
20	WB02T10152		Bracket Capacitor		Appelez-nous	-
38	WB28T10192		Tube		Appelez-nous	-
39	WB28T10191		Tube		Appelez-nous	-
40	WB28T10091		Elbow		Appelez-nous	-
41	WB19T10075		Regulator Convert Press		Appelez-nous	-
44	WB02T10190		Bracket Regulator		Appelez-nous	-
44	WB02T10242		Bracket		Appelez-nous	-
133	WG02F03972		Frt Fr Door Bumper   (Replaces: WB01T10022)				$ 5.72
133	WG02F03973		Tape Foam   (Replaces: WB01T10052)				$ 3.57
201	WG02L02394		Wrapper Ovn Cav Asm   (Replaces: WB63T10149)				$ 169.87
202	WB63T10083		Frame Frt Lwr		Appelez-nous	-
204	WB55T10180		Drawer Body Asm Mech		Appelez-nous	-
210	WB63T10034		False Bottom		Appelez-nous	-
211	WB02T10284		Retainer Insln Sde		Appelez-nous	-
212	WB02T10372		Retainer Insln Btm		Appelez-nous	-
217	WB02T10347		Cover Duct		Appelez-nous	-
218	WB02T10234		Panel Access Wire		Appelez-nous	-
219	WB02T10342		Retainer Insln Back		Appelez-nous	-
222	WB56T10286		Panel Drawer Ss		Appelez-nous	-
223	WB35K5117		Ov Insulation Support		Appelez-nous	-
230	WB35T10187		Insulation Top		Appelez-nous	-
231	WB35T10089		Insulation Top & Sds Otr		Appelez-nous	-
232	WB35T10090		Insulation Back & Btm		Appelez-nous	-
241	WG02F02142		Rack Oven (gy)   (Replaces: WB48T10059)			Immediately	$ 92.39
242	WG02F04563		Wedge Drawer   (Replaces: WB48T10068)				$ 5.72
251	WB44T10041		Element Bake		Appelez-nous	-
252	WS01F05473		Unit Broil Asm (dlx)   (Replaces: WB44T10043)				$ 131.62
253	WG02F01436		Sensor Asm   (Replaces: WB23T10015)			Immediately	$ 63.62
255	WG02F02750		Terminal Block Asm   (Replaces: WB17T10011)			Immediately	$ 143.06
257	WG02F02723		Lamp Halogen   (Replaces: WB08T10021)			Immediately	$ 51.12
258	WG02F04638		Lamp Halogen Asm   (Replaces: WB25T10030)				$ 71.74
259	WG02F05610		Lens Ovn Lamp   (Replaces: WB25T10027)				$ 25.73
261	WG02F02821		Switch Spdt High Amp   (Replaces: WB24T10160)			Immediately	$ 27.16
262	WB07T10521		Trim Vert Sde Lt (bk)		Appelez-nous	-
262	WB07T10520		Trim Vert Sde Rt (bk)		Appelez-nous	-
263	WB07T10631		Trim Vert Side Rt (bk)		Appelez-nous	-
263	WB07T10632		Trim Vert Side Lt (bk)		Appelez-nous	-
264	WB07T10516		Trim Frt Frm (bk)		Appelez-nous	-
266	WB39T10012		Base Rivet Asm		Appelez-nous	-
268	WB02T10415		Bracket Anti-tip Asm		Appelez-nous	-
269	WB17T10021		Mount Terminal Block		Appelez-nous	-
272	WG02L01603		Side Support Panel   (Replaces: WB02T10034)				$ 4.20
273	WB2K5365		Cover		Appelez-nous	-
273	WB2X8309		Probe Cover		Appelez-nous	-
277	WB10T10083		Receiver Hinge		Appelez-nous	-
280	WG02F05721		Probe Thermistor   (Replaces: WB20T10025)			Immediately	$ 63.86
282	WB28T10075		Vent Inlet Duct		Appelez-nous	-
282	WB28T10073		Tube Vent		Appelez-nous	-
291	WB2X9152		Cover		Appelez-nous	-
292	WG02A03380		Rear Drawer Support   (Replaces: WB48T10030)				$ 8.58
293	WG02L01594		Frt Drawer Support   (Replaces: WB48T10013)				$ 5.72
296	WG02A00475		Leg Leveler   (Replaces: WB02X10521)			Immediately	$ 5.72
315	WG02F06088		Valve Lockout Motorized   (Replaces: WB19T10068)				$ 260.17
534	WB02T10249		Support Ovn Cav		Appelez-nous	-
554	WG02F05719		Cord Power   (Replaces: WB08T10029)				$ 128.16
578	WG02F00227		Capacitor Motor   (Replaces: WB27T10662)				$ 25.73
594	WG02F06490		Harness Wire Probe   (Replaces: WB18T10390)				$ 79.30
699	WB1K5150		Screw St10-16 X 7/16"		Appelez-nous	-
752	WG02A00488		Screw   (Replaces: WB1K5200)				$ 4.20
760	WB1K5028		Screw		Appelez-nous	-
761	WB1K5029		Screw-black		Appelez-nous	-
761	WG02A00487		Scr 8-18x.450 Ab Flt20 S   (Replaces: WB01T10110)				$ 4.78
769	WB1X500		Scr 8-18 B Hxw 1/4 S		Appelez-nous	-
806	WH2X1186		Scr 8-18 Ab Ihw 5/8 S		Appelez-nous	-
809	WG02A00781		Screw   (Replaces: WB1X1137)				$ 14.29
810	WB1X1253		Screw		Appelez-nous	-
862	WB1X1178		Screw		Appelez-nous	-
875	WG04A00781		Screw 8-18 Ab Hxw 3/8   (Replaces: WH2X930)			Immediately	$ 3.57
942	WB1X5573		Washer		Appelez-nous	-
945	WB1K5046		Lockwasher		Appelez-nous	-
998	WG02A00927		Nut   (Replaces: WB1X5572)				$ 67.26
1002	WB01T10017		Scr 8-18 Ab Ihw 3/8 S Ns		Appelez-nous	-
1004	WH2X941		Scr 8-15 A Hxw 7/8 S		Appelez-nous	-
1005	WS01A01018		Scr 10-32 Tr T   (Replaces: WB01T10008)			Immediately	$ 3.57
1012	WB01T10048		Screw 10-16 Shldr Type A		Appelez-nous	-
