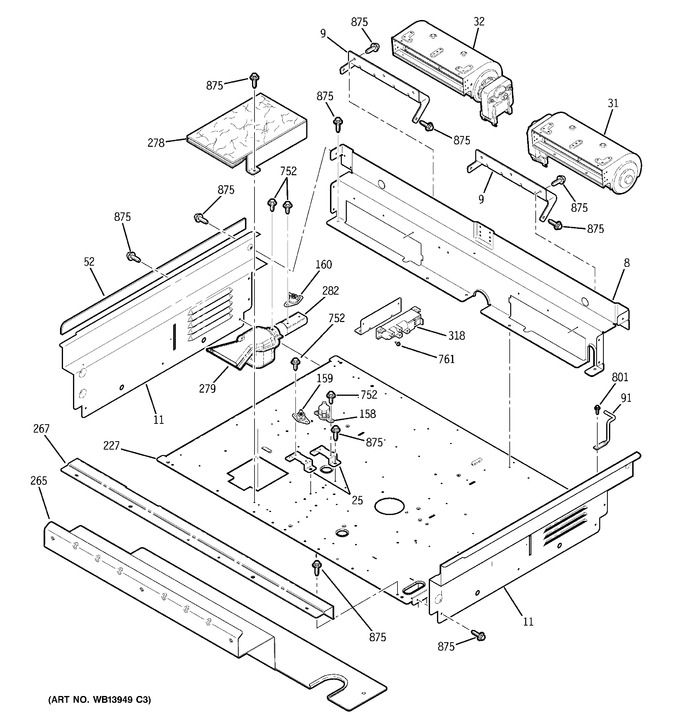

SELECT A DIAGRAM

1 - Control Panel


2 - Cooktop


3 - Body Parts


4 - Door


5 - Door Lock


6 - Convection Fan


7 - Cooling Fan


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
8	WB07T10535		Extension Rear		Appelez-nous	-
9	WB02T10341		Bracket Blower		Appelez-nous	-
11	WB07T10536		Extension Side Rt		Appelez-nous	-
11	WB07T10537		Extension Side Lt		Appelez-nous	-
25	WB02T10270		Bracket Switch		Appelez-nous	-
25	WB2K5238		Switch Bracket		Appelez-nous	-
31	WG02F05208		Blower Tangential 60mm   (Replaces: WB26T10042)			Immediately	$ 156.42
32	WG02F05207		Blower Tangential 60mm   (Replaces: WB26T10041)				$ 143.06
52	WG02L02012		Gasket Maintop Rh   (Replaces: WB02T10319)				$ 14.29
52	WG02L02011		Gasket Maintop Lh   (Replaces: WB02T10320)			Immediately	$ 11.44
91	WB10T10096		Hinge Maintop Rt		Appelez-nous	-
91	WB10T10097		Hinge Maintop Lt		Appelez-nous	-
158	WB24T10140		Switch Limit (l1)		Appelez-nous	-
159	WB24T10141		Switch Limit Bimetal		Appelez-nous	-
160	WB24T10142		Switch Limit Bimetal		Appelez-nous	-
227	WB02T10343		Retainer Insln Top		Appelez-nous	-
265	WB02T10348		Bracket Maintop		Appelez-nous	-
267	WB07T10499		Trim Asm		Appelez-nous	-
278	WB34T10079		Shield Vent Asm		Appelez-nous	-
279	WB38T10019		Box Vnt Asm		Appelez-nous	-
282	WB28T10073		Tube Vent		Appelez-nous	-
282	WB28T10075		Vent Inlet Duct		Appelez-nous	-
318	WG02F16815		Module Spark (4+0)   (Replaces: WB13T10079)				$ 51.54
752	WG02A00488		Screw   (Replaces: WB1K5200)				$ 4.20
761	WB1K5029		Screw-black		Appelez-nous	-
761	WG02A00487		Scr 8-18x.450 Ab Flt20 S   (Replaces: WB01T10110)				$ 4.78
801	WB1M1		Screw		Appelez-nous	-
875	WG04A00781		Screw 8-18 Ab Hxw 3/8   (Replaces: WH2X930)			Immediately	$ 3.57
	WG02F04638		Lamp Asm   (Replaces: WG02F02826)				$ 71.74

    View Diagram in Separate Window       Print Part List
