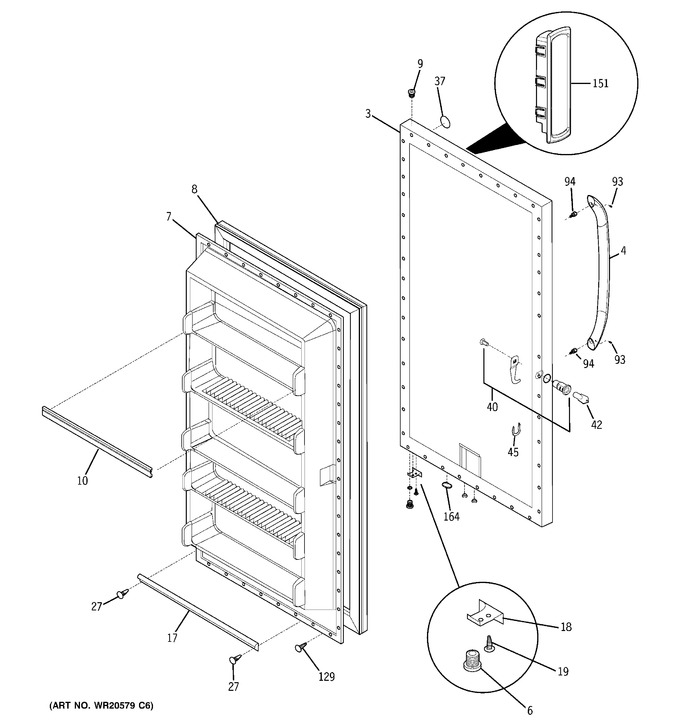

1 - Freezer Door
2 - Cabinet
3 - Unit Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | WR78X12559 | Panel-outer Door, White |
|
- | |||||
| 4 | WR12X10968 | Handle-door |
|
- | |||||
| 6 | WR02X12310 | Bearing-hinge Bottom |
|
- | |||||
| 7 | WR77X10060 | Panel-inner Door,frzr |
|
- | |||||
| 8 | WR24X10010 | Gasket |
|
- | |||||
| 9 | WR02X12067 | Bearing,hinge ,top |
|
- | |||||
| 10 | WR17X11913 | Rack-door |
|
- | |||||
| 17 | 216524201 | Gasket, Secondary (Replaces: WR14X10314) |
|
$ 49.62 | |||||
| 18 | WR02X12995 | Door Stop, Chrome, Rh/lh |
|
- | |||||
| 19 | WR02X12989 | Screw, Door Stop Mtg, Fh |
|
- | |||||
| 27 | 5304472186 | Clip, Panel Mtg (Replaces: WR01X10916) |
|
$ 11.57 | |||||
| 37 | WR40X10058 | Breaker Kit W/corners,32 |
|
- | |||||
| 40 | WR05X10035 | Lock Assy |
|
- | |||||
| 42 | WR05X10005 | Key |
|
- | |||||
| 45 | WR01X10870 | Clip, Spring |
|
- | |||||
| 93 | WG03A00456 | Screw-set (Replaces: WR01X10922) |
|
$ 64.18 | |||||
| 94 | WR01X10873 | Screw-shoulder, #10 Ab, |
|
- | |||||
| 129 | WR01X10797 | Screw,ph Truss Head ,8-1 |
|
- | |||||
| 151 | WR55X10904 | Control Ez Set Ge 115v W |
|
- | |||||
| 164 | WR02X10087 | Plug Button Base Door |
|
- |
