SELECT A DIAGRAM

1 - Freezer Door

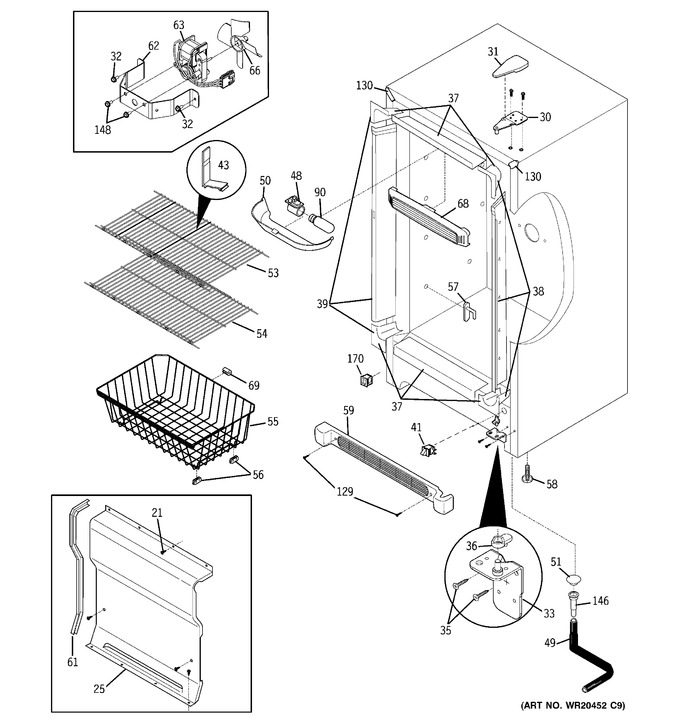

2 - Cabinet


3 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
21	WR01X10781		Screw,8-18ab X 0.470 ,ev		Appelez-nous	-
25	WR17X12665		Cover-evaporator		Appelez-nous	-
30	297283803		Hinge-upper   (Replaces: WR12X10963)			Immediately	$ 19.52
31	WR02X12689		Cover-hinge		Appelez-nous	-
32	WR01X10915		Screw, #8, 18x.63, Self		Appelez-nous	-
33	WR12X10964		Hinge-bottom, Stepped Pi		Appelez-nous	-
35	WR01X10874		Screw, Tamper Proof, 1/4		Appelez-nous	-
36	WR02X10393		Ramp Door Closure		Appelez-nous	-
37	WR40X10058		Breaker Kit W/corners,32		Appelez-nous	-
38	WR40X10064		Breaker Kit W/corners		Appelez-nous	-
39	WR40X10065		Breaker Kit W/corners,lo		Appelez-nous	-
41	WR23X10303		Switch Light		Appelez-nous	-
43	WR02X12993		Divider, White, Wire She		Appelez-nous	-
48	WR23X10302		Light Socket		Appelez-nous	-
49	WR17X4120		Hose-drain 17.50"		Appelez-nous	-
50	WR02X12994		Shield-light		Appelez-nous	-
51	WR01X10031		Plug-drain		Appelez-nous	-
53	WR71X10906		Shelf, Wire, 16.69x27.88		Appelez-nous	-
54	WR71X10898		Shelf, 14.50x27.88		Appelez-nous	-
55	WR21X10216		Basket		Appelez-nous	-
56	WR02X11444		Glide-basket		Appelez-nous	-
57	WR02X11446		Stop-basket		Appelez-nous	-
58	WR2X9485		Leveling Leg Adjustable		Appelez-nous	-
59	WR74X10300		Grille/kickplate, 32", W		Appelez-nous	-
61	WR14X10293		Gasket-evap Cover		Appelez-nous	-
62	WR02X12686		Bracket,fan Motor Mount		Appelez-nous	-
63	WR60X10267		Motor,fan ,115 V		Appelez-nous	-
66	WR60X5082		Fan Blade		Appelez-nous	-
68	WR17X12658		Baffle, Air		Appelez-nous	-
69	WR2X6361		Bumper Basket		Appelez-nous	-
90	PURCH. LOCAL1		Light Bulb/lamp		Appelez-nous	-
129	WR01X10797		Screw,ph Truss Head ,8-1		Appelez-nous	-
130	WR02X12717		Trim-cabinet Corner,whit		Appelez-nous	-
146	WR2X6353		Drain		Appelez-nous	-
148	WR01X10798		Screw,hex Washer Head ,8		Appelez-nous	-
170	297280400		Valve, Breather   (Replaces: WR86X10064)				$ 10.13

    View Diagram in Separate Window       Print Part List
