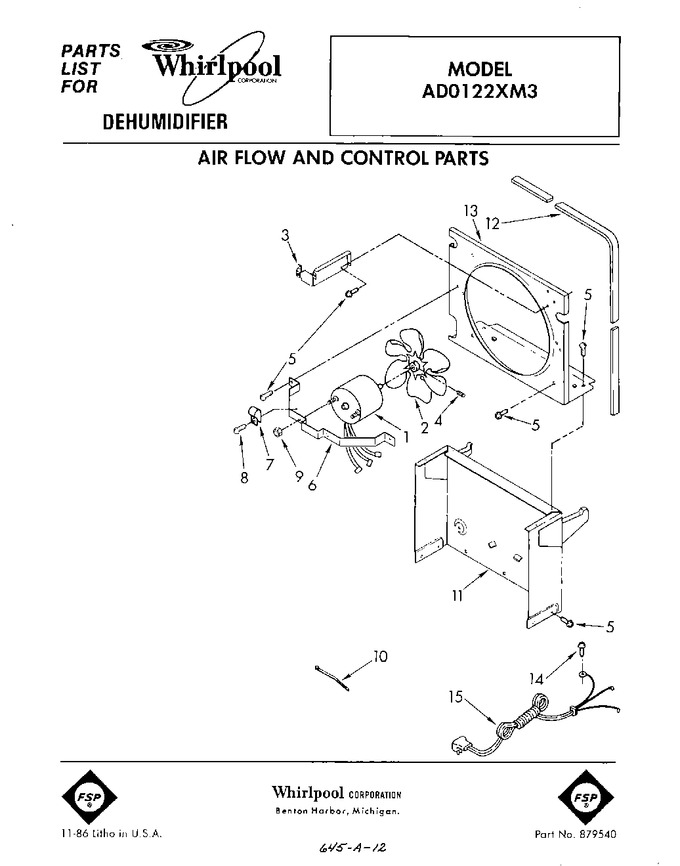

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1155662 | Motor, Fan |
|
- | |||||
| 2 | 949645 | Blade, Fan (includes No.2) |
|
- | |||||
| 3 | 951284 | Bracket, Control |
|
- | |||||
| 4 | 488035 | Screw, Set 1/4-28 X 5/16 |
|
- | |||||
| 5 | 488624 | Screw, Sm No.8 X 3/8 |
|
- | |||||
| 6 | 998777 | Bracket, Fan Motor Mounting |
|
- | |||||
| 7 | 488946 | Clamp, Tube (4) |
|
$ 21.47 | |||||
| 8 | WP488729 | Screw, 8 X 1/2a (Replaces: 487910) |
|
Immediately | $ 8.28 | ||||
| 9 | WP488130 | Nut, Fan Motor 8-32 (2) (Replaces: 488130) |
|
$ 7.32 | |||||
| 10 | WPW10339879 | Tie, Cable (2) (Replaces: 602851) |
|
$ 8.30 | |||||
| 11 | 998729 | Support |
|
- | |||||
| 12 | 998802 | Seal |
|
- | |||||
| 13 | 998779 | Plate, Orifice |
|
- | |||||
| 14 | WPW10141604 | Screw, 8-32 X 5/32 (Replaces: 487871) |
|
$ 8.85 | |||||
| 15 | 1155671 | Cord, Appliance |
|
- |
