View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

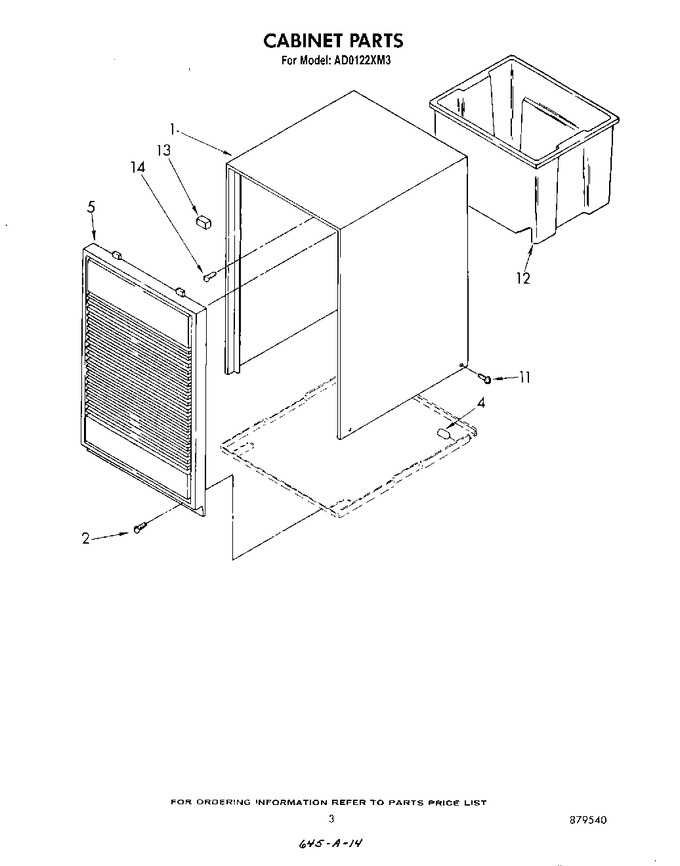

01 - Section
02 - Section
03 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 998820 | Cabinet |
|
- | |||||
| 2 | WPW10141625 | Screw, St 8-32 X 1/2 (2) (Replaces: 489120) |
|
$ 22.22 | |||||
| 4 | 998869 | Cap, Thread Cover (2) |
|
- | |||||
| 5 | 950385 | Grille, Front |
|
- | |||||
| 11 | 489016 | Screw, Tc 8-32 X 3/8 (4) |
|
- | |||||
| 12 | 951901 | Pan, Condensate |
|
$ 80.76 | |||||
| 13 | 948584 | Spacer, Grille |
|
- | |||||
| 14 | 505168 | Tape, No Drip (30` Roll) Valve, Access |
|
- | |||||
| 14 | 978029 | 5/8`` Tube O.d. |
|
$ 93.85 | |||||
| 14 | 978030 | 3/4`` Tube O.d. |
|
$ 137.25 | |||||
| 14 | 978865 | Seal, Ring (access Valve) (20 - Pack) |
|
- | |||||
| 14 | 212643 | Sealer, Permagum (4-12`` Strips) |
|
Immediately | $ 82.13 | ||||
| 14 | 485426 | Paint, Touch-up Starlite 1/2 Pt. Laquer |
|
- | |||||
| 14 | 978026 | 5/16``tube O.d. |
|
Immediately | $ 134.49 | ||||
| 14 | WP488729 | Screw, Sm No.8 X 32 (2) (Replaces: 489073) |
|
Immediately | $ 8.28 | ||||
| 14 | 646753 | Cap, Condensate Pan |
|
- | |||||
| 14 | WP16123 | Washer, Condensate Pan (Replaces: 647338) |
|
$ 8.16 | |||||
| 14 | WP978025 | 1/4`` Tube O.d. (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| 14 | 799833 | Epoxy, Tube (aluminum Repair) |
|
- | |||||
| 14 | SF5538 | 3/8`` Tube O.d. (Replaces: 978027) |
|
$ 21.64 | |||||
| 14 | 978028 | 1/2`` Tube O.d. |
|
- | |||||
| LIT879540 | List, Repair Parts |
|
- | ||||||
| LIT1155876 | Guide, Use And Care |
|
- | ||||||
| LIT1155825 | Sheet, Tech And Wiring Diagram |
|
- |
