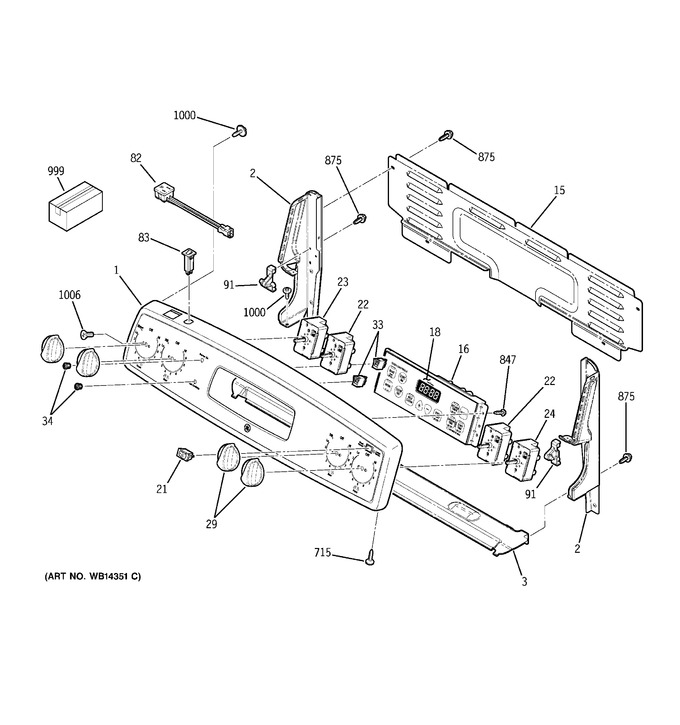

SELECT A DIAGRAM

1 - Control Panel


2 - Cooktop


3 - Body Parts


4 - Door


5 - Door Lock


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB36T11105		Trim & Bracket Asm		Appelez-nous	-
2	WB36T11040		Plate End Lt (bk)		Appelez-nous	-
2	WB36T11039		Plate End Rt (bk)		Appelez-nous	-
3	WB02T10391		Shield Heat Bkgd		Appelez-nous	-
15	WB02T10392		Cover Control		Appelez-nous	-
16	WG02F16063		Control Oven T09   (Replaces: WB27T10817)			Immediately	$ 237.37
18	WB27T11029		Faceplate Graphics (bk)		Appelez-nous	-
21	WG02F05051		Switch Rocker (elem)   (Replaces: WB24T10049)				$ 68.39
22	WG02F04021		Control Surf Elem   (Replaces: WB24T10145)			Immediately	$ 155.16
23	WG02F04022		Control Surf Elem   (Replaces: WB24T10146)			Immediately	$ 59.78
24	WG02F04019		Inf Sw Cntl   (Replaces: WB24T10058)			Immediately	$ 188.11
29	WG02A04084		Knob Infinite (bk)   (Replaces: WB03T10281)				$ 158.95
33	WB27T10628		Light Indicator		Appelez-nous	-
34	WG02F04386		Lens   (Replaces: WB25T10041)			Immediately	$ 4.43
82	WB08T10032		Receptacle (bk)		Appelez-nous	-
83	WB08T10033		Breaker Receptacle		Appelez-nous	-
91	WB10T10116		Pin Rangetop Hinge		Appelez-nous	-
715	WD2X433		Screw 8-18 Bt Tr 5/16 S		Appelez-nous	-
847	WB1X537		Screw		Appelez-nous	-
875	WB01T10046		Scr 8-18 Ab Hw 9/16 Blk		Appelez-nous	-
875	WG04A00781		Screw 8-18 Ab Hxw 3/8   (Replaces: WH2X930)			Immediately	$ 3.97
999	31-10482		Instruction Install		Appelez-nous	-
999	31-10617		Instr Install Ovn Door		Appelez-nous	-
999	29-5560		Manual Use & Care		Appelez-nous	-
999	WB02X11121		Cleaner Glass		Appelez-nous	-
999	31-14603		Manual Mini & Wd Asm		Appelez-nous	-
999	31-10620		Instruction Install		Appelez-nous	-
1000	WB01T10016		Scr 8-18 Ab Hxw 5/8 S		Appelez-nous	-
1006	WB01T10053		Scr 8-32 Tpt Flr .270		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
