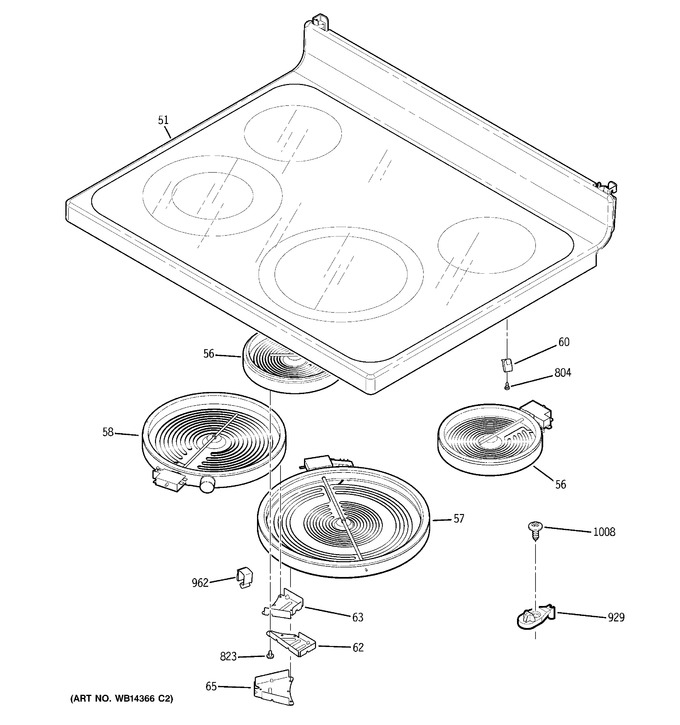

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 51 | WB62T10650 | Rangetop Glass Asm |
|
- | |||||
| 56 | WG02F04329 | Element Haliant 6 In (Replaces: WB30T10125) |
|
Immediately | $ 107.19 | ||||
| 57 | WG02F04090 | Element Haliant 8 In (Replaces: WB30T10128) |
|
Immediately | $ 128.06 | ||||
| 58 | WS01F01177 | Element Radiant 9 Dual (Replaces: WB30T10133) |
|
Immediately | $ 114.71 | ||||
| 60 | WS01A00689 | Radiant Element Spring (Replaces: WB09T10002) |
|
$ 3.97 | |||||
| 62 | WB02T10279 | Bracket Radiant Element |
|
- | |||||
| 63 | WB02T10041 | Radiant Element Bracket |
|
- | |||||
| 65 | WB02T10280 | Bracket Radiant Element |
|
- | |||||
| 804 | WB02T10324 | Scr 6-20 Gxb Ihxw 3/8 Ni |
|
- | |||||
| 823 | WB1X1425 | Screw St8abx.250rd Ni |
|
- | |||||
| 929 | WB02T10026 | Maintop Strike |
|
- | |||||
| 962 | WB02T10177 | Clip Cable |
|
- | |||||
| 1008 | WB1X5904 | Scr 8-18 Ba Por 3/4 Sn |
|
- |
