SELECT A DIAGRAM

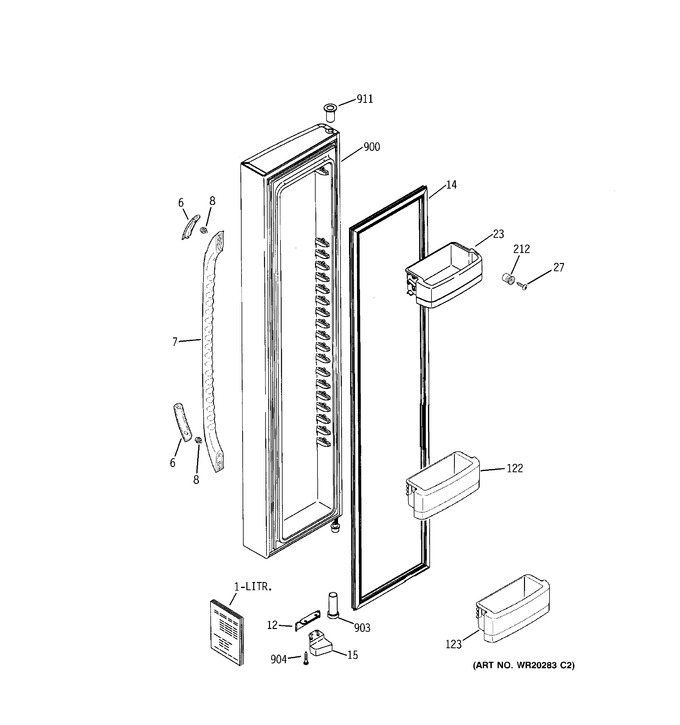

1 - Freezer Door


2 - Fresh Food Door


3 - Freezer Section


4 - Evaporator Instructions


5 - Freezer Shelves


6 - Ice Maker & Dispenser


7 - Fresh Food Section


8 - Fresh Food Shelves


9 - Sealed System & Mother Board


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-46223		Pm Mini Wiring Manual		Appelez-nous	-
1	49-60485		Pm Guide Owners		Appelez-nous	-
6	WR12X10818		Cap Handle		Appelez-nous	-
7	WR12X10823		Handle Sxs Door Bq		Appelez-nous	-
8	WR02X12255		Scr 5/16-18 Rnp		Appelez-nous	-
12	WR02X10786		Stop Door Bq		Appelez-nous	-
14	WR01L02185		Gasket Door Fz Wh   (Replaces: WR24X10156)				$ 62.92
15	WR02X10638		Cam Closure Fz Wh		Appelez-nous	-
23	WR01L00038		Module Shelf Fz Fixed   (Replaces: WR71X10254)				$ 26.67
27	WR01X10857		Scr 8-18 Ab Flp 7/8 S		Appelez-nous	-
122	WR01L02896		Module Shelf Fz   (Replaces: WR71X10291)				$ 24.03
123	WR71X10501		Module Shelf Fz Fixed		Appelez-nous	-
212	WR02X10689		Grommet Base Grille		Appelez-nous	-
900	WR78X12137		Door Foam Asm Fz		Appelez-nous	-
903	WR01X10237		Thimble Door Btm Fz Bq		Appelez-nous	-
904	WR01X10582		Scr 10-16		Appelez-nous	-
911	WR01X10236		Thimble Door Top Bq		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
