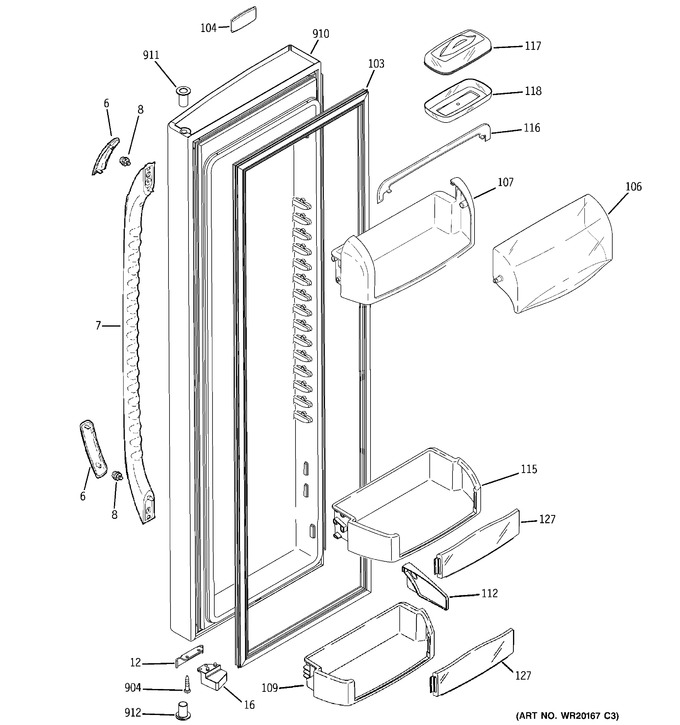

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	WR12X10818		Cap Handle		Appelez-nous	-
7	WR12X10823		Handle Sxs Door Bq		Appelez-nous	-
8	WR02X12255		Scr 5/16-18 Rnp		Appelez-nous	-
12	WR02X10786		Stop Door Bq		Appelez-nous	-
16	WR02X10637		Cam Closure Ff Wh		Appelez-nous	-
103	WR24X10155		Gasket Door Ff Wh		Appelez-nous	-
104	WR04X10108		Nameplate Ge		Appelez-nous	-
106	WR01L01269		Door Dairy Clear   (Replaces: WR22X10042)				$ 54.95
107	WR22X10041		Compartment Dairy		Appelez-nous	-
109	WR71X10608		Module Shelf Ff Asm		Appelez-nous	-
109	WR01L02880		Module Shelf Ff   (Replaces: WR71X10605)				$ 34.93
112	WR01L04421		Snugger Module   (Replaces: WR02X10582)			Immediately	$ 28.58
115	WR01L00078		Module Shelf Ff   (Replaces: WR71X10607)			Immediately	$ 59.15
116	WR22X10043		Trim Dairy Compartment		Appelez-nous	-
117	WR22X10059		Lid Dish Butter		Appelez-nous	-
118	WR22X10058		Dish Butter		Appelez-nous	-
127	WR01L00085		Module Shelf Insert   (Replaces: WR71X10764)			Immediately	$ 10.63
904	WR01X10582		Scr 10-16		Appelez-nous	-
910	WR78X12136		Door Foam Asm Ff		Appelez-nous	-
911	WR01X10236		Thimble Door Top Bq		Appelez-nous	-
912	WR01X10235		Thimble Door Btm Bq		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
