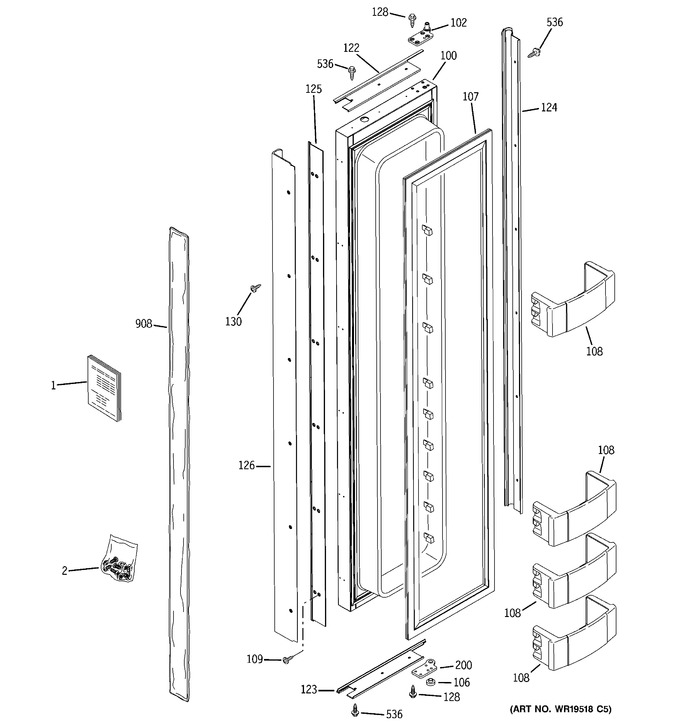

SELECT A DIAGRAM

10 - Case Parts


1 - Freezer Door


2 - Machine Compartment


3 - Fresh Food Door


4 - Freezer Section


5 - Freezer Shelves


6 - Ice Maker & Dispenser


7 - Fresh Food Section


8 - Fresh Food Shelves


9 - Quick Chill


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-46119		Installation Instruction		Appelez-nous	-
1	31-51747		Pm Mini Manual		Appelez-nous	-
1	49-60559-1		Owners Manual		Appelez-nous	-
2	WR01X10304		Hardware Pack		Appelez-nous	-
100	WR78X12143		Door Cmp Asm Fz Sxs Nd		Appelez-nous	-
102	WR13X10238		Top Sxs Fz Door Hinge As		Appelez-nous	-
106	WR01X10297		Fz Bottom Hinge Bushing		Appelez-nous	-
107	WR24X10204		Gasket Door		Appelez-nous	-
108	WR71X10426		Reg Bin Asm		Appelez-nous	-
109	WR01X10303		Handle Trim Screw		Appelez-nous	-
122	WR38X10326		Door Trim Fz Top		Appelez-nous	-
123	WR38X10327		Door Trim Fz Btm		Appelez-nous	-
124	WR38X10270		Door Trim Fz Side		Appelez-nous	-
125	WR38X10271		Handle Trim		Appelez-nous	-
126	WR01L06145		Handle   (Replaces: WR12X10526)				$ 179.10
128	WR1X1754		Screw 12-24		Appelez-nous	-
130	WG03A00448		Trim Screw   (Replaces: WR1X2130)				$ 4.20
200	WR13X10657		Hinge Door Btm		Appelez-nous	-
536	WR01X10188		Screw Trim (self Drillin		Appelez-nous	-
908	WR02X11839		Ps Custom Handle Cvr		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
