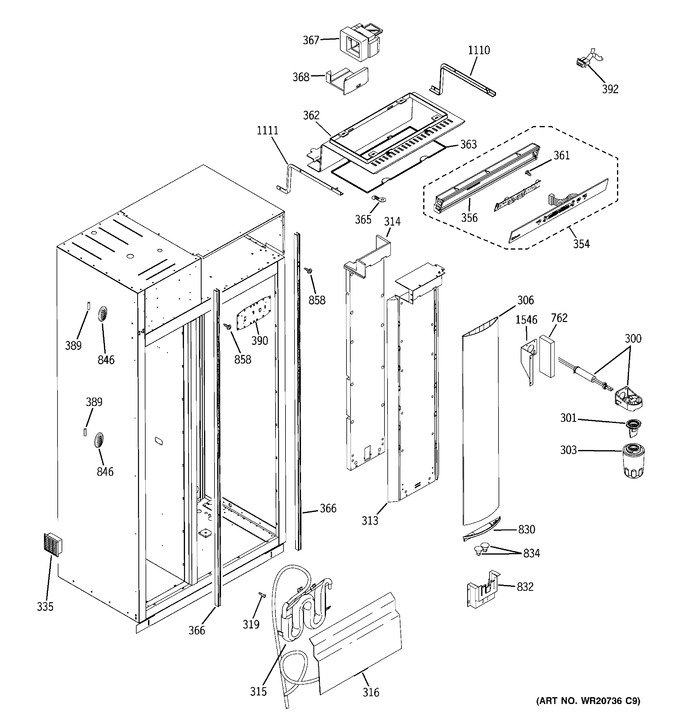

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 300 | WR02X13046 | Water Filter & Head Asm |
|
- | |||||
| 301 | WG03L10111 | Cap Filter Bypass (Replaces: WR02X11705) |
|
Immediately | $ 19.97 | ||||
| 303 | PMMWF | Water Filt Ref Cyst (Replaces: MWF) |
|
Immediately | $ 81.88 | ||||
| 306 | WR17X12620 | Light Column Asm 36/42fz |
|
- | |||||
| 313 | WR17X12532 | Airtower Ff 36 |
|
- | |||||
| 314 | WR02X13317 | Foam Airtower Asm |
|
- | |||||
| 315 | WG03F00679 | Water Tank Asm (Replaces: WR17X11176) |
|
$ 180.17 | |||||
| 316 | WR02X13165 | Cover Water Tank |
|
- | |||||
| 335 | WR02X11199 | Qc Inlet Duct Fz |
|
- | |||||
| 354 | WR55X10850 | Hmi Asm 36 Non Disp |
|
- | |||||
| 356 | WR74X10250 | Housing Control |
|
- | |||||
| 361 | WR02X11200 | 4-40 X 1/4 Ph Sms |
|
- | |||||
| 362 | WR17X12820 | Bracket Ceiling |
|
- | |||||
| 363 | WR02X12834 | Ceiling Light Shield |
|
- | |||||
| 365 | WR02X11203 | Latch Light Shield |
|
- | |||||
| 366 | WR17X12524 | Track Ff Shelf |
|
- | |||||
| 367 | WR02X12832 | Damper Foam Asm 36 |
|
- | |||||
| 368 | WR02X13318 | Wedge Foam Damper |
|
- | |||||
| 389 | WR55X10030 | Sensor Temperature |
|
- | |||||
| 390 | WR55X11007 | Board Led Light Asm |
|
- | |||||
| 392 | WR23X10607 | Harness Hmi Ff Sxs |
|
- | |||||
| 762 | WR14X10296 | Foam Strip Front |
|
- | |||||
| 830 | WR12X10922 | Bulb Housing Asm 36ff |
|
- | |||||
| 832 | WR17X12546 | Bulb Housing Asm 36/42fz |
|
- | |||||
| 834 | WR02X11183 | Halogen Bulb Light Colum |
|
- | |||||
| 846 | WR01L04066 | Grille Sensor (Replaces: WR02X10647) |
|
$ 3.97 | |||||
| 858 | WR01X10840 | Scr 10-24 F Pnp 1.25s |
|
- | |||||
| 1110 | WR01X10927 | Trim Ceiling Bracket Rh |
|
- | |||||
| 1111 | WR01X10928 | Trim Ceiling Bracket Lh |
|
- | |||||
| 1546 | WR02X12828 | Water Filter Bracket |
|
- |
