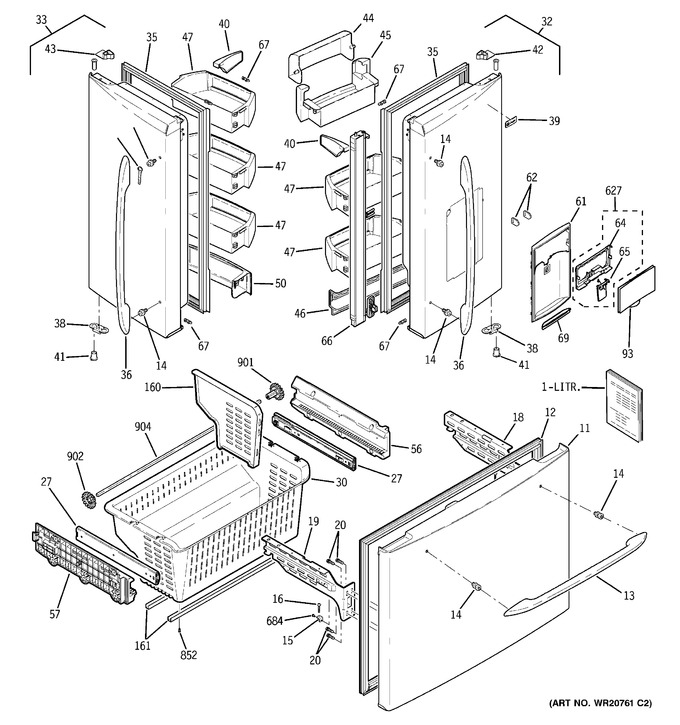

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-51804		Pm Mini Manual Wiring		Appelez-nous	-
1	49-60609		Pm Guide Owners		Appelez-nous	-
11	WR78X12652		Door Foam Asm Fz Bowed		Appelez-nous	-
12	WR01L02088		Gasket   (Replaces: WR14X10331)			Immediately	$ 154.00
13	WR12X10858		Handle Hydroform Fz Asm		Appelez-nous	-
14	WR01A00257		Fastener Handle Ss   (Replaces: WR01X10680)				$ 15.78
15	WR02X12870		Bracket Support		Appelez-nous	-
16	WR01X10843		Screw Bracket Support		Appelez-nous	-
18	WR02X13378		Bracket Slide Lwr Rh 21		Appelez-nous	-
19	WR02X13379		Bracket Slide Lwr Lh 21		Appelez-nous	-
20	WR01A00633		Scr 1/4-20 Rt Flat 3/4 S   (Replaces: WR01X10885)				$ 3.97
27	WR01A01822		Slide Lower Asm 21   (Replaces: WR17X12855)				$ 123.50
30	WR21X10225		Basket Lower Sd		Appelez-nous	-
32	WR78X12163		Door Foam Asm Fr Bw Rh		Appelez-nous	-
33	WR01L01450		Door Foam Asm Fr Bw Lh   (Replaces: WR78X12161)				$ 201.50
35	WR01L02134		Gasket French With Flap   (Replaces: WR14X10305)			Immediately	$ 98.12
36	WR12X10781		Handle Asm Hydroform Ff		Appelez-nous	-
38	WR02X12697		Stop Door Bm		Appelez-nous	-
39	WR01L02772		Lens Name Plate   (Replaces: WR04X10161)				$ 12.31
40	WR01L04421		Snugger Module   (Replaces: WR02X10582)			Immediately	$ 31.76
41	WR02X12698		Thimble Door Ff		Appelez-nous	-
42	WR02X12699		Cam Ff Closure Rh		Appelez-nous	-
43	WR02X12700		Cam Ff Closure Lh		Appelez-nous	-
44	WR01L01271		Door Dairy Clear   (Replaces: WR02X12364)				$ 71.23
45	WR01L00665		Compartment Dairy   (Replaces: WR71X10871)				$ 25.11
46	WR17X12271		Beverage Rack		Appelez-nous	-
47	WR71X10875		Module Shelf Asm Ff		Appelez-nous	-
50	WR01L02892		Module Shelf Ff Fixed   (Replaces: WR17X12830)				$ 63.60
56	WR02X13380		Rail Holder Fz Lwr Rh 21		Appelez-nous	-
57	WR02X13381		Rail Holder Fz Lwr Lh 21		Appelez-nous	-
61	WR38X10444		Trim Disp And Bs Pcb Asm		Appelez-nous	-
62	WR01F01935		Wedge   (Replaces: WR02X12437)				$ 6.47
64	WR01L04374		Shield Dispenser   (Replaces: WR17X12280)			Immediately	$ 65.23
65	WR17X12838		Paddle Dispenser		Appelez-nous	-
66	WR17X12759		Articulation Mullion Asm		Appelez-nous	-
67	WR02X12473		Bumper French Door		Appelez-nous	-
69	WR17X12761		Grill Recess		Appelez-nous	-
93	WR55X10967		Interface Dispenser Asm		Appelez-nous	-
160	WR02X13382		Divider Basket Bottom 21		Appelez-nous	-
161	WR02X13383		Stiffner		Appelez-nous	-
627	WR17X12762		Shield And Paddle Asm		Appelez-nous	-
684	WR01X10602		Scr 8-32 Ab Ihws 3/8 S		Appelez-nous	-
852	WR01A00686		Scr 8-18 Ab Pnp 5/8 S   (Replaces: WR01X10858)				$ 3.97
901	WR01F00845		Gear Pinion Rh   (Replaces: WR02X13387)			Immediately	$ 10.12
902	WR01F00844		Gear Pinion Lh   (Replaces: WR02X13384)				$ 9.53
904	WR02X13388		Cross Bar Pinion		Appelez-nous	-
