1 - Doors


2 - Freezer Section


3 - Freezer Shelves


4 - Fresh Food Section


5 - Fresh Food Shelves


6 - Case Parts


7 - Machine Compartment


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
112	WR01F03225		Screw Hinge Cover   (Replaces: WR01X10379)				$ 3.97
119	WR02X12703		Grille Base Cover		Appelez-nous	-
120	WR01X10613		Scr 8-18 Ab Pnt20 7/16 S		Appelez-nous	-
121	WR01X10629		Scr 8-18 Ab Hw 1/2 S		Appelez-nous	-
123	WR01A00968		Support Shelf   (Replaces: WR02X12187)			Immediately	$ 3.97
124	WR13X10432		Center Hinge Asm Rh		Appelez-nous	-
125	WR01A00659		Scr 12-24 Tt Hxt20 .90 S   (Replaces: WR01X10690)				$ 6.09
126	WR01F01731		Sensor Humidity   (Replaces: WR02X12711)			Immediately	$ 93.17
127	WR17X12443		Housing Humidity Sensor		Appelez-nous	-
128	WR01F01732		Sensor Humidity Asm   (Replaces: WR55X10748)				$ 132.44
130	WR13X10433		Center Hinge Asm Adj Lh		Appelez-nous	-
133	WR01A00465		Pin Hinge Adj Bm   (Replaces: WR01X10793)			Immediately	$ 33.35
134	WR02X12587		Support Water Line		Appelez-nous	-
135	WR02X12590		Cover Hinge		Appelez-nous	-
136	WR02X13059		Clip Locking		Appelez-nous	-
179	WR01A00582		Spring Closure   (Replaces: WR01X10827)			Immediately	$ 4.17
180	WR02X12704		Cap Corner Oc		Appelez-nous	-
181	WR01L02983		Mobility Front Asm   (Replaces: WR02X12334)				$ 15.28
183	WR01X10609		Screw Mobility		Appelez-nous	-
195	WR17X12424		Separator Air Hiside		Appelez-nous	-
196	WR01A00683		Scr 8-18 Ab Ihxw 9/16 S   (Replaces: WR01X10588)				$ 3.97
208	WR01A00718		Screw Leveling   (Replaces: WR01X10686)				$ 4.20
209	WR02X12378		Bracket Leg Asm		Appelez-nous	-
226	WG03F09086		Switchlight   (Replaces: WR23X10143)			Immediately	$ 11.12
246	WR02X12705		Cover Hinge Top Rh		Appelez-nous	-
247	WR02X12706		Cover Hinge Top Lh		Appelez-nous	-
248	WR01X10792		Scr 12-24 Tt Hx 7/8 S		Appelez-nous	-
249	WR13X10566		Hinge Closure Asm		Appelez-nous	-
260	WR13X10565		Hinge Closure Asm		Appelez-nous	-
268	WR55X10711		Sensor Temperature		Appelez-nous	-
274	WR02X12685		Striker Top Mullion		Appelez-nous	-
275	WR02X12684		Cover Top Striker		Appelez-nous	-
306	WR02X12271		Screw Mobility		Appelez-nous	-
824	WR01L02290		Grille Sensor   (Replaces: WR02X13224)			Immediately	$ 3.97
852	WR01A00686		Scr 8-18 Ab Pnp 5/8 S   (Replaces: WR01X10858)				$ 3.97
874	WR01A01063		Washer Hinge   (Replaces: WR01X10855)				$ 9.53

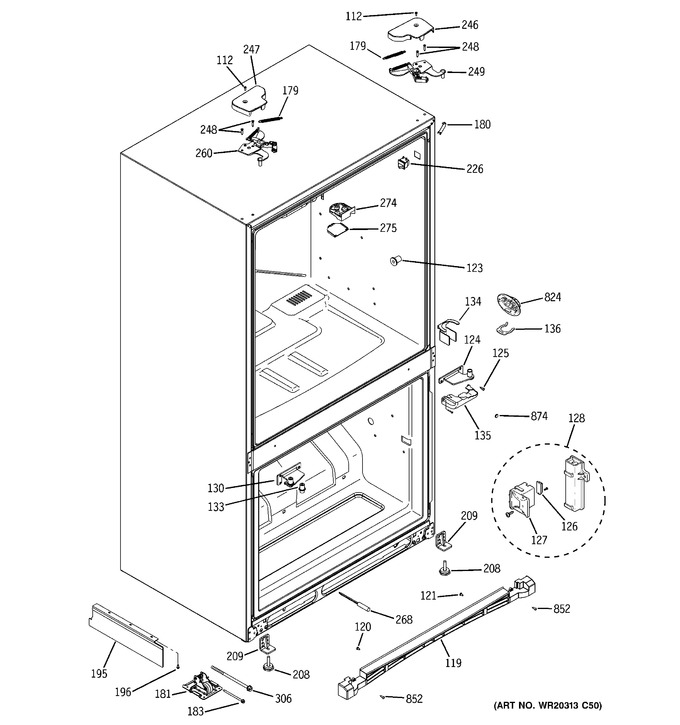

    View Diagram in Separate Window       Print Part List
