Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 49-60637 Pm Guide Owners Appelez-nous -
1 31-51622 Pm Mini Manual Wiring Appelez-nous -
2 WR02X12257 Scr 4-10 Pl Pnp 3/4 Ss Appelez-nous -
6 WR01A01440 Set Screw   (Replaces: WR01X10450) Special Order $ 9.53

7 WR12X10698 Handle Asm Appelez-nous -
9 WR01A00255 Fastener Handle Ss   (Replaces: WR02X12028) In-Stock Immediately $ 15.88

12 WR01A01018 Stop Door Bk   (Replaces: WR02X10782) Special Order $ 39.70

14 WR24X10251 Gasket Appelez-nous -
15 WR02X10780 Cam Closure Fz Bk Appelez-nous -
31 WR17X12495 Grill Recess Appelez-nous -
36 WR01F01784 Solenoid Asm   (Replaces: WR62X10055) Special Order $ 88.99

45 WR2X8818 Retainer Recess Door Appelez-nous -
55 WR01F00145 Board Asm Disp Lighting   (Replaces: WR55X10899) Special Order $ 15.88

58 WR17X12902 Housing Shield Disp Appelez-nous -
62 WR01L01914 Door Recess Asm   (Replaces: WR17X11653) Special Order $ 65.21

63 WR02X12059 Spring Recess Door Appelez-nous -
67 WR01L00934 Crank Door Recess   (Replaces: WR17X11953) Special Order $ 17.01

69 WR01F00833 Funnel Ice Disp   (Replaces: WR17X12120) Special Order $ 54.09

70 WR17X12494 Paddle Ice Disp Appelez-nous -
72 WR01F03637 Switch   (Replaces: WR23X10224) In-Stock Immediately $ 17.47

74 WR01A00922 Spring Torsion   (Replaces: WR02X12256) Special Order $ 23.82

80 WR01F02845 Union Connector Reg   (Replaces: WR02X11330) In-Stock Immediately $ 19.06

93 WR55X11039 Interface Disp Asm Appelez-nous -
122 WR71X10651 Module Support Fz Appelez-nous -
123 WR71X10650 Module Shelf Fz Appelez-nous -
124 WR71X10652 Module Support Fz Appelez-nous -
125 WR21X10117 Basket Wire Tiltout Fz Appelez-nous -
126 WR21X10118 Basket Wire Tiltout Fz Appelez-nous -
854 WR23X10695 Harness Recess Disp Appelez-nous -
900 WR78X12662 Door Foam Asm Fz Appelez-nous -
903 WR01X10234 Thimble Door Btm Fz Bk Appelez-nous -
904 WR01X10582 Scr 10-16 Appelez-nous -
911 WR01X10233 Thimble Door Top Bk Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

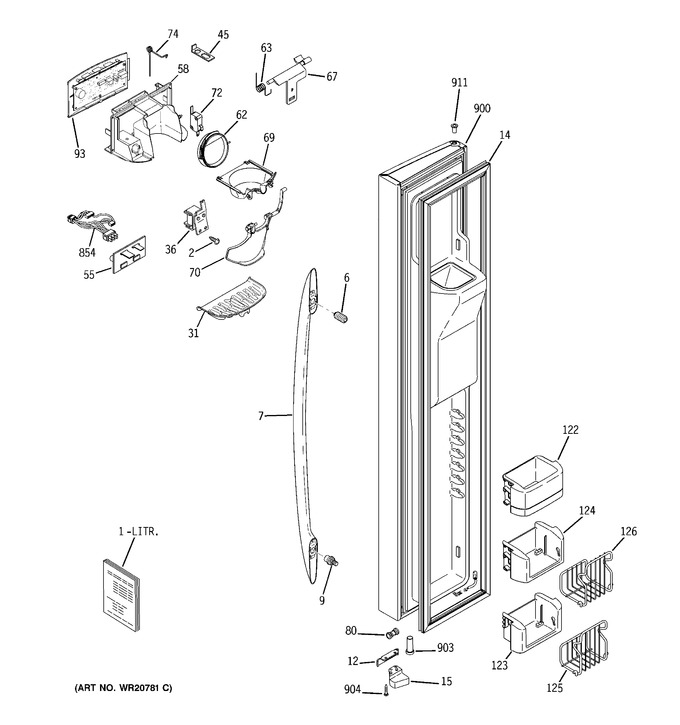

Diagram for PSSS3RGZBSS
