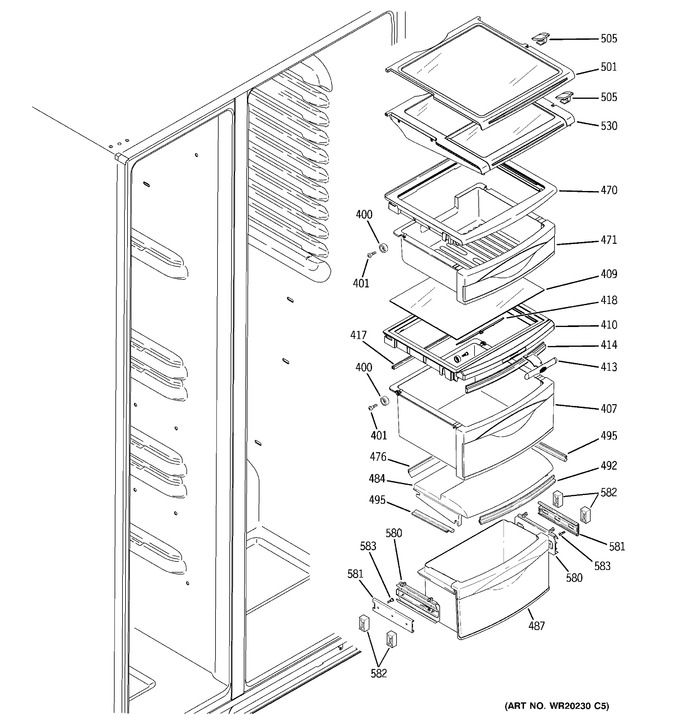

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
400	WR01F01728		Wheel Pan Cover   (Replaces: WR01X10209)				$ 3.97
401	WR01X10583		Scr 10-16		Appelez-nous	-
407	WR01L09630		Pan Asm Md   (Replaces: WR32X10343)			Immediately	$ 74.88
409	WR01L01062		Glass Pan Covr   (Replaces: WR32X10156)				$ 55.98
410	WR01L11328		Cover Middle Pan   (Replaces: WR32X10151)				$ 50.72
413	WR02X10650		Humidity Control		Appelez-nous	-
414	WR01L04170		Gasket Pan Crv Front   (Replaces: WR14X10059)				$ 7.94
417	WR14X10058		Gasket Pan Crv Rear		Appelez-nous	-
418	WR02X10633		Slide Middle Pan Cover		Appelez-nous	-
470	WR32X10566		Cover Top Pan Asm		Appelez-nous	-
471	WR32X10338		Pan Asm Top		Appelez-nous	-
476	WR14X10169		Gasket Pan Cvr Front		Appelez-nous	-
484	WR32X10436		Cover Pan Asm		Appelez-nous	-
487	WR32X10506		Pan Frame Asm		Appelez-nous	-
492	WR14X10105		Seal Front Chill		Appelez-nous	-
495	WR14X10160		Seal Sides Chill		Appelez-nous	-
501	WR71X10262		Shelf Slideout Asm		Appelez-nous	-
505	WR01A00596		Stop Shelf   (Replaces: WR02X10662)				$ 28.59
530	WR01L04356		Shelf Tuckaway Asm   (Replaces: WR71X10613)				$ 114.30
580	WR72X10194		Slide And Bracket Asm R		Appelez-nous	-
580	WR72X10193		Slide And Bracket Asm L		Appelez-nous	-
581	WR72X10195		Slide Liner		Appelez-nous	-
582	WR72X10239		Spacer		Appelez-nous	-
583	WR01X10629		Scr 8-18 Ab Hw 1/2 S		Appelez-nous	-
