Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WB07T10663 Trim Control (bk) Appelez-nous -
1 WB07T10664 Trim Control (wh) Appelez-nous -
2 WB36T11207 Plate End Lt Appelez-nous -
2 WB36T11205 Plate End Lt Appelez-nous -
2 WB36T11206 Plate End Rt Appelez-nous -
2 WB36T11204 Plate End Rt Appelez-nous -
3 WB02T10468 Shield Heat Bkgd Appelez-nous -
4 WB02T10491 Bracket Membrance Appelez-nous -
15 WB02T10499 Cover Control Appelez-nous -
16 WB27T11150 Control Erc Appelez-nous -
17 WG02F05966 Membrane Keypanel Asm   (Replaces: WB27T11132) Special Order $ 117.97

17 WB27T11131 Membrane Keypanel Asm Appelez-nous -
19 WG02F04019 Inf Sw Cntl   (Replaces: WB24T10058) In-Stock Immediately $ 188.11

21 WB24T10153 Switch Infinite Control Appelez-nous -
22 WG02F04022 Control Surf Elem   (Replaces: WB24T10146) In-Stock Immediately $ 59.78

23 WG02F05778 Switch Infinite Control   (Replaces: WB24T10162) In-Stock Immediately $ 208.13

24 WG02F04021 Control Surf Elem   (Replaces: WB24T10145) In-Stock Immediately $ 148.80

29 WG02L01513 Knob Profile Su   (Replaces: WB03T10078) Special Order $ 39.70

29 WB03T10079 Knob Profile Su Wh Appelez-nous -
30 WB03T10202 Knob Ge S/u (wh) Appelez-nous -
30 WB03T10200 Knob Ge S/u (bk) Appelez-nous -
33 WG02F05618 Light Indicator Asm Lt   (Replaces: WB25T10088) Special Order $ 27.82

33 WG02F05620 Light Indicator Asm Rt   (Replaces: WB25T10090) Special Order $ 32.55

36 WG02F04387 Lens   (Replaces: WB25T10042) Special Order $ 3.97

82 WB08T10032 Receptacle (bk) Appelez-nous -
82 WS01A01850 Receptacle (wh)   (Replaces: WB08T10034) Special Order $ 34.02

83 WB08T10033 Breaker Receptacle Appelez-nous -
83 WB08T10035 Breaker Receptacle Appelez-nous -
91 WB10T10125 Pin Rangetop Hinge Appelez-nous -
715 WD2X433 Screw 8-18 Bt Tr 5/16 S Appelez-nous -
715 WD2X432 Screw 8-18 X 5/16 Bk Appelez-nous -
769 WZ04X0044 Screw Appelez-nous -
804 WB02T10324 Scr 6-20 Gxb Ihxw 3/8 Ni Appelez-nous -
875 WG04A00781 Screw 8-18 Ab Hxw 3/8   (Replaces: WH2X930) In-Stock Immediately $ 3.97

999 29-5667 Manual Use & Care Appelez-nous -
999 31-10679 Instruction Install Appelez-nous -
999 31-14806 Manual Mini & Wd Asm Appelez-nous -
999 WB02X11121 Cleaner Glass Appelez-nous -
1000 WB01T10016 Scr 8-18 Ab Hxw 5/8 S Appelez-nous -
1006 WS01A01257 Scr 8-32 Tpt Flr .215 Sn   (Replaces: WB01T10020) Special Order $ 3.97

1008 WB1X5904 Scr 8-18 Ba Por 3/4 Sn Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

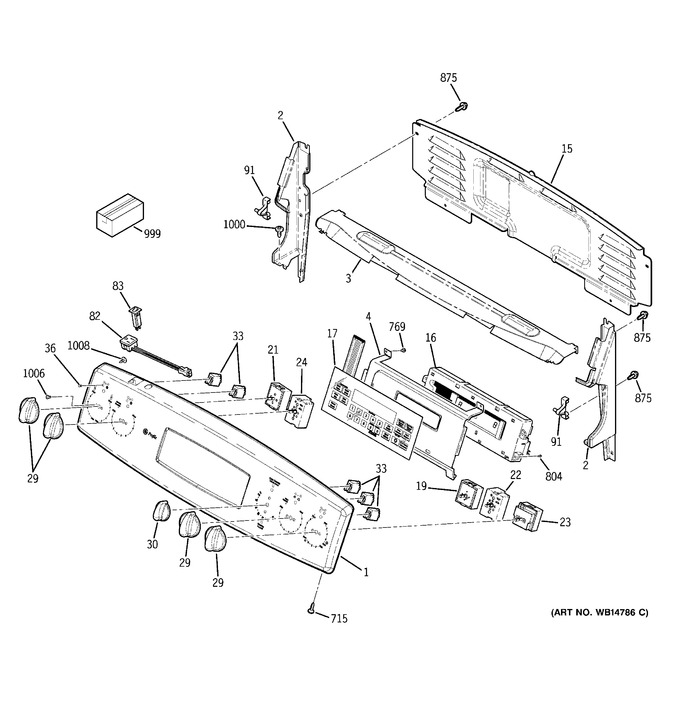

Diagram for PCB909DP2WW
