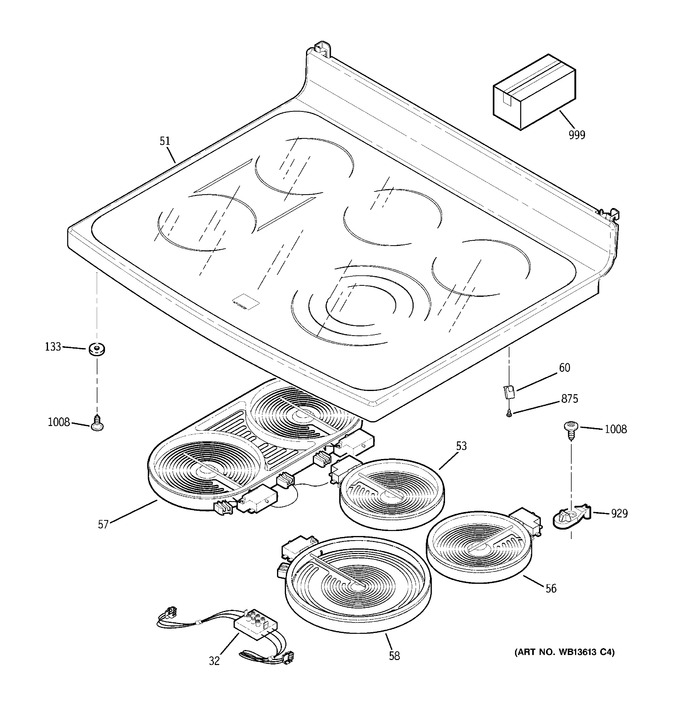

2 - Cooktop
3 - Body Parts
4 - Door
5 - Door Lock
6 - Convection Fan
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 32 | WS01F02056 | Module Indicator Light (Replaces: WB25T10050) |
|
$ 57.27 | |||||
| 51 | WB62T10750 | Maintop & Glass Asm |
|
- | |||||
| 51 | WB62T10749 | Maintop & Glass Asm |
|
- | |||||
| 53 | WS01F01171 | Element Radiant 6 Warmer (Replaces: WB30T10124) |
|
Immediately | $ 60.26 | ||||
| 56 | WG02F04329 | Element Radiant 6 In (Replaces: WB30T10129) |
|
Immediately | $ 107.19 | ||||
| 57 | WS01F01181 | Element Radnt Bridge (Replaces: WB30T10140) |
|
Immediately | $ 175.07 | ||||
| 58 | WG02F02055 | Element Haliant 12 Trpl (Replaces: WB30T10126) |
|
Immediately | $ 203.55 | ||||
| 60 | WS01A03252 | Spring Radiant Element (Replaces: WB09T10013) |
|
Immediately | $ 4.37 | ||||
| 133 | WB01T10021 | Maintop Bumper |
|
- | |||||
| 875 | WG04A00781 | Screw 8-18 Ab Hxw 3/8 (Replaces: WH2X930) |
|
Immediately | $ 3.97 | ||||
| 929 | WB02T10026 | Maintop Strike |
|
- | |||||
| 999 | 31-14806 | Manual Mini & Wd Asm |
|
- | |||||
| 999 | WB02X11121 | Cleaner Glass |
|
- | |||||
| 999 | 29-5667 | Manual Use & Care |
|
- | |||||
| 999 | 31-10679 | Instruction Install |
|
- | |||||
| 1008 | WB1X5904 | Scr 8-18 Ba Por 3/4 Sn |
|
- |
