SELECT A DIAGRAM
1 - Doors
2 - Freezer Section
3 - Freezer Shelves
4 - Fresh Food Section

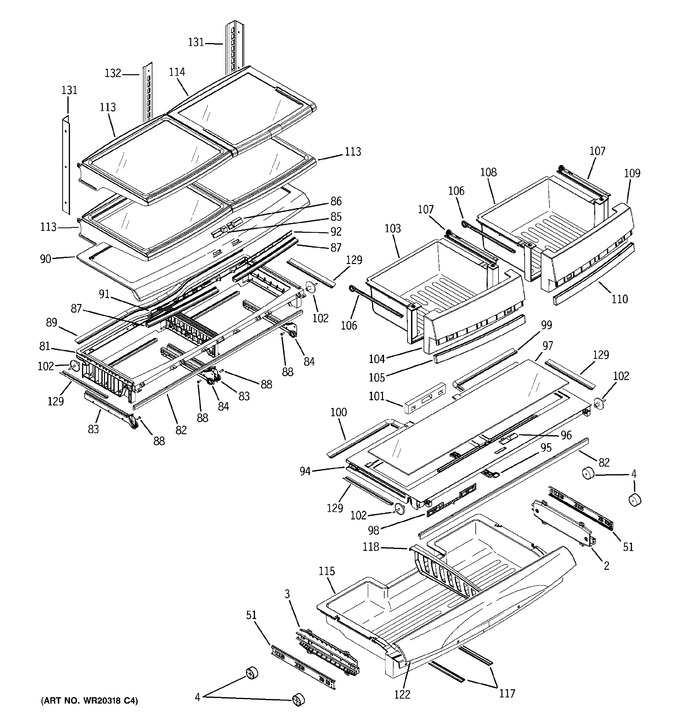

5 - Fresh Food Shelves
6 - Case Parts
7 - Machine Compartment
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WR72X10281 | Slide & Bracket Asm |
|
- | |||||
| 3 | WR72X10282 | Slide & Bracket Asm |
|
- | |||||
| 4 | WR01A00892 | Spacer (Replaces: WR72X10260) |
|
$ 12.40 | |||||
| 51 | WR72X10219 | Slide Liner |
|
- | |||||
| 81 | WR32X10613 | Cover Bottom Veg Pan |
|
- | |||||
| 82 | WR17X12243 | Bar Reinforcement |
|
- | |||||
| 83 | WR72X10225 | Metal Slide Asm |
|
- | |||||
| 84 | WR72X10226 | Metal Slide Asm |
|
- | |||||
| 85 | WR17X12241 | Slide Control Vp Rh |
|
- | |||||
| 86 | WR17X12244 | Slide Control Vp Lh |
|
- | |||||
| 87 | WR14X10214 | Gasket Pan Cvr Front |
|
- | |||||
| 88 | WR01A01034 | Scr 8-10 Pl Pnp 1/2 S (Replaces: WR01X10221) |
|
$ 4.20 | |||||
| 89 | WR14X10215 | Gasket Pan Veg Frame |
|
- | |||||
| 90 | WR01L00903 | Cover Top Veg Pan (Replaces: WR32X10614) |
|
$ 155.84 | |||||
| 91 | WR09X10156 | Damper Vp |
|
- | |||||
| 92 | WR09X10157 | Damper Vp |
|
- | |||||
| 94 | WR01L02031 | Frame Pan Meat (Replaces: WR72X10224) |
|
$ 93.23 | |||||
| 95 | WR01L02792 | Linkage Bar Meat Pan 25 (Replaces: WR02X12419) |
|
$ 18.49 | |||||
| 96 | WR01A00802 | Slide Control Meat Pan (Replaces: WR17X12245) |
|
$ 13.97 | |||||
| 97 | WR01L04229 | Shelf Cant Glass (Replaces: WR32X10615) |
|
$ 66.14 | |||||
| 98 | WR17X12246 | Damper Meat Pan |
|
- | |||||
| 99 | WR14X10217 | Gasket Frame Meat Side |
|
- | |||||
| 100 | WR14X10218 | Gasket Frame Meat Side |
|
- | |||||
| 101 | WR01L02141 | Gasket Inlet Meat Pan (Replaces: WR14X10219) |
|
$ 27.82 | |||||
| 102 | WR01A00975 | Support Veg Pan Asm (Replaces: WR02X12373) |
|
Immediately | $ 4.76 | ||||
| 103 | WR32X10745 | Pan Veg Rear Rh |
|
- | |||||
| 104 | WR01L03068 | Pan Veg Front Rh (Replaces: WR32X10607) |
|
$ 107.61 | |||||
| 105 | WR17X12750 | Handle Pan Veg Rh |
|
- | |||||
| 106 | WR72X10222 | Slide Pan Asm |
|
- | |||||
| 107 | WR72X10223 | Slide Pan Asm |
|
- | |||||
| 108 | WR32X10746 | Pan Veg Rear Lh |
|
- | |||||
| 109 | WR01L03067 | Pan Veg Front Lh (Replaces: WR32X10609) |
|
$ 75.39 | |||||
| 110 | WR17X12751 | Handle Pan Veg Lh |
|
- | |||||
| 113 | WR71X10880 | Shelf Asm Slideout |
|
- | |||||
| 114 | WR71X10881 | Shelf Asm Tuckaway |
|
- | |||||
| 115 | WR32X10806 | Meat Pan 25 |
|
- | |||||
| 117 | WR38X10399 | Trim Bottom Pan Meat |
|
- | |||||
| 118 | WR02X12420 | Divider Pan |
|
- | |||||
| 122 | WR01L00816 | Cover Flip Lid (Replaces: WR17X12257) |
|
$ 68.10 | |||||
| 129 | WR14X10234 | Gasket Pan Veg Frame |
|
- | |||||
| 131 | WR01F01860 | Track Side Ff (Replaces: WR72X10236) |
|
$ 62.61 | |||||
| 132 | WR72X10235 | Track Center Ff |
|
- |
