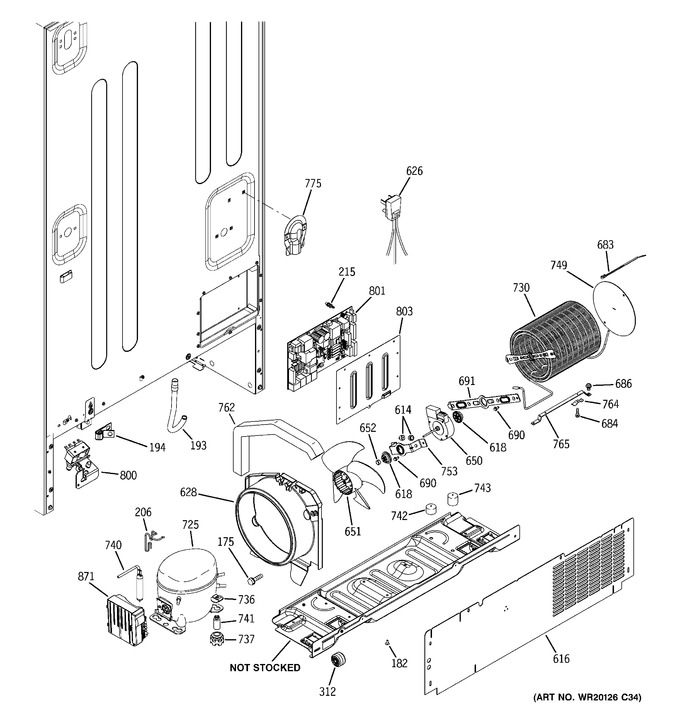

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Doors
2 - Freezer Section
3 - Freezer Shelves
4 - Fresh Food Section
5 - Fresh Food Shelves
6 - Case Parts
7 - Machine Compartment
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 175 | WR01X10035 | Scr 8-18 Ab Ihw 5/8 S |
|
- | |||||
| 182 | WR01X10622 | Scr 10-32 B Ihxw 1/2 |
|
- | |||||
| 193 | WR01F01884 | Tube Drain (Replaces: WR02X11426) |
|
Immediately | $ 36.53 | ||||
| 194 | WR01X10684 | Clamp Cable |
|
- | |||||
| 206 | WR02X12377 | Clip Drain Tube |
|
- | |||||
| 215 | WR02X10663 | Stand Off |
|
- | |||||
| 312 | WG03L06838 | Wheel Mobility Rear (Replaces: WR02X10695) |
|
$ 19.06 | |||||
| 614 | WR01A00163 | Bumper Lid (Replaces: WR02X10540) |
|
Immediately | $ 6.35 | ||||
| 616 | WR01L00714 | Cover Access (Replaces: WR82X10109) |
|
$ 119.45 | |||||
| 618 | WR01A00579 | Grommet Evap Fan (Replaces: WR02X11331) |
|
$ 3.97 | |||||
| 626 | WR23X108 | Power Cord |
|
- | |||||
| 628 | WR01L04391 | Shroud Condenser (Replaces: WR17X12668) |
|
$ 26.20 | |||||
| 650 | WR60X10216 | Motor Dc Cond Fan |
|
- | |||||
| 651 | WR01F02003 | Blade Cond Fan Asm (Replaces: WR60X10206) |
|
$ 11.51 | |||||
| 652 | WG03F01616 | Ring Compression (Replaces: WR02X12149) |
|
$ 3.97 | |||||
| 683 | WR02X11027 | Wire Tie |
|
- | |||||
| 684 | WR01X10602 | Scr 8-32 Ab Ihws 3/8 S |
|
- | |||||
| 686 | WR01X10252 | Scr 10-32 Tt Hxw 5/16 S |
|
- | |||||
| 690 | WR1X1466 | Scr 8-32 T Hxw 3/8 S |
|
- | |||||
| 691 | WR02X10593 | Bracket Cond Fan (rear) |
|
- | |||||
| 725 | WR87X10180 | Inverter Compressor Emb |
|
- | |||||
| 730 | WR01F02892 | Cond Asm Formed (Replaces: WR84X10022) |
|
$ 403.54 | |||||
| 736 | WR2X8203 | Clip Compressor Mount |
|
- | |||||
| 737 | WR01F00846 | Grommet (Replaces: WR02X10099) |
|
$ 7.15 | |||||
| 740 | WG03A03157 | Dryer Bifurcated Xh9 (Replaces: WR86X96) |
|
Immediately | $ 153.40 | ||||
| 741 | WR1X1779 | Stud Mtg Compr |
|
- | |||||
| 742 | WR02X10587 | Support Condenser |
|
- | |||||
| 743 | WR02X10588 | Support Condenser |
|
- | |||||
| 749 | WR17X11039 | Baffle Cond Air |
|
- | |||||
| 753 | WR02X10521 | Brkt Cond Fan (mtg) |
|
- | |||||
| 762 | WR14X10053 | Foam Strip Se Adh |
|
- | |||||
| 764 | WR2X9000 | Clip, Cond Mnt |
|
- | |||||
| 765 | WR17X10695 | Bracket Condenser Bar |
|
- | |||||
| 775 | WR17X10796 | Cover Water Line |
|
- | |||||
| 800 | WR57X10048 | Valve And Tube Asm |
|
- | |||||
| 801 | WR01F00291 | Board Main Combined Hmi (Replaces: WR55X11024) |
|
Immediately | $ 435.93 | ||||
| 803 | WR02X12025 | Main Board Enclosure Asm |
|
- | |||||
| 871 | WG04A00766 | Inverter Asm (Replaces: WR55X10979) |
|
Immediately | $ 542.82 | ||||
| WR01F01730 | Sensor Temp Ff |
|
Immediately | $ 15.72 | |||||
| WR01F01743 | Valve And Tube Asm |
|
$ 83.94 | ||||||
| WG03L10111 | Cap Filter Bypass (Replaces: WG03F00087) |
|
Immediately | $ 19.97 | |||||
| WR01L02559 | Icemaker Asm (Replaces: WR01L02566) |
|
Immediately | $ 136.45 | |||||
| WR01L04393 | Shunt Sensor |
|
Immediately | $ 15.88 | |||||
| WR01L02134 | Gasket French With Flap |
|
Immediately | $ 98.12 | |||||
| WG03F00154 | Compressor Repl Kit (charged) |
|
$ 1,117.00 | ||||||
| WG04A00766 | Inversuer Asm. |
|
Immediately | $ 542.82 | |||||
| WR01F00252 | Board Asm Temp Control |
|
Immediately | $ 186.31 | |||||
| WR01F00291 | Board Main Combined Hmi |
|
Immediately | $ 435.93 | |||||
| WR01F05069 | Motor Dc Evap Fan Asm (Replaces: WR01F01627) |
|
Immediately | $ 94.54 |
