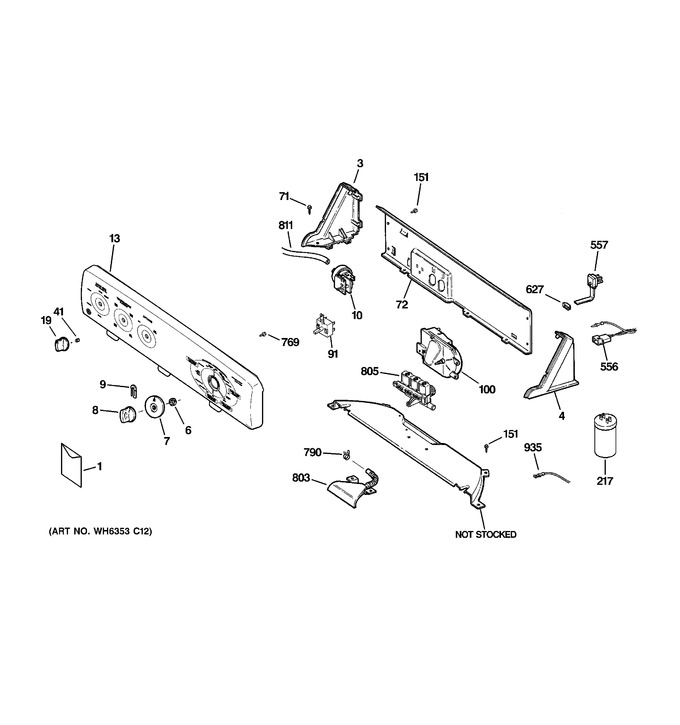

1 - Controls & Backsplash
2 - Cabinet, Cover & Front Panel
3 - Tub, Basket & Agitator
4 - Suspension, Pump & Drive Components
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31-15441 | Pm Instruction Install |
|
- | |||||
| 1 | 31-16640 | Insert Mini Manual |
|
- | |||||
| 1 | 49-90402 | Pm Manual U&c |
|
- | |||||
| 3 | WH42X10634 | Endcap Lh Wh |
|
- | |||||
| 4 | WG03L07694 | Endcap Rh Wh (Replaces: WH42X10633) |
|
$ 66.87 | |||||
| 6 | WG04F03746 | Ring Compression (Replaces: WH02X10093) |
|
$ 3.97 | |||||
| 7 | WG04A00753 | Dial Asm (Replaces: WH11X10049) |
|
Immediately | $ 22.23 | ||||
| 8 | WG04F03734 | Knob Asm Control (Replaces: WH01X10310) |
|
Immediately | $ 19.06 | ||||
| 9 | WG04A00788 | Clip Spring (Replaces: WH1X2117) |
|
Immediately | $ 4.04 | ||||
| 10 | WG04F03766 | Switch Pressure (Replaces: WH12X10476) |
|
Immediately | $ 66.94 | ||||
| 13 | WG04F04488 | Backsplash Asm (Replaces: WH42X10881) |
|
$ 131.95 | |||||
| 19 | WW02F00278 | Knob And Clip Asm (Replaces: WH01X10460) |
|
Immediately | $ 17.61 | ||||
| 41 | WH01X10106 | Clip Knob |
|
- | |||||
| 71 | WH2X1205 | Scr 8-18 B 1/2 Hxw P |
|
- | |||||
| 72 | WH46X10146 | Panel Back Washer |
|
- | |||||
| 91 | WG04F04870 | Switch Rotary Temp. (Replaces: WH12X10477) |
|
Immediately | $ 42.88 | ||||
| 100 | WG04F03792 | Timer Washer (Replaces: WH12X10478) |
|
Immediately | $ 413.05 | ||||
| 151 | WH02X10126 | Scr 8-18 B 1hw 1/2 Sn |
|
- | |||||
| 217 | WG04F03692 | Capacitor Cmrw Ts 45/2 (Replaces: WH12X10462) |
|
Immediately | $ 67.41 | ||||
| 556 | WH12X497 | Housing Terminal |
|
- | |||||
| 557 | WG04F04596 | Cord Power Asm (Replaces: WH19X10068) |
|
$ 59.78 | |||||
| 627 | WH12X10208 | Self Locking Strain Relf |
|
- | |||||
| 769 | WG03A00428 | Scr 8-18 Hi/lo 5/8 (Replaces: WR01X10196) |
|
$ 4.20 | |||||
| 790 | WH1X2036 | Clamp Hose |
|
- | |||||
| 803 | WG04F03731 | Hose & Water Inlet (Replaces: WH41X10077) |
|
Immediately | $ 12.71 | ||||
| 805 | WG04F09765 | Valve Triple Water (Replaces: WH13X10048) |
|
Immediately | $ 140.86 | ||||
| 811 | WG04F03638 | Hose Pressure Switch (Replaces: WH41X365) |
|
Immediately | $ 15.88 | ||||
| 935 | WD1X1434 | Terminal Special |
|
- |
