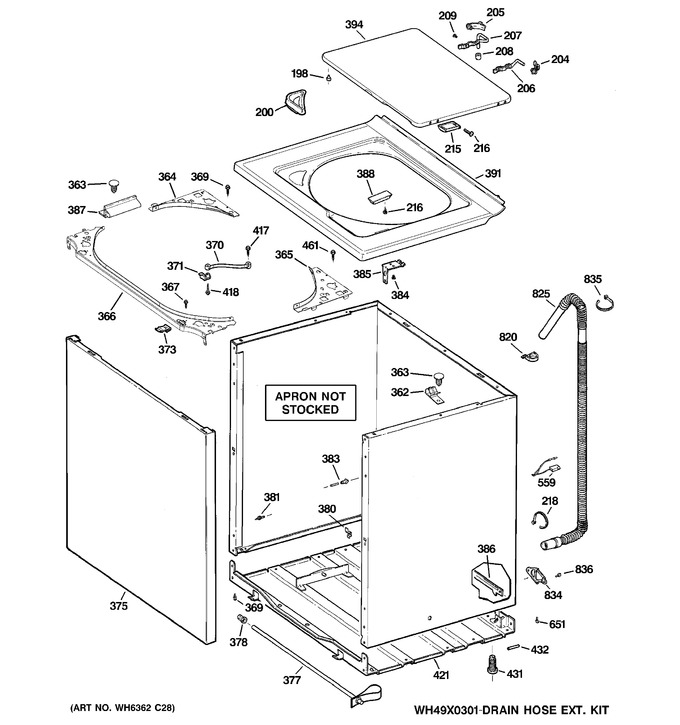

1 - Controls & Backsplash


2 - Cabinet, Cover & Front Panel


3 - Tub, Basket & Agitator


4 - Suspension, Pump & Drive Components


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
198	WH1X2722		Bumper Lid		Appelez-nous	-
200	WG04F00463		Funnel Bleach   (Replaces: WH01X10057)				$ 58.52
204	WG04F03612		Bushing Hinge (single)   (Replaces: WH1X2741)				$ 4.04
205	WH01X10025		Bushing Hinge-front Open		Appelez-nous	-
206	WH1X2740		Wireform Hinge		Appelez-nous	-
207	WH1X2743		Wireform Hinge		Appelez-nous	-
208	WH1X2742		Bumper Hinge		Appelez-nous	-
209	WH2X1211		Screw		Appelez-nous	-
215	WG04F03528		Magnet Housing Asm   (Replaces: WH01X10222)				$ 41.29
216	WH02X10217		Scr 8-16 B Flp .625 Zn		Appelez-nous	-
218	WG04A01362		Wire Tie   (Replaces: WH01X10217)				$ 6.35
362	WH02X10263		Christmas Tree Wire Clip		Appelez-nous	-
363	WH02X10258		Plug Pinetree		Appelez-nous	-
364	WH16X10101		Bracket Apron Left		Appelez-nous	-
365	WH16X10102		Bracket Apron Right		Appelez-nous	-
366	WG04A02898		Bracket Apron Front   (Replaces: WH16X10117)				$ 482.52
367	WH02X10301		Scr 8-18 B 1hw 1/2 Sn		Appelez-nous	-
369	WW01A00097		Scr 8-18 Ab Ihw 7/16 Sn   (Replaces: WH2X1217)				$ 3.97
370	WH01X10046		Strap Damping		Appelez-nous	-
371	WG04F02343		Retainer Strap   (Replaces: WH1X2726)			Immediately	$ 12.71
373	WG04A00398		Clip Locking   (Replaces: WH02X10279)				$ 6.35
375	WG04L01837		Panel & Brace Asm Wh   (Replaces: WH46X10109)				$ 222.28
377	WG04L01526		Bar Shipping   (Replaces: WH46X344)				$ 22.75
378	WH1X2745		Button Plug		Appelez-nous	-
380	WH2X1207		Clip Ground		Appelez-nous	-
381	WH2X1190		Stud Grounding		Appelez-nous	-
383	WH2X1189		Pin Alignment		Appelez-nous	-
384	WH01X10109		Scr 8-15 A 3/4 Sp Hxw		Appelez-nous	-
384	WH01X10423		Scr 6-20 B Trt 3/8 S		Appelez-nous	-
385	WH01X10422		Cover Clip		Appelez-nous	-
386	WG04L01525		Bar Self Leveling   (Replaces: WH46X10094)				$ 49.56
387	WH41X10161		Conduit		Appelez-nous	-
388	WG04F04461		Lid Switch Asm   (Replaces: WH12X10275)			Immediately	$ 74.17
391	WH44X10143		Cover Asm Finished		Appelez-nous	-
394	WH44X10277		Lid Asm Finished		Appelez-nous	-
417	WH2X694		Scr 10-12 A Hx 1/2 S		Appelez-nous	-
418	WH02X10282		Scr 8-18 B Ihw 1 S		Appelez-nous	-
421	WH46X10079		Base Asm		Appelez-nous	-
431	WG04L00346		Leg Leveling   (Replaces: WH2X1187)				$ 6.35
432	WG04A00392		Pin Roll   (Replaces: WH2X1188)				$ 6.35
461	WZ05X0158		Screw 8-32x3/8 Grd Scr		Appelez-nous	-
559	WH12X538		Housing Terminal		Appelez-nous	-
651	WH02X10123		Scr 1/4-20 Tpt 1h 1/2 Sn		Appelez-nous	-
820	WW01A00014		Clip Anti-siphon   (Replaces: WH1X2725)				$ 3.97
825	WG04F00503		Hose Drain External   (Replaces: WH41X10096)			Immediately	$ 74.78
834	WG04A00640		Retainer Hose   (Replaces: WH16X513)			Immediately	$ 4.37
835	WH01X10218		Strap		Appelez-nous	-
836	WH02X10162		Scr 8-18 Ab Ihwp 7/8 S		Appelez-nous	-
