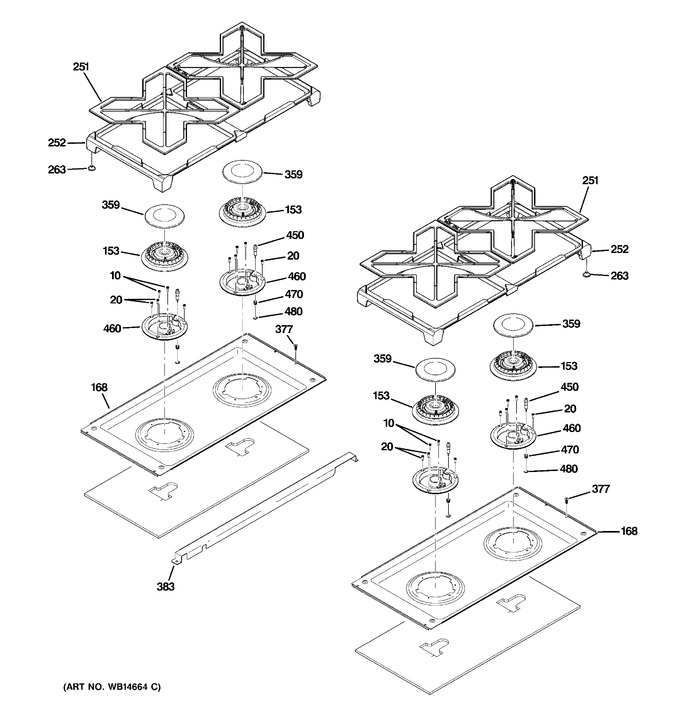

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	WG02A00189		Screw 8-32 Mch Pnt15   (Replaces: WB01T10104)			Immediately	$ 6.35
20	WG02A00081		Screw Simmer Main Hd   (Replaces: WB01T10092)				$ 12.71
153	WG02F11443		Burner Head Asm (18k)   (Replaces: WB16T10043)			Immediately	$ 185.68
168	WS01L00387		Pan Unit   (Replaces: WB49K10016)				$ 71.82
251	WG02L07014		Grate   (Replaces: WB31K10224)			Immediately	$ 215.21
252	WS01L03759		Frame Grate Asm   (Replaces: WB31K10225)				$ 288.39
263	WS01L06133		Foot Grate   (Replaces: WB02K10223)			Immediately	$ 19.06
359	WS01F02596		Cap Burner   (Replaces: WB13T10067)				$ 50.42
377	WB01T10115		Scr 8-18 Ab Hw 1/2 S		Appelez-nous	-
377	WB01K10087		Scr 8-18 Ab Flt15 3/8 Ss		Appelez-nous	-
383	WB02K10274		Cover Center		Appelez-nous	-
450	WG02F00431		Electrode Top   (Replaces: WB13T10065)			Immediately	$ 71.23
460	WG02L00984		Base Burner 18k-simmer   (Replaces: WB16T10047)				$ 141.55
470	WG02F03991		Spring Igniter   (Replaces: WB09T10011)				$ 15.88
480	WG02F03975		Washer Igniter   (Replaces: WB02T10323)				$ 15.88
