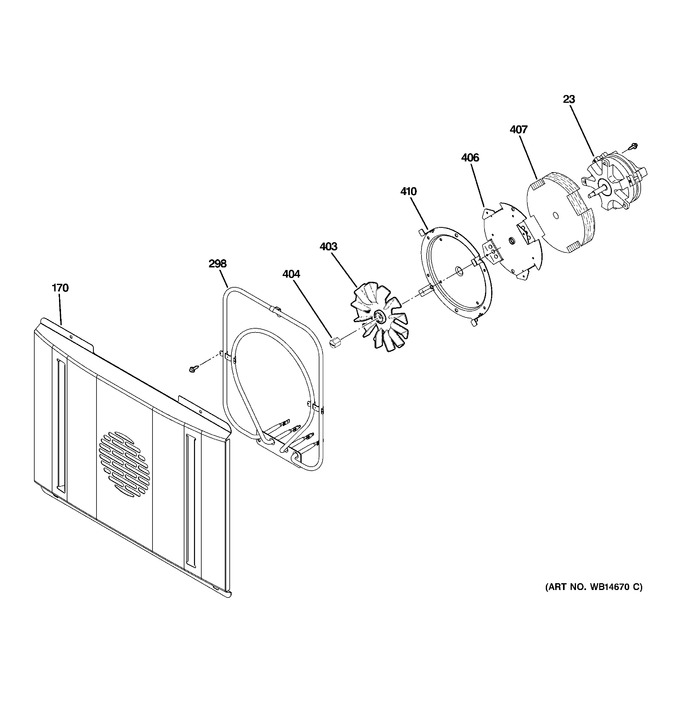

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
23	WG02F02831		Motor Psc Conv   (Replaces: WB26T10037)				$ 169.32
170	WB02K10199		Cover Fan 27"		Appelez-nous	-
298	WB44T10058		Element Convection		Appelez-nous	-
403	WG02F00731		Hub Blade Asm   (Replaces: WB02T10289)			Immediately	$ 36.53
404	WS01A01105		Nut   (Replaces: WB02T10017)			Immediately	$ 9.50
406	WB02T10293		Bracket Convx Mtr Mtg		Appelez-nous	-
407	WB35K10128		Insulation		Appelez-nous	-
410	WB02T10310		Plate Convection		Appelez-nous	-
	WG02F00731		Blade Asm			Immediately	$ 36.53
	WG02F04945		Burner Ir, Monogram				$ 742.08
	WS01F03813		Blower Tangential 45mm				$ 499.71
	WS01F03814		Blower Tangential 45mm			Immediately	$ 326.55
	WS01L01956		Relay Board Asm Rt			Immediately	$ 610.79
	WG02F02831		Motor Psc Conv, Monogram				$ 169.32

    View Diagram in Separate Window       Print Part List
