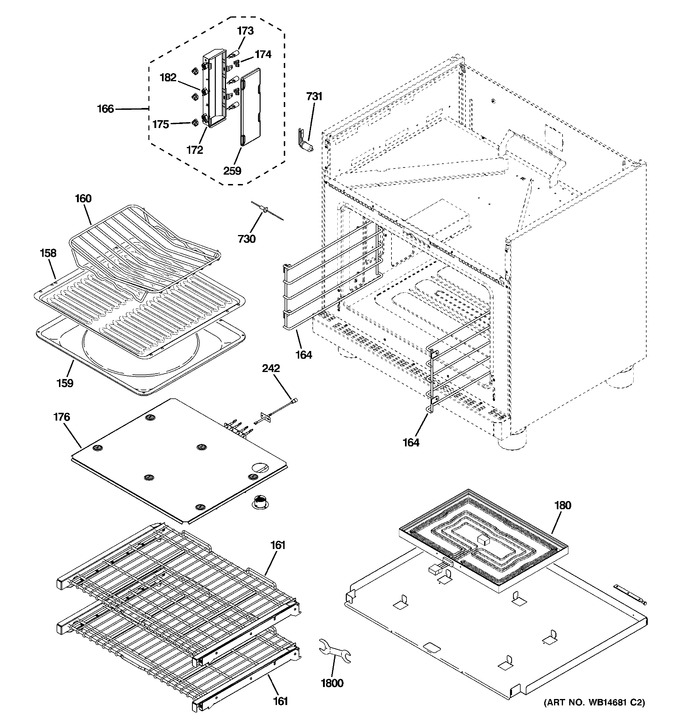

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
158	WB49K10017		Rack Broiler Pan		Appelez-nous	-
159	WB49K10018		Pan Broiler		Appelez-nous	-
160	WB48K10020		Rack Convection Roast		Appelez-nous	-
161	WB48K10022		Rack Oven Slide Asm		Appelez-nous	-
164	WB02K10196		Guide Oven Rack		Appelez-nous	-
166	WB08K10011		Lamp Halogen Asm		Appelez-nous	-
172	WB02T10298		Reflector Light		Appelez-nous	-
173	WG02F00848		Lamp Halogen 20w   (Replaces: WB25T10064)			Immediately	$ 20.65
174	WB02T10297		Clip Retainer Glass		Appelez-nous	-
175	WB02T10300		Cover Base		Appelez-nous	-
176	WS01F02146		Shield Broil Asm   (Replaces: WB44K10027)				$ 243.81
180	WS01F01183		Element Hidden Bake   (Replaces: WB44K10026)				$ 650.45
182	WB02T10299		Base Ceramic G6.35 450c		Appelez-nous	-
242	WS01F02431		Sensor Asm   (Replaces: WB21T10007)			Immediately	$ 30.20
259	WG02L02869		Lens Oven   (Replaces: WB25T10063)				$ 78.41
730	WS01F02632		Probe Thermistor   (Replaces: WB20K10030)			Immediately	$ 93.58
731	WS01F02316		Probe Receptacle   (Replaces: WB20K10032)				$ 135.32
1800	WS01A00252		Wrench   (Replaces: WB02K10265)				$ 14.92
