SELECT A DIAGRAM

1 - Gas & Burner Parts


2 - Control Panel


3 - Cooktop


4 - Body Parts


5 - Oven Cavity Parts


6 - Door Assembly


7 - Door Lock


8 - Convection Fan


9 - Grill Assembly

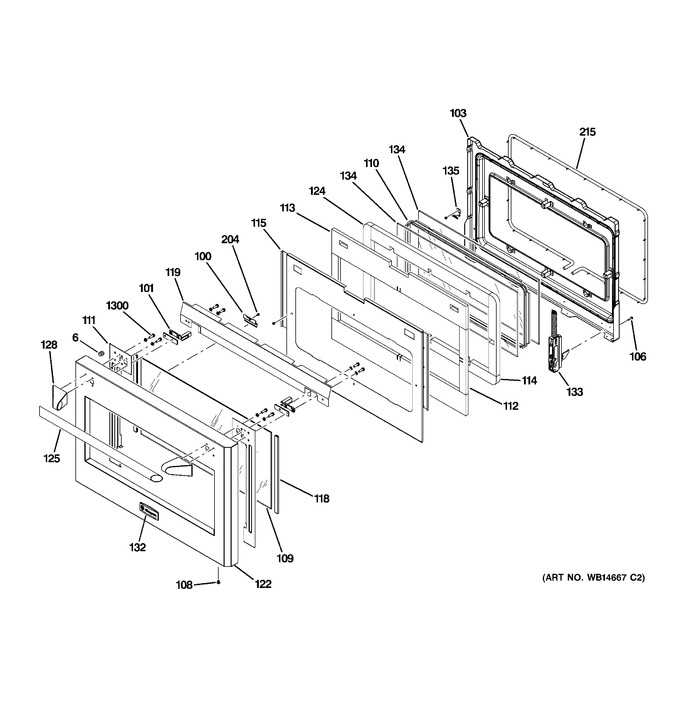

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	WS01F02074		Set Screw   (Replaces: WR02X11754)				$ 15.44
100	WB02K10218		Bracket Glass		Appelez-nous	-
101	WB02K10219		Cap End Extension		Appelez-nous	-
103	WG02L03813		Liner Oven Door Asm   (Replaces: WB55K10064)				$ 181.76
106	WB01K10089		Scr 10-32 Tr T 7/8 S		Appelez-nous	-
108	WS01A01150		Screw (cr)   (Replaces: WB1X5364)				$ 3.97
109	WB57K10139		Glass Door		Appelez-nous	-
110	WB34K10112		Spacer Window		Appelez-nous	-
111	WB07K10304		Support Outer Glass Rt		Appelez-nous	-
111	WB07K10305		Support Outer Glass Lf		Appelez-nous	-
112	WB35K10129		Ft Insul Door Side		Appelez-nous	-
113	WB35K10139		Ft Insul Door Top		Appelez-nous	-
113	WB35K10140		Ft Insul Door Btm		Appelez-nous	-
114	WB35K10141		Rr Insul Door Top		Appelez-nous	-
114	WB35K10142		Rr Insul Door Btm		Appelez-nous	-
115	WB55K10063		Guard Insulation		Appelez-nous	-
118	WB04K10028		Pad Door		Appelez-nous	-
119	WB02K10243		Heat Deflector		Appelez-nous	-
122	WB56K10062		Panel Oven Door		Appelez-nous	-
124	WB35K10132		Rr Insul Door Side		Appelez-nous	-
125	WB15K10092		Bar Handle		Appelez-nous	-
128	WS01L06952		Cap End   (Replaces: WR02X12344)				$ 111.02
132	WB02K10191		Badge Monogram Large		Appelez-nous	-
133	WS01L00222		Hinge Door Rt(30)   (Replaces: WB10K10019)				$ 193.86
133	WS01L00233		Hinge Door Lt(30)   (Replaces: WB10K10020)				$ 158.95
134	WB57K10140		Glass Door		Appelez-nous	-
135	WB02K10222		Clip Window		Appelez-nous	-
204	WS01A00654		Screw (blk)   (Replaces: WB1K42)				$ 15.88
215	WB02K10241		Gasket Door		Appelez-nous	-
1300	WB01K10088		Scr 1/4-20 Tt Hxws 3/4 S		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
