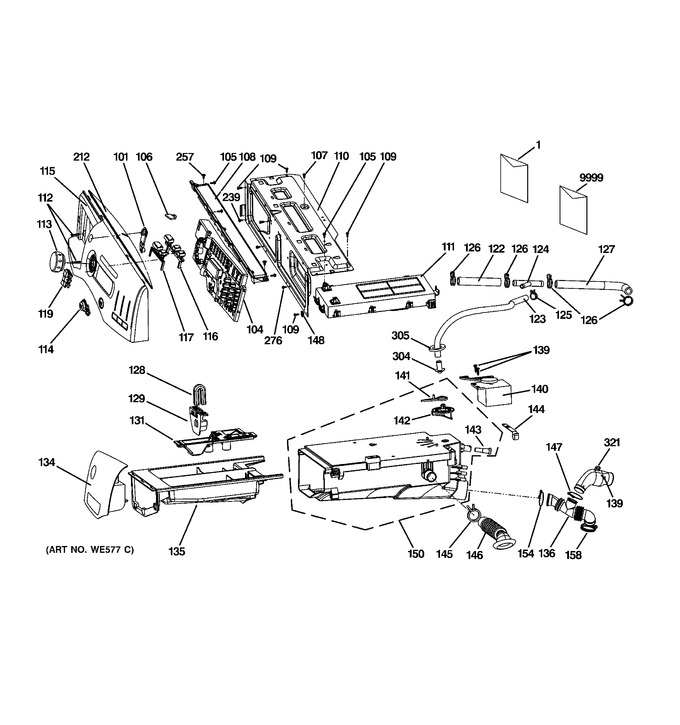

1 - Controls & Dispenser


2 - Cabinet & Top Panel


3 - Front Panel & Door


4 - Tub & Motor


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	49-90390-1		Use & Care Manual		Appelez-nous	-
1	31-30623		Mini Manual		Appelez-nous	-
1	49-90390		User_manual		Appelez-nous	-
101	WH01X10565		Power Button		Appelez-nous	-
104	WG04F02326		Control Board Asm   (Replaces: WH12X10482)			Immediately	$ 285.28
105	WH02X10181		Screw_st3.5 X 11		Appelez-nous	-
106	WH01X10563		Model Select Plug		Appelez-nous	-
107	WH02X10183		Screw St4*13		Appelez-nous	-
108	WH16X10138		Control Rear Cover		Appelez-nous	-
109	WH02X10184		Screw_st4.2 X 13		Appelez-nous	-
110	WH46X10240		Front Bracket Top		Appelez-nous	-
111	WH12X10483		Power Board Asm		Appelez-nous	-
112	WH02X10185		Screw_st4*25		Appelez-nous	-
113	WH11X10059		Select Cycle Knob Asm		Appelez-nous	-
114	WH01X10570		Start Button		Appelez-nous	-
115	WH42X10851		Control Panel Asm Mv		Appelez-nous	-
115	WH42X10853		Control Panel Asm Bb		Appelez-nous	-
115	WH42X10849		Control Panel Asm Ww		Appelez-nous	-
115	WH42X10850		Control Panel Asm Mg		Appelez-nous	-
115	WH42X10852		Control Panel Asm Ms		Appelez-nous	-
116	WH01X10557		Delay Button		Appelez-nous	-
117	WH01X10569		Smart Button		Appelez-nous	-
119	WH01X10564		My Cycle Button		Appelez-nous	-
122	WH41X10108		Inlet_water_hose_1		Appelez-nous	-
123	WH41X10109		Spray_hose		Appelez-nous	-
124	WH41X10110		3_way_pipe		Appelez-nous	-
125	WH01X10243		3_way_pipe_clamp		Appelez-nous	-
126	WH01X10244		3_way_pipe_clamp		Appelez-nous	-
127	WH41X10111		Inlet_water_hose		Appelez-nous	-
128	WH41X10179		Siphon Pipe		Appelez-nous	-
129	WH41X10180		Liquid Detergent Insert		Appelez-nous	-
131	WH41X10181		Softener Bleach Cover		Appelez-nous	-
134	WH41X10253		Dispenser Dwr Front Mg		Appelez-nous	-
134	WH41X10254		Dispenser Dwr Front Mv		Appelez-nous	-
134	WH41X10252		Dispenser Dwr Front Ww		Appelez-nous	-
134	WH41X10256		Dispenser Dwr Front Bb		Appelez-nous	-
134	WH41X10255		Dispenser Dwr Front Ms		Appelez-nous	-
135	WH41X10185		Drawer Dispenser		Appelez-nous	-
136	WH41X10257		Water Inlet Pipe		Appelez-nous	-
139	WH02X10186		Screw St 4*20		Appelez-nous	-
140	WG02F04592		Diverter   (Replaces: WH43X10031)			Immediately	$ 184.41
141	WH01X10247		Diverter_indicator		Appelez-nous	-
142	WH01X10376		Diverter Lever Plate		Appelez-nous	-
143	WH41X10121		Dispenser_inlet		Appelez-nous	-
144	WH01X10249		Dispenser_clamp		Appelez-nous	-
145	WH01X10250		Dispenser_vent_hose_clam		Appelez-nous	-
146	WG04F00286		Dispenser_vent_hose   (Replaces: WH41X10122)				$ 10.32
147	WH02X10341		Water Inlet Pipe Clamp		Appelez-nous	-
148	WH01X10555		Control Panel Pin		Appelez-nous	-
150	WH41X10204		Main Box Diverter Asm		Appelez-nous	-
154	WH01X10377		Clamp - Water Inlet Pipe		Appelez-nous	-
158	WH01X10379		Clamp - Water Inlet Pipe		Appelez-nous	-
212	WH01X10558		Escutcheon Top Sleeve Ww		Appelez-nous	-
212	WH01X10571		Escutcheon Top Sleeve Mg		Appelez-nous	-
212	WH01X10572		Escutcheon Top Sleeve Mv		Appelez-nous	-
212	WH01X10573		Escutcheon Top Sleeve Ms		Appelez-nous	-
212	WH01X10574		Escutcheon Top Sleeve Bb		Appelez-nous	-
239	WH02X10197		Screw_st4.4*9.5		Appelez-nous	-
257	WH02X10201		Screw_st4.2*13		Appelez-nous	-
276	WH02X10203		Screw St4.2*11		Appelez-nous	-
304	WG04L00219		Gasket_nozzle   (Replaces: WH08X10021)				$ 5.36
305	WG04L00220		Gasket_nozzle_washer   (Replaces: WH02X10206)				$ 4.31
321	WH41X10249		Hose-vent		Appelez-nous	-
9999	WE25X10028		Kit - Stacking Wsh/dry		Appelez-nous	-
	WG04L01604		Door Frame - Outer Asm				$ 466.81
	WG04F02326		Control Board Asm			Immediately	$ 285.28
	WG04F02327		Power Board Asm				$ 233.02
	WG04F02372		Rear Tub Asm				$ 729.60
	WG04L00161		Door Plunger				$ 20.54
	WG04L00177		Door Lock			Immediately	$ 253.22
	WG04L01217		Gasket				$ 319.65
	WG04L01222		Hinge			Immediately	$ 107.31
	WG04L01223		Hinge Cover				$ 21.85
	WG04L01224		Hinge Door Plate			Immediately	$ 20.94
	WG04L02781		Basket Asm 4.9 Cu Ft				$ 614.32
	WG04F00309		Drain Hose Coupling				$ 7.55

    View Diagram in Separate Window       Print Part List
