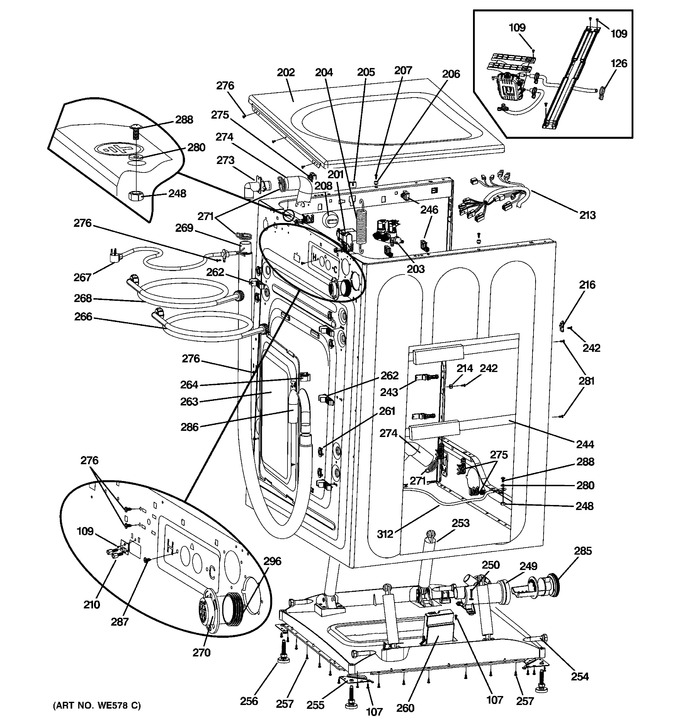

1 - Controls & Dispenser
2 - Cabinet & Top Panel
3 - Front Panel & Door
4 - Tub & Motor
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 107 | WH02X10183 | Screw St4*13 |
|
- | |||||
| 109 | WH02X10184 | Screw_st4.2 X 13 |
|
- | |||||
| 126 | WH01X10244 | 3_way_pipe_clamp |
|
- | |||||
| 201 | WH41X10123 | Emi_filter |
|
- | |||||
| 202 | WH44X10221 | Top Panel Asm Mv |
|
- | |||||
| 202 | WH44X10253 | Top Panel Asm Mg |
|
- | |||||
| 202 | WH44X10173 | Top Panel Asm Ww |
|
- | |||||
| 202 | WH44X10184 | Top Panel Asm Bb |
|
- | |||||
| 202 | WH44X10193 | Top Panel Asm Ms |
|
- | |||||
| 203 | WG04F01378 | Water Valve (Replaces: WH13X10023) |
|
Immediately | $ 111.16 | ||||
| 204 | WH05X10012 | Spring - Suspension |
|
- | |||||
| 205 | WG04A00964 | Spring_hanger (Replaces: WH01X10251) |
|
Immediately | $ 3.97 | ||||
| 206 | WH01X10252 | Top_panel_pin |
|
- | |||||
| 207 | WH02X10187 | Screw_st 4.2x14 |
|
- | |||||
| 208 | WH12X10390 | Pressure Switch |
|
- | |||||
| 210 | WH02X10268 | Screw - Db9 Connector |
|
- | |||||
| 213 | WH19X10076 | Wire Harness |
|
- | |||||
| 214 | WH01X10253 | Front_panel_pin |
|
- | |||||
| 216 | WH16X10073 | Front_panel_hanger |
|
- | |||||
| 242 | WH02X10182 | Screw St4.2*13 |
|
- | |||||
| 243 | WH16X10074 | Wire_catch |
|
- | |||||
| 244 | WH16X10075 | Side_bracket |
|
- | |||||
| 246 | WH16X10076 | Wire_catch |
|
- | |||||
| 248 | WH02X10199 | Nut_m5 |
|
- | |||||
| 249 | WG04F12336 | Pump (Replaces: WH23X10038) |
|
Immediately | $ 146.24 | ||||
| 250 | WH02X10200 | Screw_washer_st4*25 |
|
- | |||||
| 253 | WH01X10385 | Damper - Shock |
|
- | |||||
| 254 | WH01X10261 | Damper Pin |
|
- | |||||
| 255 | WH16X10077 | Conner Bracket |
|
- | |||||
| 256 | WH46X10243 | Leg Asm |
|
- | |||||
| 257 | WH02X10201 | Screw_st4.2*13 |
|
- | |||||
| 260 | WH12X10493 | Inverter |
|
- | |||||
| 261 | WH44X10206 | Cover - Shipping Screw |
|
- | |||||
| 262 | WH01X10262 | Outside_drain_hose_catch |
|
- | |||||
| 263 | WH46X10237 | Cabinet Rear Cover |
|
- | |||||
| 264 | WH01X10263 | Inside_drain_hose_catch |
|
- | |||||
| 266 | WH41X10215 | Main_water_hose_cold |
|
- | |||||
| 267 | WH19X10071 | Power Cord |
|
- | |||||
| 268 | WH41X10216 | Main_water_hose_hot |
|
- | |||||
| 269 | WG04F00643 | Outside_drain_hose (Replaces: WH41X10126) |
|
$ 99.93 | |||||
| 270 | WH01X10527 | Vent Hose Coupling |
|
- | |||||
| 271 | WH01X10265 | Drain_hose_clamp |
|
- | |||||
| 273 | WG04F00309 | Drain_hose_coupling (Replaces: WH01X10266) |
|
$ 7.55 | |||||
| 274 | WH41X10127 | Inside_drain_hose |
|
- | |||||
| 275 | WH16X10078 | Wire_catch_1 |
|
- | |||||
| 276 | WH02X10203 | Screw St4.2*11 |
|
- | |||||
| 280 | WH02X10218 | Lock Washer |
|
- | |||||
| 281 | WH02X10219 | Screw_st4*10 |
|
- | |||||
| 285 | WG04A05158 | Pump Filter (Replaces: WH23X10029) |
|
$ 38.12 | |||||
| 286 | WG04F04381 | Drain Hose Guide U-shape (Replaces: WH41X10133) |
|
$ 8.34 | |||||
| 287 | WH02X10220 | Screw_st4.2*13 |
|
- | |||||
| 288 | WH02X10234 | Screw M5*12 |
|
- | |||||
| 296 | WH08X10052 | Seal Vent Pipe |
|
- | |||||
| 312 | WH19X10078 | Ground Wire |
|
- |
