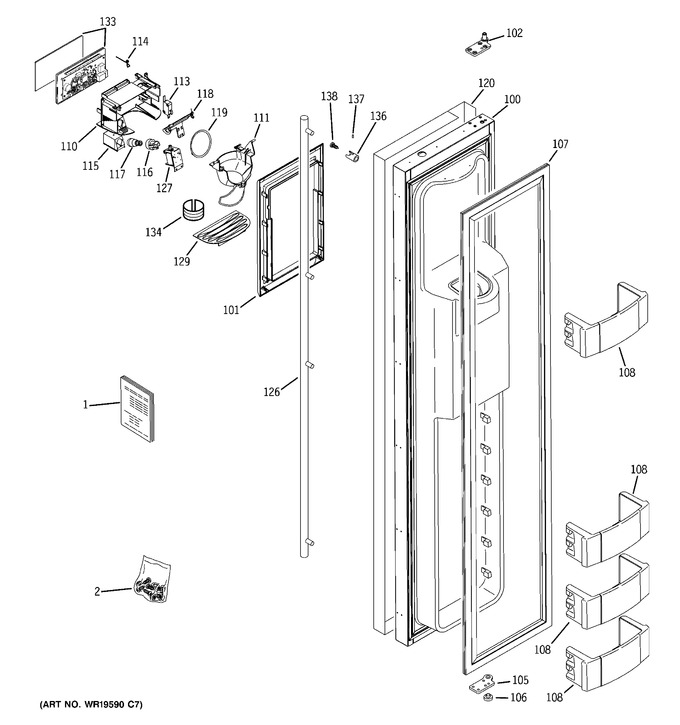

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WH2X1211		Screw		Appelez-nous	-
1	31-51748		Pm Mini Manual		Appelez-nous	-
1	49-60559		No Item Description		Appelez-nous	-
2	WR01X10304		Hardware Pack		Appelez-nous	-
100	WR78X11106		36/42 Fz Disp Door Bk		Appelez-nous	-
101	WR38X10281		Collar Kit- Black		Appelez-nous	-
102	WR13X10238		Top Sxs Fz Door Hinge As		Appelez-nous	-
106	WR01X10297		Fz Bottom Hinge Bushing		Appelez-nous	-
107	WR24X10204		Gasket Door		Appelez-nous	-
108	WR71X10426		Reg Bin Asm		Appelez-nous	-
110	WG03F00341		Housing Shield Disp   (Replaces: WR17X12152)				$ 18.59
111	WG03F00291		Funnel Ice Display   (Replaces: WR17X11267)				$ 63.62
113	WR01F03637		Switch   (Replaces: WR23X10224)			Immediately	$ 17.47
114	WR02X10584		Spring Funnel		Appelez-nous	-
115	WR02X10670		Reflector Light		Appelez-nous	-
116	WR2X9561		Lamp Socket		Appelez-nous	-
117	WG03A03944		Light Dispenser   (Replaces: WR02X12208)			Immediately	$ 67.41
118	WR01L00935		Crank Door Recess   (Replaces: WR17X10706)				$ 12.71
119	WR01L01914		Door Recess Assy   (Replaces: WR17X3093)				$ 65.21
120	WR12X10530		Ss D Fz Wrap Asm 42		Appelez-nous	-
126	WR12X10068		Handle Tubular Ss		Appelez-nous	-
127	WR01F01784		Solenoid Asm   (Replaces: WR62X10055)				$ 88.99
129	WR01L03203		Grille Recess Bk   (Replaces: WR17X11655)				$ 31.76
133	WR55X10157		Disp Asm- Board / Glass		Appelez-nous	-
134	WR01X10019		Screw 6-10 Pl Flp 1/2 S		Appelez-nous	-
136	WG03F00574		Stand-off Ss   (Replaces: WR02X10165)				$ 112.62
137	WR01X10026		Screw Set 10-32		Appelez-nous	-
138	WR01X10057		Screw #10-32x3/4 Cr Tr H		Appelez-nous	-
