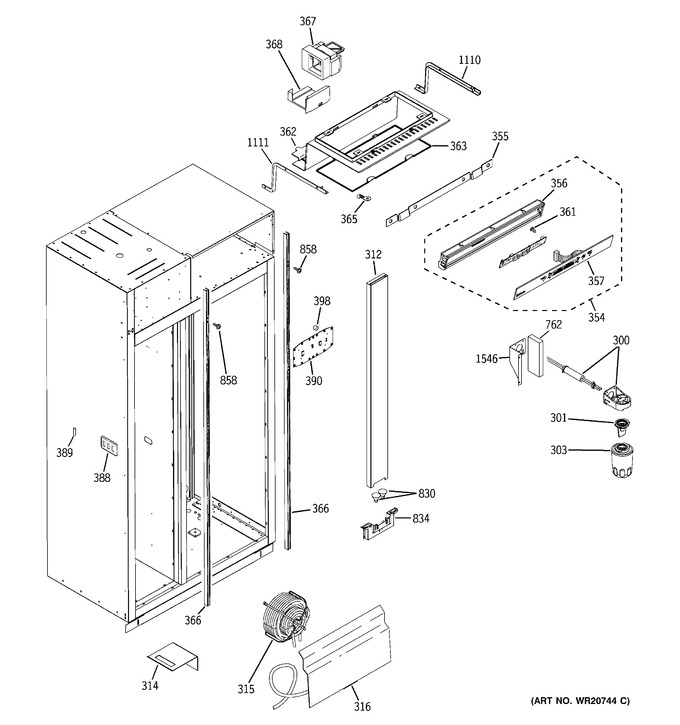

SELECT A DIAGRAM

10 - Case Parts


1 - Freezer Door


2 - Sealed System & Mother Board


3 - Fresh Food Door


4 - Freezer Section


5 - Freezer Shelves


6 - Ice Maker & Dispenser


7 - Fresh Food Section


8 - Fresh Food Shelves


9 - Quick Chill


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
300	WR02X13046		Water Filter & Head Asm		Appelez-nous	-
301	WR02X10577		Plug Bypass Filter		Appelez-nous	-
303	PMMWF		Water Filt Ref Cyst   (Replaces: MWF)			Immediately	$ 81.88
312	WR17X12531		Shield Light Col 36/42fz		Appelez-nous	-
314	WR02X13141		Foam Airtower Asm		Appelez-nous	-
315	WG03F03757		Water Tank Asm   (Replaces: WR17X12702)				$ 60.18
316	WR02X13153		Cover Water Tank		Appelez-nous	-
354	WR55X10851		Hmi Asm 42 Disp		Appelez-nous	-
355	WR01X10841		Hmi Tab Holder 48/42		Appelez-nous	-
356	WR31X10022		Temp Control Housing		Appelez-nous	-
357	WR55X10828		Membrane Sxs Disp		Appelez-nous	-
361	WR02X11200		4-40 X 1/4 Ph Sms		Appelez-nous	-
362	WR17X11212		Ceiling Light Bracket		Appelez-nous	-
363	WR02X12851		Ceiling Light Shield		Appelez-nous	-
365	WR02X11203		Latch Light Shield		Appelez-nous	-
366	WR17X12524		Track Ff Shelf		Appelez-nous	-
367	WR02X12860		Damper Foam Asm 42		Appelez-nous	-
368	WR02X11241		Foam Duct		Appelez-nous	-
388	WR02X12839		Grille Sensor		Appelez-nous	-
389	WR55X10030		Sensor Temperature		Appelez-nous	-
390	WR55X10820		Board Led Light Asm		Appelez-nous	-
390	WR55X11007		Board Led Light Asm		Appelez-nous	-
398	WR02X12859		Spacer		Appelez-nous	-
762	WR14X10296		Foam Strip Front		Appelez-nous	-
834	WR02X11183		Halogen Bulb Light Colum		Appelez-nous	-
858	WR01X10840		Scr 10-24 F Pnp 1.25s		Appelez-nous	-
1110	WR01X10927		Trim Ceiling Bracket Rh		Appelez-nous	-
1111	WR01X10928		Trim Ceiling Bracket Lh		Appelez-nous	-
1546	WR02X12828		Water Filter Bracket		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
