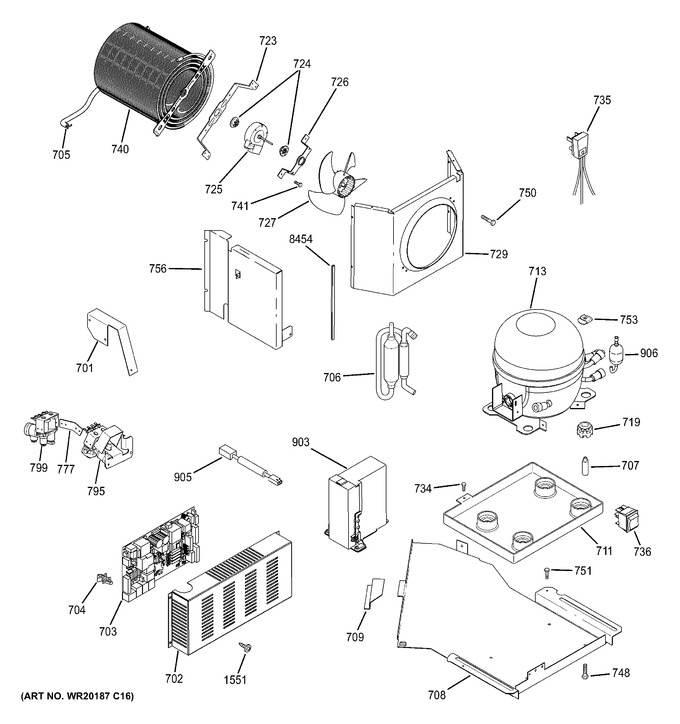

SELECT A DIAGRAM

10 - Case Parts


1 - Freezer Door


2 - Machine Compartment


3 - Fresh Food Door


4 - Freezer Section


5 - Freezer Shelves


6 - Ice Maker & Dispenser


7 - Fresh Food Section


8 - Fresh Food Shelves


9 - Quick Chill


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
701	WR02X12198		Bracket Water Valve		Appelez-nous	-
702	WG03L05118		Cover Board Main Sxs   (Replaces: WR02X12829)				$ 81.88
703	WR01F02880		Board Asm Main Control   (Replaces: WR55X10819)			Immediately	$ 329.91
704	WR01X10301		Main Board Stand Offs		Appelez-nous	-
705	WG03F03655		Cap Suction Tube Asm   (Replaces: WR86X10021)				$ 208.86
706	WR74X10125		Dryer		Appelez-nous	-
707	WR01X10458		Stud Compressor Mtg		Appelez-nous	-
708	WR17X12348		System Pan		Appelez-nous	-
709	WR02X12569		System Pan Bracket		Appelez-nous	-
711	WR17X12484		Pan Vaporizer		Appelez-nous	-
713	WR60X10216		Motor Dc Cond Fan		Appelez-nous	-
723	WR02X10593		Bracket Cond Fan (rear)		Appelez-nous	-
725	WG03F00154		Aasm Kit Vcc2 Wr87x10111   (Replaces: WR87X10111)				$ 1,117.00
726	WG03F00071		Bracket Cond Fan (mtg)   (Replaces: WR02X11863)			Immediately	$ 27.00
729	WR17X11252		Shroud Condenser		Appelez-nous	-
735	WG03F00911		Power Cord   (Replaces: WR23X10300)				$ 85.41
736	WG03F01988		Master Light Sw. Kit   (Replaces: WR49X10070)				$ 68.68
740	WR01F02892		Prod Serv Condenser   (Replaces: WR84X10022)				$ 403.54
741	WR1X1466		Scr 8-32 T Hxw 3/8 S		Appelez-nous	-
750	WR1X1826		#8-18 Type Ab X 3/8 Ph P		Appelez-nous	-
751	WR01X10302		Bolt 1/4-20x1.5"		Appelez-nous	-
756	WR17X12529		Baffle Lh		Appelez-nous	-
777	WR02X10370		Bracket Water Valve		Appelez-nous	-
795	WG03F00070		Bracket And Valve Asm   (Replaces: WR57X10084)				$ 167.45
799	WG03F00684		Water Valve Assy   (Replaces: WR57X10024)				$ 128.06
903	WR55X10685		Inverter Asm Comp Mount		Appelez-nous	-
905	WR23X10392		Harness Ground		Appelez-nous	-
906	WG03L02186		Accumulator   (Replaces: WR86X10038)				$ 76.77
1551	WG04A01239		#10x1 Ph Sms   (Replaces: WD2X295)				$ 3.97
8454	WR38X10190		Edge Trim		Appelez-nous	-
	WG03L00211		Ens Glissiﾃ#re 10"				$ 73.87
	WG03L01063		Hinge				$ 110.53
	WG03L01708		Handle Ss, Monogram				$ 99.55
	WG03L02568		Clad Foam Asm Fz Lh, Monogram				$ 2,302.18
	WR01L04899		Registre				$ 151.81
	WG03F00213		Damper Foam Asm,monogram				$ 299.94
	WS01L06952		End Cap, Monogram				$ 111.02
	WG03F04018		Meneau				$ 398.39
	WG03F04062		Board Asm Main Control				$ 433.40
