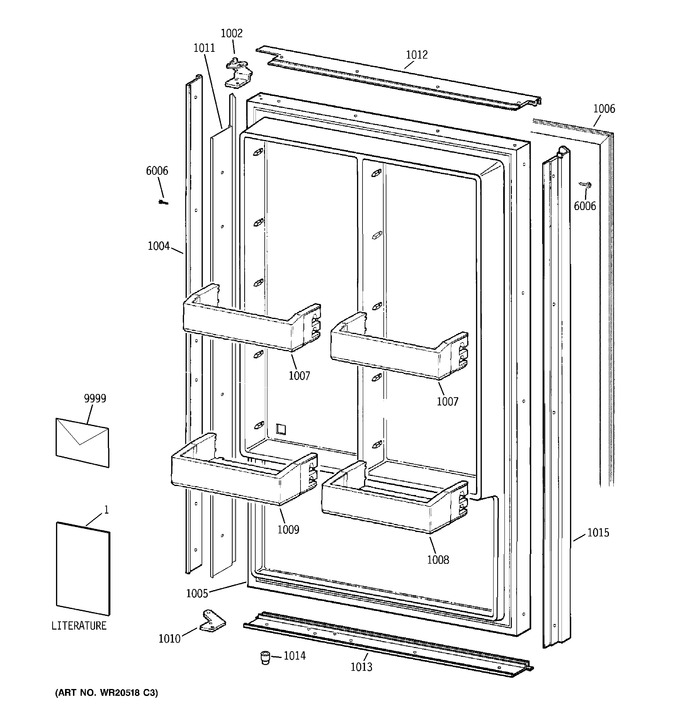

1 - Door
2 - Cabinet (1)
3 - Cabinet (2)
4 - Shelves & Drawers
5 - Machine Compartment
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 49-60562 | Owner's Manual |
|
- | |||||
| 1 | 31-51763 | Mini Manual Sd Fz |
|
- | |||||
| 1 | 31-46148 | Installation Instruction |
|
- | |||||
| 1002 | WR13X10210 | Hinge Door Top Ff Lh |
|
- | |||||
| 1004 | WR12X10948 | Handle |
|
- | |||||
| 1005 | WR78X12371 | Door Foamed Asm Sd Ff/fz |
|
- | |||||
| 1006 | WR24X10150 | Gasket Door Sd |
|
- | |||||
| 1007 | WG02L00043 | Bin Ff Door W/window (Replaces: WR71X10138) |
|
$ 105.03 | |||||
| 1008 | WR01L08881 | Bin Door Ff Deep Rh (Replaces: WR71X10139) |
|
$ 94.48 | |||||
| 1009 | WG03L00003 | Bin Door Ff Deep Lh (Replaces: WR71X10140) |
|
$ 107.67 | |||||
| 1010 | WR13X10657 | Hinge Door Btm |
|
- | |||||
| 1011 | WR38X10440 | Trim Handle |
|
- | |||||
| 1012 | WR17X12706 | Trim Top Lh |
|
- | |||||
| 1013 | WR17X12707 | Trim Bottom Lh |
|
- | |||||
| 1014 | WR01X10879 | Bushing Arm |
|
- | |||||
| 1015 | WR12X10952 | Handle Trim Asm Rh |
|
- | |||||
| 6006 | WR01X10188 | Screw Trim (self Drillin |
|
- | |||||
| 9999 | WR49X10193 | Sd Anti-tip Wall Bracket |
|
- |
