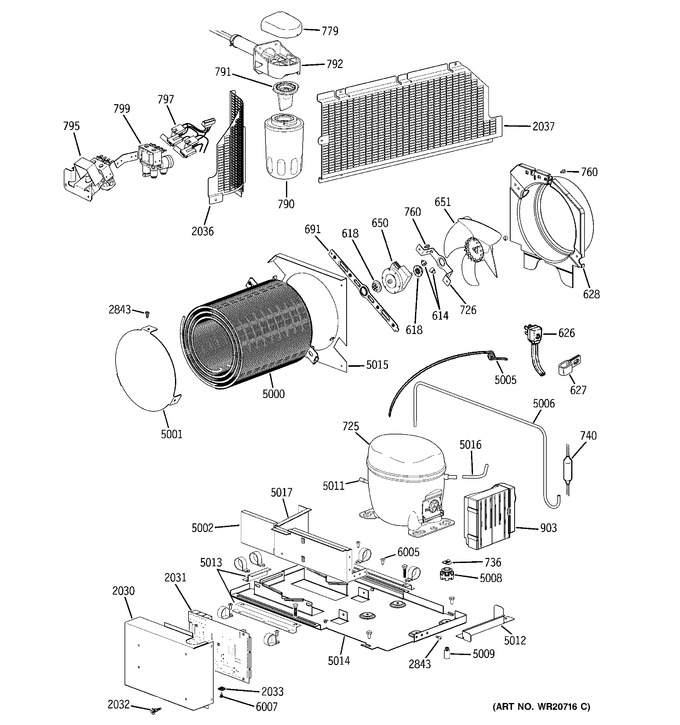

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
614	WR01A00163		Bumper   (Replaces: WR02X10540)			Immediately	$ 6.35
618	WR01A00315		Grommet Fan Motor   (Replaces: WR02X10520)				$ 4.17
626	WG03F00911		Power Cord   (Replaces: WR23X10300)				$ 85.41
627	WR1X5278		Clamp Cable		Appelez-nous	-
628	WR17X11252		Shroud Condenser		Appelez-nous	-
650	WG04F09248		Motor Ac/dc Cond Fan   (Replaces: WR60X10140)			Immediately	$ 219.59
651	WR01F02003		Blade Cond Fan Asm   (Replaces: WR60X10206)				$ 11.51
691	WR02X10593		Bracket Cond Fan (rear)		Appelez-nous	-
725	WG03F00154		Aasm Kit Vcc2 Wr87x10111   (Replaces: WR87X10111)				$ 1,117.00
726	WG03F00071		Bracket Cond Fan (mtg)   (Replaces: WR02X11863)			Immediately	$ 27.00
736	WR2X8203		Clip Compressor Mount		Appelez-nous	-
740	WR86X10030		Dryer Bifurcated Hx9		Appelez-nous	-
760	WR01X10317		Scr 8-32 Ca Hxw 1/2		Appelez-nous	-
779	WR02X13039		Cover Water Valve		Appelez-nous	-
790	PMMWF		Water Filt Ref Cyst   (Replaces: MWF)			Immediately	$ 81.88
791	WG03L10111		Cap Filter Bypass   (Replaces: WR02X11705)			Immediately	$ 19.97
792	WR02X13046		Water Filter & Head Asm		Appelez-nous	-
795	WG03F00070		Bracket And Valve Asm   (Replaces: WR57X10084)				$ 167.45
799	WG03F00684		Water Valve Assy   (Replaces: WR57X10024)				$ 128.06
903	WR55X10685		Inverter Asm Comp Mount		Appelez-nous	-
2030	WR02X13021		Cover Motherboard		Appelez-nous	-
2031	WR55X10922		Board Asm Main Control				$ 446.72
2032	WR02X13026		Pcb Stand Off		Appelez-nous	-
2033	WR02X13025		Nut-u		Appelez-nous	-
5000	WR84X10091		Cond & Brkt Formed Asmfz		Appelez-nous	-
5001	WR17X10694		Baffle Cond Air		Appelez-nous	-
5002	WR14X10299		Foam Cond Baffle		Appelez-nous	-
5005	WR02X13220		Tube Jump Suct Comp Asm		Appelez-nous	-
5006	WR02X13222		Tube Jump Cap Dryer		Appelez-nous	-
5008	WR1X5702		Washer		Appelez-nous	-
5009	WR01F00849		Grommet   (Replaces: WR02X10678)			Immediately	$ 3.97
5011	WR02X13215		Tube Process Dryer		Appelez-nous	-
5012	WR02X13218		Keep Out Lt Sw Lh		Appelez-nous	-
5013	WR02X12767		Retainer System Pan		Appelez-nous	-
5014	WR17X12774		System Pan Asm		Appelez-nous	-
5015	WR17X12676		Housing Control		Appelez-nous	-
5016	WR02X13010		Membrane Sd Fz		Appelez-nous	-
6005	WG04A01239		#10x1 Ph Sms   (Replaces: WD2X295)				$ 3.97
6007	WR1X1826		#8-18 Type Ab X 3/8 Ph P		Appelez-nous	-
	WG04A00766		Inverter W/jumpers Kit			Immediately	$ 554.11
	WG03F00044		Board Asm Main Control, Monogr				$ 454.82
	WG03F00684		Water Valve Ass''m				$ 128.06
