SELECT A DIAGRAM

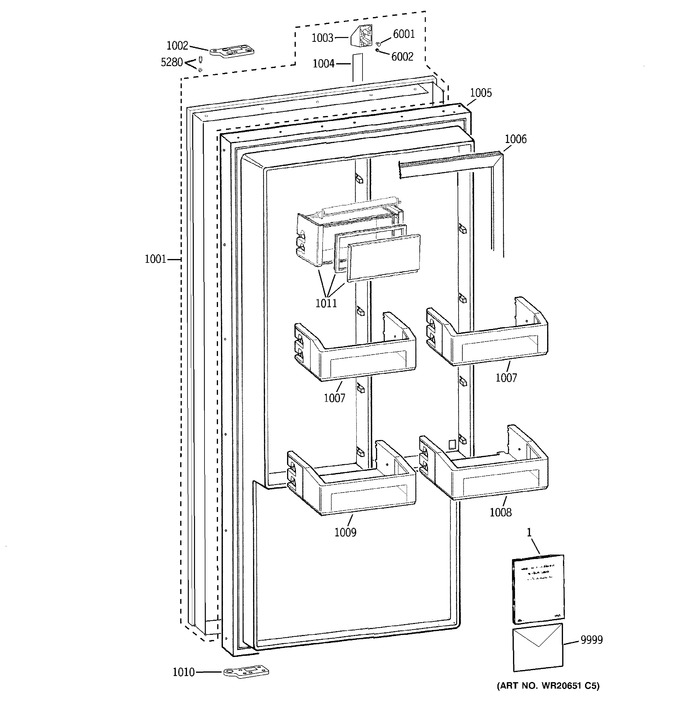

1 - Door


2 - Cabinet Parts


3 - Shelves & Drawers


4 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-46148		Pm Install Instructions		Appelez-nous	-
1	WH2X1211		Screw		Appelez-nous	-
1	49-60562		Pm Owners Manual		Appelez-nous	-
1	31-51762		Minimanual Sd Ff		Appelez-nous	-
1001	WR78X12369		Clad Handle Asm Pro Rh		Appelez-nous	-
1002	WR13X10580		Hinge Asm Door Top		Appelez-nous	-
1003	WS01L06952		Cap End   (Replaces: WR02X12344)				$ 111.02
1004	WG03L01708		Handle Ss   (Replaces: WR12X10842)				$ 99.55
1005	WR78X12371		Door Foamed Asm Sd Ff/fz		Appelez-nous	-
1006	WR24X10150		Gasket Door Sd		Appelez-nous	-
1007	WG02L00043		Bin, Ff Door W/window   (Replaces: WR71X10138)				$ 101.38
1008	WR01L08881		Bin, Door Ff Deep Rh   (Replaces: WR71X10139)				$ 94.48
1009	WG03L00003		Bin, Door Ff Deep Lh   (Replaces: WR71X10140)				$ 103.93
1010	WR13X10657		Hinge Door Btm		Appelez-nous	-
1011	WR71X10142		Asm Dairy Comp		Appelez-nous	-
6001	WR02X12314		Scr 1/4-20 Hx 3/8 S		Appelez-nous	-
6002	WR01A00759		Set Screw   (Replaces: WR02X11769)				$ 22.23
9999	WR49X10193		Anti-tip Hardware Asm		Appelez-nous	-
	WG03A00458		Screw, Monogram		Appelez-nous	-
	WG03F00044		Board Asm Main Control, Monogr				$ 454.82
	WG03F00254		Evap Coil				$ 774.64
	WG03F00669		Veg. Basket				$ 287.65
	WG03F03802		Tube Jump Suct Evap Asm				$ 27.01
	WG03L00216		Support Veg Basket Wire, Monog				$ 221.28
	WG03L00743		Slide Outer Short				$ 61.96
	WG03L01708		Handle Ss, Monogram				$ 99.55
	WG03L05940		Base Channel Asm D.				$ 98.81
	WR01A00759		Set Screw				$ 22.23
	WR01F02896		Compressor Kit Inverter, Monog				$ 1,113.83
	WR01L01926		Dryer Bifurcated Hx9, Monogram				$ 16.78
	WS01L06952		End Cap, Monogram				$ 111.02

    View Diagram in Separate Window       Print Part List
