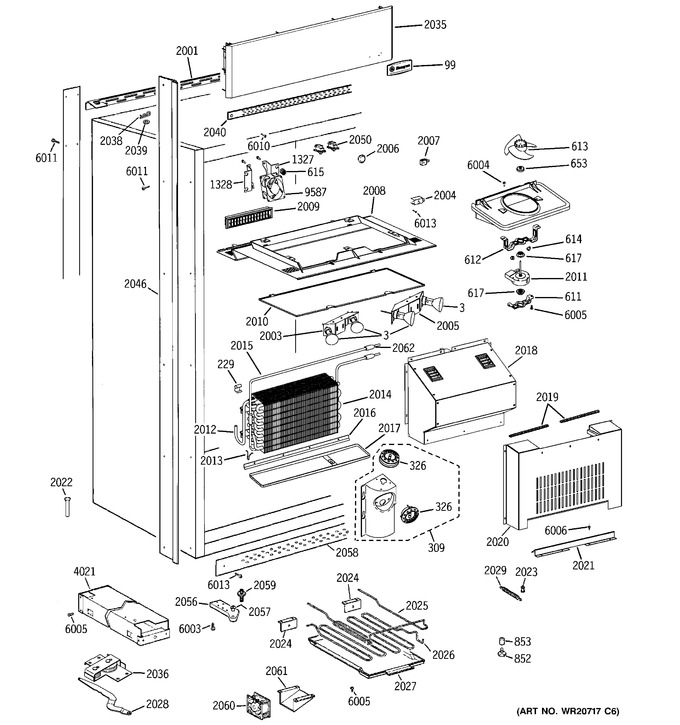

1 - Door
2 - Cabinet Parts
3 - Shelves & Drawers
4 - Unit Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | WR02X13308 | Bulb Halogen Light |
|
- | |||||
| 99 | WS01A00367 | Monogram Badge (Replaces: WB02K10295) |
|
$ 12.40 | |||||
| 229 | WR01A00194 | Clip Evap Thermistor (Replaces: WR02X10552) |
|
$ 4.17 | |||||
| 309 | WR17X12690 | Btm Light Asm Lh |
|
- | |||||
| 309 | WR17X12689 | Btm Light Asm Rh |
|
- | |||||
| 326 | WR02X11198 | Harness Ff Hmi Sxs |
|
- | |||||
| 611 | WR02X10764 | Bracket Evap Fan Btm |
|
- | |||||
| 612 | WR02X10653 | Bracket Orifice Fan |
|
- | |||||
| 613 | WR60X10208 | Blade Evap Fan Asm |
|
- | |||||
| 614 | WR01A00163 | Bumper Lid (Replaces: WR02X10540) |
|
Immediately | $ 6.35 | ||||
| 615 | WR17X12252 | Grommet Evap Fan |
|
- | |||||
| 617 | WG03F00306 | Grommet Evap Fan (Replaces: WR02X12008) |
|
Immediately | $ 7.24 | ||||
| 653 | WR01F00744 | Cap Dust (Replaces: WR02X10322) |
|
$ 37.17 | |||||
| 852 | WG03L01824 | Bolt, Shoulder (Replaces: WR01X10752) |
|
$ 29.57 | |||||
| 853 | WR01X10879 | Bushing Arm |
|
- | |||||
| 1327 | WR02X13024 | Bracket Top Fan |
|
- | |||||
| 1328 | WR02X13011 | Bracket Top Fan Lh |
|
- | |||||
| 2001 | WR02X13008 | Bracket Wall Mounting |
|
- | |||||
| 2003 | WR74X10309 | Top Light Asm Lh |
|
- | |||||
| 2004 | WR23X10571 | Master Light Switch |
|
- | |||||
| 2005 | WR74X10308 | Top Light Asm Rh |
|
- | |||||
| 2006 | WR02X10154 | Plug Button #413 I/m |
|
- | |||||
| 2007 | WR02X12585 | Twist Support |
|
- | |||||
| 2008 | WR17X12701 | Top Ceiling Asm |
|
- | |||||
| 2009 | WR02X13035 | Louver Sd |
|
- | |||||
| 2010 | WR17X12677 | Ceiling Light Shield Sd |
|
- | |||||
| 2011 | WR60X10284 | Motor Dc Evap Fan Asm |
|
$ 262.35 | |||||
| 2012 | WR01X10884 | Clip Defrost Heater |
|
- | |||||
| 2013 | WR02X13221 | Tube Jump Suct Evap Asm |
|
- | |||||
| 2014 | WG03F00254 | Evap Coil (Replaces: WR85X10017) |
|
$ 774.64 | |||||
| 2015 | WR51X10113 | Defrost Heater |
|
- | |||||
| 2016 | WR17X12683 | Drain Baffle |
|
- | |||||
| 2017 | WR17X12684 | Evaporator Trough |
|
- | |||||
| 2018 | WR17X12692 | Evap Fan Cover Foam Asm |
|
- | |||||
| 2019 | WR38X10190 | Edge Trim 1.1257" |
|
- | |||||
| 2020 | WR01L08810 | Evap Cover Asm (Replaces: WR74X10306) |
|
$ 612.53 | |||||
| 2021 | WR17X12641 | Catch Evap Trough |
|
- | |||||
| 2022 | WR17X10655 | Drain Tube |
|
- | |||||
| 2023 | WR1X1839 | Bushing Hinge Spring Asm |
|
- | |||||
| 2024 | WR02X13038 | Cover Rear Pan |
|
- | |||||
| 2025 | WR17X12685 | Pan Protector |
|
- | |||||
| 2026 | WR84X10089 | Condenser Btm |
|
- | |||||
| 2027 | WR17X11016 | Drain Pan |
|
- | |||||
| 2028 | WR02X10948 | Cam Actuator |
|
- | |||||
| 2029 | WR01X10856 | Spring Closure |
|
- | |||||
| 2035 | WR74X10352 | Grill Asm Pro |
|
- | |||||
| 2036 | WR02X13316 | Closure Mech Rh |
|
- | |||||
| 2038 | WR01X10906 | Washer 3/8 |
|
- | |||||
| 2039 | WR02X13216 | Hairpin Cotter |
|
- | |||||
| 2040 | WR74X10219 | Grill & Backplate Asm Rh |
|
- | |||||
| 2046 | WR08X10106 | Trim Case Side Lh |
|
- | |||||
| 2050 | WR23X475 | Rocker Switch 200-watt |
|
- | |||||
| 2056 | WR13X10688 | Lower Case Hinge Rh & Lh |
|
- | |||||
| 2057 | WG03A00011 | Bushing Hinge Bottom (Replaces: WR02X10953) |
|
$ 73.58 | |||||
| 2058 | WR74X10319 | Toe Kick |
|
- | |||||
| 2059 | WR01A01444 | Lower Ff Adj Hinge Pin (Replaces: WR13X10239) |
|
$ 21.63 | |||||
| 2060 | WR60X10306 | Drain Fan Bracket Asm |
|
- | |||||
| 2061 | WR02X12566 | Bracket Fan Mtg |
|
- | |||||
| 2062 | WR09X10180 | Harness Heaters Tod |
|
- | |||||
| 4021 | WR13X10694 | Base Channel Asm Lh |
|
- | |||||
| 6004 | WR01X10620 | Scr 10-32 Ca Hxws 9/16 S |
|
- | |||||
| 6005 | WG04A01239 | #10x1 Ph Sms (Replaces: WD2X295) |
|
$ 3.97 | |||||
| 6006 | WR01X10188 | Scr Trim (self Drilling) |
|
- | |||||
| 6010 | WR01X10053 | #8-18 Type Ab X 3/8 Blk |
|
- | |||||
| 6011 | WR01X10065 | Scr 8-18 Ba Por 5/8 Ss |
|
- | |||||
| 6013 | WG03A00431 | Screw, Toekick (Replaces: WR01X10370) |
|
$ 4.20 | |||||
| 9587 | WR60X10225 | Fan Fresh Food Asm |
|
- |
