View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Chassis Parts
2 - Motor, Heater & Base Pan Parts
3 - Control Parts
4 - Unit Parts
5 - Capillary Tubes
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

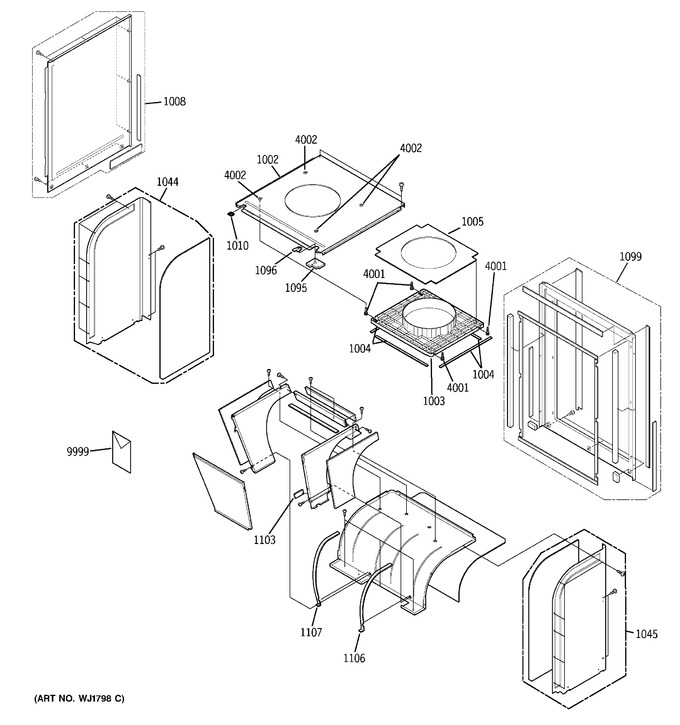

| 1002 | WJ82X10047 | Cabinet Top Plate |
|
- | |||||
| 1003 | WJ50X10007 | Duct Connector |
|
- | |||||
| 1004 | WJ45X10017 | Duct Insulator |
|
- | |||||
| 1005 | WJ45X10018 | Duct Insulator |
|
- | |||||
| 1008 | WJ82X10036 | Cabinet Side Plate L |
|
- | |||||
| 1010 | WJ03X10007 | Wire Holder |
|
- | |||||
| 1044 | WP82X10315 | Divider L Asm |
|
- | |||||
| 1045 | WP81X10001 | Divider R Asm |
|
- | |||||
| 1095 | WJ11X10007 | Top Plate Seal 2 |
|
- | |||||
| 1096 | WJ60X10002 | Top Plate Seal 1 |
|
- | |||||
| 1099 | WJ90X10043 | Cabinet Back Asm |
|
- | |||||
| 1103 | WJ60X10008 | Fan Housing Seal A |
|
- | |||||
| 1106 | WJ60X10010 | Duct Seal R |
|
- | |||||
| 1107 | WJ60X10009 | Duct Seal L |
|
- | |||||
| 4001 | WP01X10051 | Adjustable Bolt |
|
- | |||||
| 4002 | WP01X10054 | Adjustable Nut |
|
- | |||||
| 9999 | 31-61597 | Mini Manual |
|
- | |||||
| 9999 | 49-7639 | Use & Care |
|
- |
