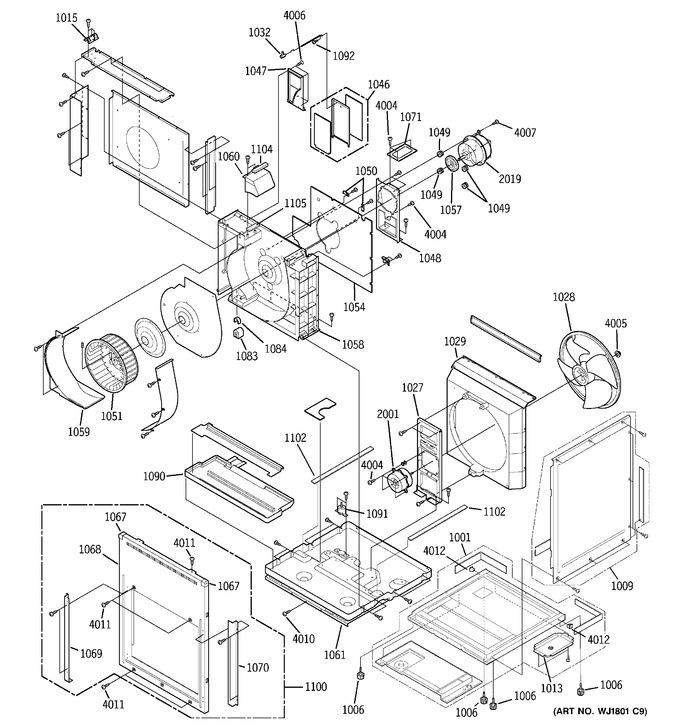

1 - Chassis Parts
2 - Motor, Heater & Base Pan Parts
3 - Control Parts
4 - Unit Parts
5 - Capillary Tubes
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1001 | WJ82X10031 | Bottom Angle Asm |
|
- | |||||
| 1006 | WP01X10040 | Ajuster |
|
- | |||||
| 1009 | WJ82X10037 | Cabinet Side Plate R |
|
- | |||||
| 1013 | WJ89X10058 | Drain Tray |
|
- | |||||
| 1015 | WJ79X10085 | Dampar Lever Cover |
|
- | |||||
| 1027 | WP65X10017 | Motor Angle |
|
- | |||||
| 1028 | WJ73X10060 | Propeller Fan |
|
- | |||||
| 1029 | WJ76X10107 | Condenser Shroud |
|
- | |||||
| 1032 | WJ14X10031 | Damper Lever |
|
- | |||||
| 1046 | WP14X10040 | Damper Asm |
|
- | |||||
| 1047 | WJ70X10036 | Damper Frame |
|
- | |||||
| 1048 | WP65X10015 | Id Motor Mount |
|
- | |||||
| 1049 | WP01X10027 | Motor Cushion |
|
- | |||||
| 1050 | WJ01X10159 | Clamp |
|
- | |||||
| 1051 | WJ73X10059 | Centrifugal Fan |
|
- | |||||
| 1054 | WJ45X10024 | Insulator |
|
- | |||||
| 1057 | WP01X10042 | Motor Rubber |
|
- | |||||
| 1058 | WJ76X10108 | Fan Housing |
|
- | |||||
| 1059 | WJ76X10109 | Fan Housing B |
|
- | |||||
| 1060 | WJ76X10110 | Fan Housing C |
|
- | |||||
| 1061 | WP89X10001 | Base Pan Asm |
|
- | |||||
| 1067 | WJ01X10171 | Corner Cap |
|
- | |||||
| 1068 | WJ71X10268 | Front Panel |
|
- | |||||
| 1069 | WJ05X10029 | Filter Guide L |
|
- | |||||
| 1070 | WJ05X10030 | Filter Guide R |
|
- | |||||
| 1071 | WP65X10016 | Brace |
|
- | |||||
| 1083 | WJ40X10014 | Bulkhead Insulator |
|
- | |||||
| 1084 | WJ40X10015 | Bulkhead Insulator |
|
- | |||||
| 1090 | WJ70X10037 | Drain Tray |
|
- | |||||
| 1091 | WJ58X10043 | Draining Valve |
|
- | |||||
| 1092 | WJ37X10029 | Damper Wire |
|
- | |||||
| 1100 | WJ82X10038 | Front Panel Asm |
|
- | |||||
| 1102 | WJ60X10005 | Base Pan Seal Rh |
|
- | |||||
| 1102 | WJ60X10011 | Base Pan Seal Lh |
|
- | |||||
| 1104 | WJ60X10007 | Fan Housing Seal B |
|
- | |||||
| 1105 | WJ60X10006 | Fan Housing Seal C |
|
- | |||||
| 2001 | WP94X10314 | Fan Motor Dc |
|
- | |||||
| 2019 | WP94X10315 | Fan Motor Dc |
|
$ 644.66 | |||||
| 4004 | WJ01X10037 | Special Screw |
|
- | |||||
| 4005 | WJ01X10041 | Special Nut |
|
- | |||||
| 4006 | WJ01X10056 | Special Screw |
|
- | |||||
| 4007 | WP01X10041 | Special Screw |
|
- | |||||
| 4010 | WP01X10052 | Special Screw |
|
- | |||||
| 4011 | WB01X10409 | Screw |
|
- | |||||
| 4012 | WJ01X10177 | Special Screw |
|
- |
