01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)

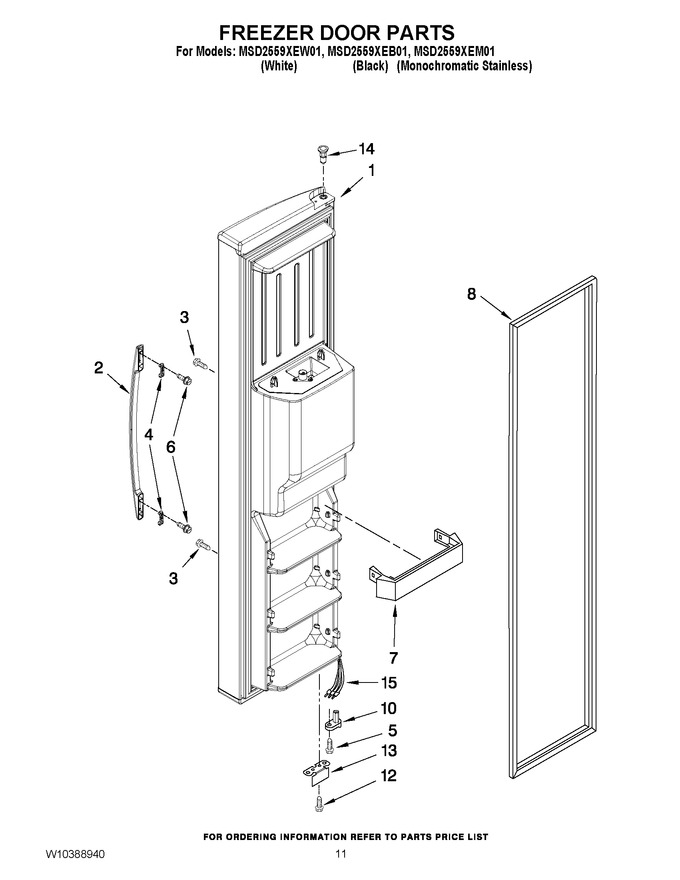

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10317487		Freezer Door (includes No.8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	W10294124		Freezer Door (includes No.8 And Dispenser Front Parts) (mono Stainless)		Appelez-nous	-
1	W10294123		Freezer Door (includes No.8 And Dispenser Front Parts) (white)		Appelez-nous	-
2	WPW10170749		Handle (white)   (Replaces: W10170749)				$ 314.22
2	WPW10170750		Handle (black)   (Replaces: W10170750)				$ 309.83
2	WPW10170743		Handle (stainless Steel)   (Replaces: W10170743)				$ 365.52
3	WPW10288153		Stud, Handle   (Replaces: W10129563)			Immediately	$ 9.65
4	WP2255411		Clip, Handle   (Replaces: 2255411)				$ 36.55
5	WP3400012		Screw   (Replaces: W10142285)				$ 8.26
6	W10184500		Screw, Clip				$ 36.30
7	WP2309718		Shelf Bin (3)   (Replaces: 2309718)				$ 61.49
8	2159082		Door Gasket, Magnetic (black)   (Replaces: 2221314)				$ 332.49
8	2159074		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221303)				$ 325.70
10	2323535		Door Closer, Upper Cam				$ 33.97
12	WPW10142233		Screw   (Replaces: W10142233)				$ 8.93
13	W10175736		Bracket, Door Stop (black)		Appelez-nous	-
13	W10219806		Bracket, Door Stop (chrome)		Appelez-nous	-
14	WP2182181		Thimble-top   (Replaces: 2200087)				$ 8.15
15	W10295774		Wire Assy, Door		Appelez-nous	-
