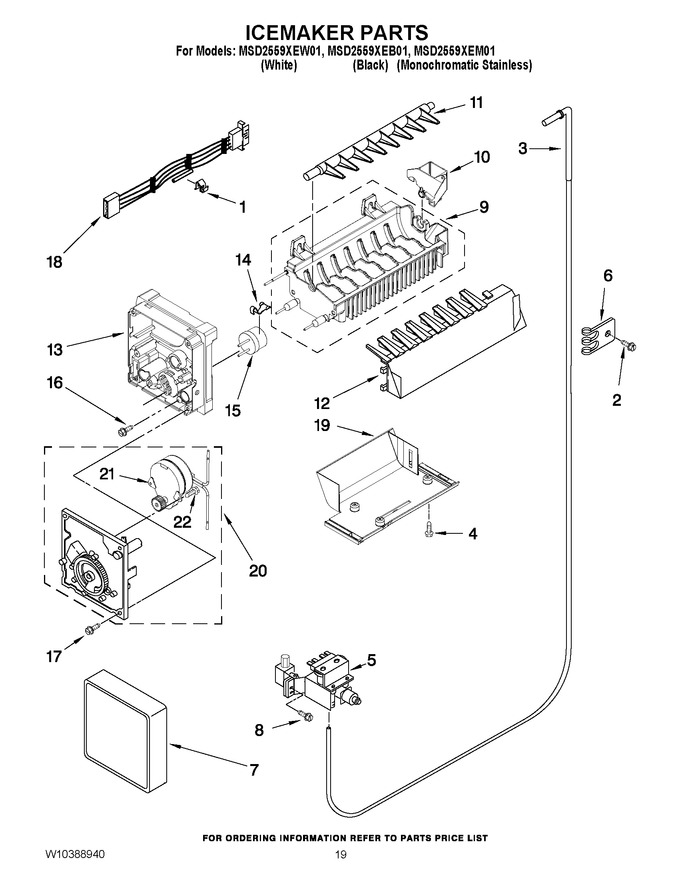

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP628379 | Clip, Fuse (Replaces: 628379) |
|
$ 11.10 | |||||
| 2 | WPW10141645 | Screw (Replaces: W10141645) |
|
$ 8.05 | |||||
| 3 | 2303216 | Tube, Water |
|
$ 55.81 | |||||
| 4 | WP489478 | Screw, (Replaces: W10001260) |
|
$ 8.18 | |||||
| 5 | WPW10179146 | Valve, Solenoid (Replaces: W10179146) |
|
Immediately | $ 99.47 | ||||
| 6 | W10562834 | Tube Clip (Replaces: W10245516) |
|
$ 15.66 | |||||
| 7 | WPW10289690 | Cover (Replaces: W10289690) |
|
Immediately | $ 8.82 | ||||
| 8 | WPW10068250 | Screw (Replaces: W10068250) |
|
$ 4.27 | |||||
| 9 | WPW10300025 | Mold & Heater Assembly (also Order 542638) (Replaces: W10136595) |
|
Immediately | $ 201.92 | ||||
| 10 | WPW10272168 | Cup-water Fill (Replaces: W10272168) |
|
$ 76.48 | |||||
| 11 | W10318914 | Ejector |
|
$ 38.08 | |||||
| 12 | W10286877 | Ice Striper |
|
- | |||||
| 13 | WP2195914 | Support (Replaces: 2194712) |
|
$ 109.80 | |||||
| 14 | WP2315522 | Retainer, Thermostat (Replaces: 2315522) |
|
$ 11.60 | |||||
| 15 | 628532 | Thermostat (also Order 542369 Cement Alumilastic) |
|
$ 109.07 | |||||
| 16 | 8533917 | Screw |
|
$ 14.04 | |||||
| 17 | W10001240 | Screw |
|
$ 9.22 | |||||
| 18 | WP2187467 | Harness, Wiring (Replaces: 2187467) |
|
$ 135.38 | |||||
| 19 | 2303583 | Bracket, Ice Maker Mounting |
|
$ 46.76 | |||||
| 20 | 8201515 | Module Assembly (includes Items 21 & 22) (Replaces: 626691) |
|
Immediately | $ 141.64 | ||||
| 21 | 8201515 | Motor (Replaces: 626683) |
|
Immediately | $ 141.64 | ||||
| 22 | 489136 | Screw |
|
$ 10.80 | |||||
| 100 | W11512152 | Icemaker Assembly (Replaces: W10272870) |
|
$ 216.72 |
