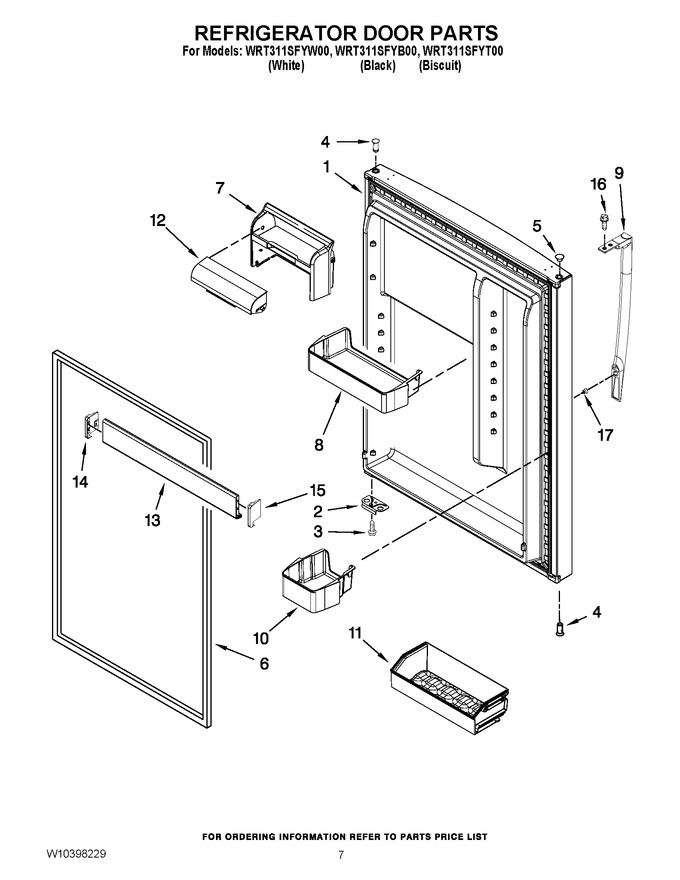

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10406240		Refrigerator Door (includes Items 4, 5 & 6) (black)		Appelez-nous	-
1	W10406239		Refrigerator Door (includes Items 4, 5 & 6) (white)		Appelez-nous	-
1	W10406246		Refrigerator Door (includes Items 4, 5 & 6) (biscuit)		Appelez-nous	-
2	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
3	WP681249		Screw 8-18 X 3/4   (Replaces: 489276)			Immediately	$ 8.25
4	W11189115		Thimble   (Replaces: W10334042)				$ 12.71
5	WP2212649		Plug, Hinge (biscuit)   (Replaces: 2212649)				$ 7.99
5	WP2212648		Plug, Hinge (white)   (Replaces: 2212648)			Immediately	$ 8.19
5	WP2212651		Plug, Hinge (black)   (Replaces: 2212651)				$ 24.21
6	2159061		Door Gasket, Magnetic (mist Beige)   (Replaces: 2202875)			Immediately	$ 183.67
6	2177311		Door Gasket, Magnetic (black)   (Replaces: 2202882)				$ 330.95
7	W10308809		Utility Compart				$ 35.60
8	WPW10308868		Bin, Long   (Replaces: W10308868)			Immediately	$ 89.09
9	WPW10498430		Handle (black)   (Replaces: W10371979)				$ 121.29
9	W10371980		Handle (biscuit)		Appelez-nous	-
9	WPW10498429		Handle (white)   (Replaces: W10366325)				$ 175.09
10	WPW10308869		Bin, Medium   (Replaces: W10308869)			Immediately	$ 72.18
11	W10308845		Can Caddy				$ 40.40
12	WPW10308843		Utility Flip Lid   (Replaces: W10308843)				$ 78.98
13	WPW10469911		Trim, Door Shelf   (Replaces: W10308874)				$ 104.53
14	W10338485		Endcap Trim Ls				$ 10.41
15	W10308871		Endcap Trim Rs				$ 10.44
16	WP489357		Screw 8-18 X 5/8   (Replaces: 489357)			Immediately	$ 7.55
17	WPW10170540		Mounting Screw   (Replaces: W10170540)			Immediately	$ 8.51
