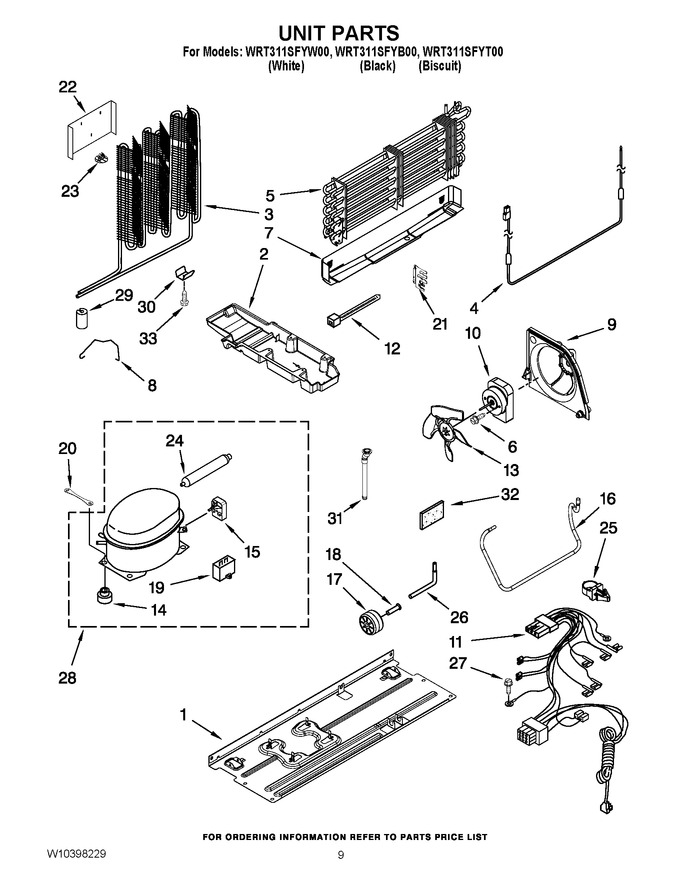

01 - Cabinet Parts
02 - Liner Parts
03 - Shelf Parts
04 - Freezer Door Parts
05 - Refrigerator Door Parts
06 - Unit Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11396825 | Plate, Unit Mounting (Replaces: W10300118) |
|
$ 140.15 | |||||
| 2 | W10890667 | Evaporator Tray (Replaces: W10466213) |
|
$ 151.95 | |||||
| 3 | W10376576 | Condenser |
|
- | |||||
| 4 | WPW10316428 | Heater, Defrost (Replaces: W10316428) |
|
Immediately | $ 257.91 | ||||
| 5 | WPW10314205 | Evaporator Assy (Replaces: W10314205) |
|
$ 361.39 | |||||
| 6 | W11501418 | Screw 8-18 X 3/4 (Replaces: 8533961) |
|
- | |||||
| 7 | WPW10314195 | Heat Shield (Replaces: W10314195) |
|
$ 101.34 | |||||
| 8 | W10249638 | Bale Strap |
|
- | |||||
| 9 | WP2315541 | Air Baffle (Replaces: 2315541) |
|
Immediately | $ 87.99 | ||||
| 10 | WP2188874 | Motor, Condenser (Replaces: 2188874) |
|
Immediately | $ 113.96 | ||||
| 11 | W11625681 | Wire Assy, Unit (Replaces: W10410814) |
|
$ 113.83 | |||||
| 12 | WPW10339879 | Strap (Replaces: 2263990) |
|
$ 8.30 | |||||
| 13 | WPW10139483 | Fan Blade (Replaces: W10139483) |
|
$ 99.82 | |||||
| 14 | WPW10169124 | Grommet (Replaces: 10835903) |
|
$ 7.55 | |||||
| 15 | W10892065 | Start-device Combination (start Relay And Overload For Production Compressor Only) (Replaces: W10330832) |
|
$ 185.18 | |||||
| 16 | W10466681 | Tube, Suction |
|
- | |||||
| 17 | WPW10475495 | Roller, Rear (Replaces: 2150304) |
|
Immediately | $ 32.06 | ||||
| 18 | W11594405 | Axle, Rivet (Replaces: 2179826) |
|
Immediately | $ 19.12 | ||||
| 19 | WPW10662129 | Capacitor (Replaces: 2264017) |
|
Immediately | $ 58.86 | ||||
| 20 | W10236396 | Strap, Condenser |
|
Immediately | $ 20.81 | ||||
| 21 | W10314197 | Bracket, Evap |
|
$ 23.44 | |||||
| 22 | W10349515 | Cover, Condenser Bottom |
|
- | |||||
| 23 | W10296661 | Clip, Cover |
|
$ 17.78 | |||||
| 24 | WPW10143759 | Drier (Replaces: W10177049) |
|
Immediately | $ 30.78 | ||||
| 25 | 2219077 | Harness Clip |
|
$ 64.24 | |||||
| 26 | W11676464 | Tube, Process (Replaces: 2212848) |
|
$ 108.61 | |||||
| 27 | WP489128 | Screw, 8-32 X 3/8 (Replaces: 488500) |
|
$ 11.40 | |||||
| 28 | W10233960 | Compressor (includes Items 14, 15, 19 & 24) (also Order 482801 Installation Kit & 876765 Tube Kit) (Replaces: W10237272) |
|
Immediately | $ 539.34 | ||||
| 29 | W10852725 | Grommet, Condenser (Replaces: 2319835) |
|
$ 8.09 | |||||
| 30 | W10683556 | Clip, Condenser (Replaces: W10248621) |
|
$ 19.38 | |||||
| 31 | W11190084 | Drain Valve (Replaces: W10316650) |
|
Immediately | $ 65.56 | ||||
| 32 | W11553819 | Insulation, Sound (Replaces: 2215468) |
|
Immediately | $ 14.77 | ||||
| 33 | W11544659 | Screw 8-18 X 1-1/4 (Replaces: 8281232) |
|
$ 14.35 | |||||
| NI | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 | |||||
| NI | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 134.49 | ||||
| NI | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| NI | 978028 | Valve, Access (1/2``) |
|
- | |||||
| NI | 978029 | Valve, Access (5/8``) |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access (3/4``) |
|
$ 137.25 | |||||
| NI | 876764 | Valve, Access (3/16``) |
|
Immediately | $ 95.92 | ||||
| NI | N/P | Refrigerant Charge (4.0 Ozs. (r134a)) |
|
- |
