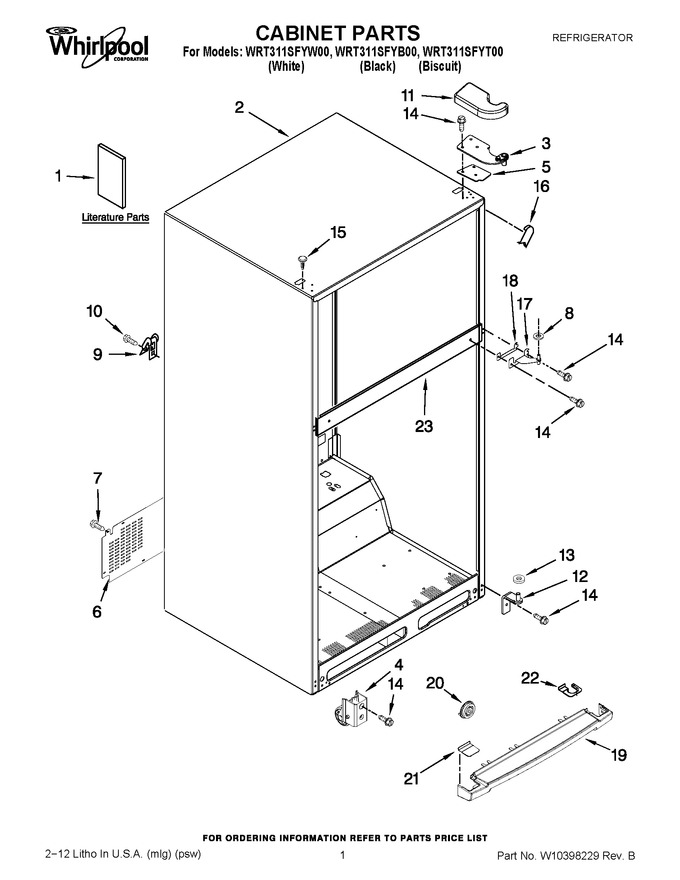

01 - Cabinet Parts


02 - Liner Parts


03 - Shelf Parts


04 - Freezer Door Parts


05 - Refrigerator Door Parts


06 - Unit Parts


07 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10345451		Energy Label		Appelez-nous	-
1	W10404596		Service & Wiring Sheet		Appelez-nous	-
1	W10343810		Use & Care Guide		Appelez-nous	-
2	N/P		Cabinet (not Serviced)		Appelez-nous	-
3	WPW10300065		Hinge Assy, Top (left)   (Replaces: W10337503)				$ 13.94
3	WPW10300065		Hinge Assy, Top (right)   (Replaces: W10300065)				$ 13.94
4	W10849386		Roller Assy, Front   (Replaces: W10327136)				$ 114.75
5	W10883637		Hinge Shim, Top   (Replaces: W10338247)				$ 15.95
6	WPW10384414		Cover, Unit   (Replaces: W10384414)				$ 106.82
7	WP489464		Screw 8-18 X 1/2   (Replaces: 8281265)			Immediately	$ 8.38
8	WP489467		Washer, Plastic   (Replaces: 489341)			Immediately	$ 11.42
9	549193		Clamp, Cord				$ 14.06
10	WP489442		Screw 8-18 X .600   (Replaces: 489442)			Immediately	$ 11.49
11	W10353948A		Cover, Hinge (black (left))   (Replaces: W10353948)				$ 15.13
11	W10353949A		Cover, Hinge (biscuit (left))   (Replaces: W10353949)		Appelez-nous	-
11	W10353946		Cover, Hinge (biscuit (right))		Appelez-nous	-
11	W10331560A		Cover, Hinge (white (right))   (Replaces: W10331560)				$ 13.44
11	W10331654		Cover, Hinge (white (left))		Appelez-nous	-
11	W10353945A		Cover, Hinge (black (right))   (Replaces: W10353945)				$ 15.13
12	WP2254473		Hinge Assy, Bottom   (Replaces: 2254473)				$ 9.28
13	WP487576		Washer, Nylon   (Replaces: 487576)			Immediately	$ 9.88
14	WP489497		Screw 12-24 X .700   (Replaces: 489497)			Immediately	$ 29.09
15	2200924		Hole Plug (biscuit)		Appelez-nous	-
15	WP2151652		Hole Plug (white)   (Replaces: 2201012)				$ 22.87
15	WP2183998		Hole Plug (black)   (Replaces: 2183998)				$ 19.01
16	W11252732		Corner Filler (black)   (Replaces: W10283960)				$ 13.07
16	WPW10283959		Corner Filler (white)   (Replaces: W10283959)				$ 8.21
16	W10283958		Corner Filler (biscuit)				$ 25.63
17	WP2254618		Hinge, Center   (Replaces: 2254618)			Immediately	$ 92.02
18	WP2183852		Hinge Shim, Center   (Replaces: 2183852)				$ 11.18
19	WPW10300129		Grille (white)   (Replaces: W10300129)				$ 109.55
19	WPW10353939		Grille (black)   (Replaces: W10353939)				$ 169.90
19	W10353940		Grille (biscuit)		Appelez-nous	-
20	W10331226		Drum, Toe Grille				$ 47.42
21	WPW10339257		Cover, Toe Grille (white)   (Replaces: W10339257)				$ 85.42
21	W10353930		Cover, Toe Grille (black)				$ 85.34
21	W10353931		Cover, Toe Grille (biscuit)		Appelez-nous	-
22	W10381059		Cover, Toe Grille (hinge Side) (white)				$ 87.57
22	W10381061		Cover, Toe Grille (hinge Side) (biscuit)		Appelez-nous	-
22	W10381060		Cover, Toe Grille (hinge Side) (black)				$ 36.12
23	N/P		Rail Center (not Serviced)		Appelez-nous	-
