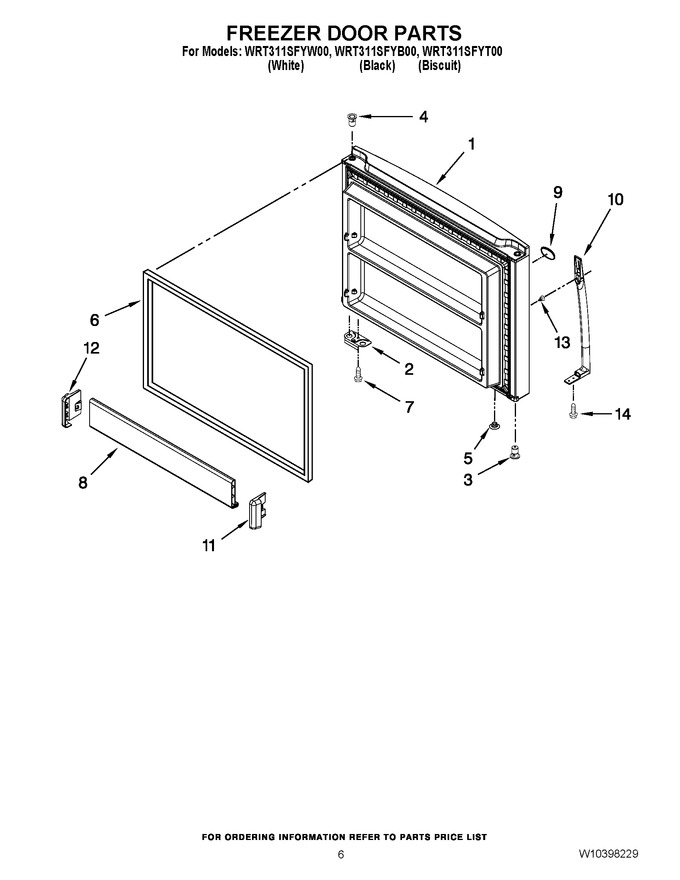

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10406259		Freezer Door (includes Items 3, 4, 5 & 6) (white)		Appelez-nous	-
1	W10406261		Freezer Door (includes Items 3, 4, 5 & 6) (black)		Appelez-nous	-
1	W10406265		Freezer Door (includes Items 3, 4, 5 & 6) (biscuit)		Appelez-nous	-
2	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
3	W11189115		Thimble   (Replaces: W10334042)				$ 12.71
4	WP2182181		Thimble   (Replaces: 2200087)				$ 8.15
5	WP2212651		Plug, Hinge (black)   (Replaces: 2212651)				$ 24.21
5	WP2212649		Plug, Hinge (biscuit)   (Replaces: 2212649)				$ 7.99
5	WP2212648		Plug, Hinge (white)   (Replaces: 2212648)			Immediately	$ 8.19
6	2159060		Door Gasket, Magnetic (mist Beige)   (Replaces: 2214967)				$ 336.01
6	2177310		Door Gasket, Magnetic (black)   (Replaces: 2214969)				$ 335.31
7	WP681249		Screw 8-18 X 3/4   (Replaces: 489276)			Immediately	$ 8.25
8	WPW10469912		Trim Door Shelf   (Replaces: W10308875)				$ 170.45
9	W11178521		Nameplate (white)   (Replaces: W10387117)			Immediately	$ 63.13
9	WPW10393264		Nameplate (grey)   (Replaces: W10393264)				$ 67.74
10	W10371980		Handle (biscuit)		Appelez-nous	-
10	WPW10498429		Handle (white)   (Replaces: W10366325)				$ 175.09
10	WPW10498430		Handle (black)   (Replaces: W10371979)				$ 121.29
11	W10308871		Endcap Trim Rs				$ 10.44
12	W10338485		Endcap Trim Ls				$ 10.41
13	WPW10170540		Mounting Screw   (Replaces: W10170540)			Immediately	$ 8.51
14	WP489357		Screw 8-18 X 5/8   (Replaces: 489357)			Immediately	$ 7.55
