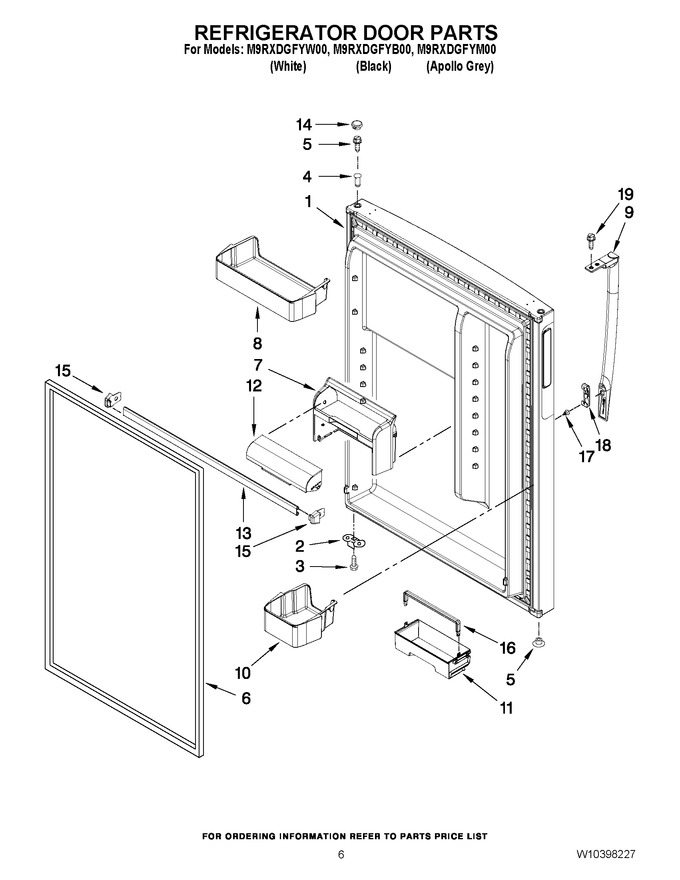

04 - Refrigerator Door Parts
05 - Unit Parts
06 - Icemaker Parts
07 - Freezer Door Parts
08 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10353883 | Refrigerator Door (includes Illus. 6 & 8) (black) |
|
- | |||||
| 1 | W10353894 | Refrigerator Door (includes Illus. 6 & 8) (stainless) |
|
- | |||||
| 1 | LW10329581 | Refrigerator Door (includes Illus. 6 & 8) (white) (Replaces: W10329581) |
|
$ 768.34 | |||||
| 2 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 3 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 4 | W11189115 | Thimble (Replaces: W10334042) |
|
$ 12.71 | |||||
| 5 | WP681249 | Hole Plug Hinge (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 5 | WP2212651 | Hole Plug Hinge (black) (Replaces: 2212651) |
|
$ 24.21 | |||||
| 5 | WP2212648 | Hole Plug Hinge (white) (Replaces: 2212648) |
|
Immediately | $ 8.19 | ||||
| 5 | WP2254517 | Hole Plug Hinge (apollo Grey) (Replaces: 2254517) |
|
Immediately | $ 24.34 | ||||
| 6 | WP2183003 | Door Gasket (Replaces: 2183003) |
|
$ 8.14 | |||||
| 6 | W11624977 | Door Gasket (apollo Grey) (Replaces: W10279664) |
|
$ 370.52 | |||||
| 6 | 2177305 | Door Gasket (black) (Replaces: 2202881) |
|
$ 274.07 | |||||
| 6 | 2159057 | Door Gasket (white) (Replaces: 2202874) |
|
Immediately | $ 164.66 | ||||
| 7 | W10308809 | Utility Compart |
|
$ 35.60 | |||||
| 8 | WPW10308868 | Bin Long (Replaces: W10331763) |
|
Immediately | $ 89.09 | ||||
| 9 | W10351407 | Handle (black) |
|
- | |||||
| 9 | W10327267 | Handle (white) |
|
- | |||||
| 9 | W10365031 | Handle (apollo Grey) |
|
- | |||||
| 10 | WPW10308867 | Bin Short (Replaces: W10331762) |
|
$ 73.84 | |||||
| 11 | W10338827 | Handle Caddy |
|
- | |||||
| 12 | WPW10308843 | Utility Flip Lid (Replaces: W10308843) |
|
$ 78.98 | |||||
| 13 | W10308872 | Trim, Door Shelf |
|
- | |||||
| 14 | W10355196 | Hole Plug Endcap (black) |
|
$ 23.82 | |||||
| 14 | 2218109 | Hole Plug Endcap |
|
$ 33.66 | |||||
| 14 | W10355197 | Hole Plug Endcap (apollo Grey) |
|
- | |||||
| 14 | W10348220 | Hole Plug Endcap (white) |
|
$ 22.37 | |||||
| 15 | W10308871 | Apollo Grey (endcap Trim Rs) |
|
$ 10.44 | |||||
| 15 | W10338485 | Apollo Grey (endcap Trim Ls) |
|
$ 10.41 | |||||
| 16 | W10356443 | Caddy |
|
- | |||||
| 17 | WPW10170540 | Screw (Replaces: W10170540) |
|
Immediately | $ 8.51 | ||||
| 18 | WP2255411 | Clip Mtg (Replaces: 2255411) |
|
$ 36.55 | |||||
| 19 | 8534058 | Screw |
|
$ 8.87 |
