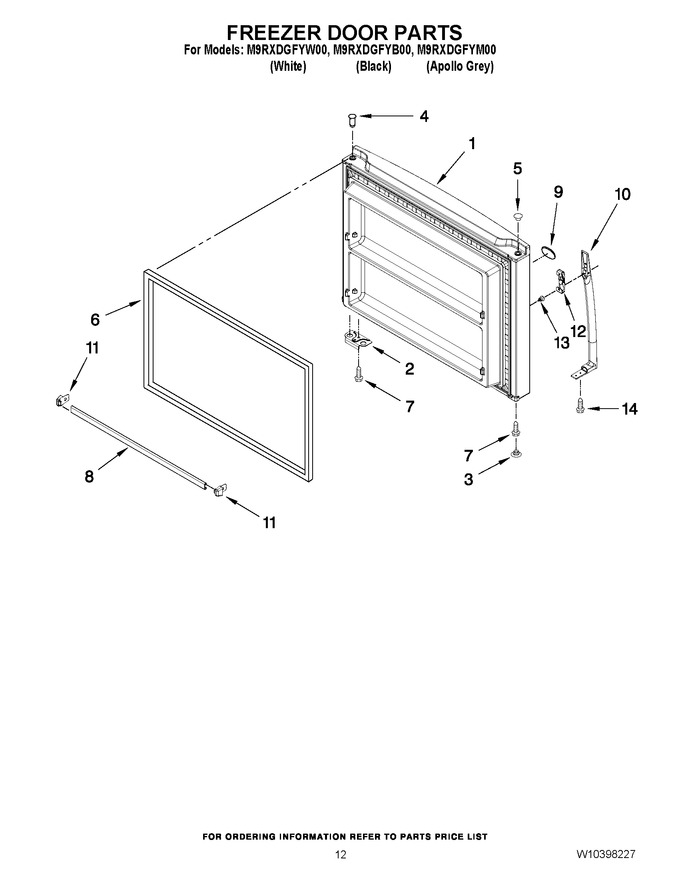

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10329576		Freezer Door (includes Illus. 4 & 6) (white)		Appelez-nous	-
1	LW10353302		Freezer Door (includes Illus. 4 & 6) (black)   (Replaces: W10353302)				$ 414.52
1	W10353321		Freezer Door (includes Illus. 4 & 6) (stainless)		Appelez-nous	-
2	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
3	W10348220		Hole Plug Endcap (white)				$ 22.37
3	W10355196		Hole Plug Endcap (black)				$ 23.82
3	W10355197		Hole Plug Endcap (apollo Grey)		Appelez-nous	-
4	W11189115		Thimble   (Replaces: W10334042)				$ 12.71
5	WP2212651		Hole Plug Hinge (black)   (Replaces: 2212651)				$ 24.21
5	WP2254517		Hole Plug Hinge (apollo Grey)   (Replaces: 2254517)			Immediately	$ 24.34
5	WP2212648		Hole Plug Hinge (white)   (Replaces: 2212648)			Immediately	$ 8.19
6	2177304		Door Gasket, Magnetic (black)   (Replaces: 2214968)				$ 225.08
6	W11624958		Door Gasket, Magnetic (apollo Grey)   (Replaces: W10279559)				$ 320.92
6	2159327		Door Gasket, Magnetic (mist Beige)   (Replaces: 2214966)			Immediately	$ 164.58
7	WP681249		Screw   (Replaces: 489276)			Immediately	$ 8.25
8	W10469910		Trim Door Shelf   (Replaces: W10308873)				$ 164.72
9	WPW10170766		Nameplate   (Replaces: W10170766)			Immediately	$ 70.50
10	W10327267		Handle (white)		Appelez-nous	-
10	W10365031		Handle (sparkle)		Appelez-nous	-
10	W10351407		Handle (black)		Appelez-nous	-
11	W10338485		Endcap Trim Ls Wh				$ 10.41
11	W10308871		Endcap Trim Rs Wh				$ 10.44
12	WP2255411		Clip Mtg   (Replaces: 2255411)				$ 36.55
13	WPW10170540		Screw   (Replaces: W10170540)			Immediately	$ 8.51
14	8534058		Screw				$ 8.87
