01 - Cabinet Parts
02 - Liner Parts
03 - Shelf Parts
04 - Freezer Door Parts
05 - Refrigerator Door Parts
06 - Unit Parts
07 - Icemaker Parts
08 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

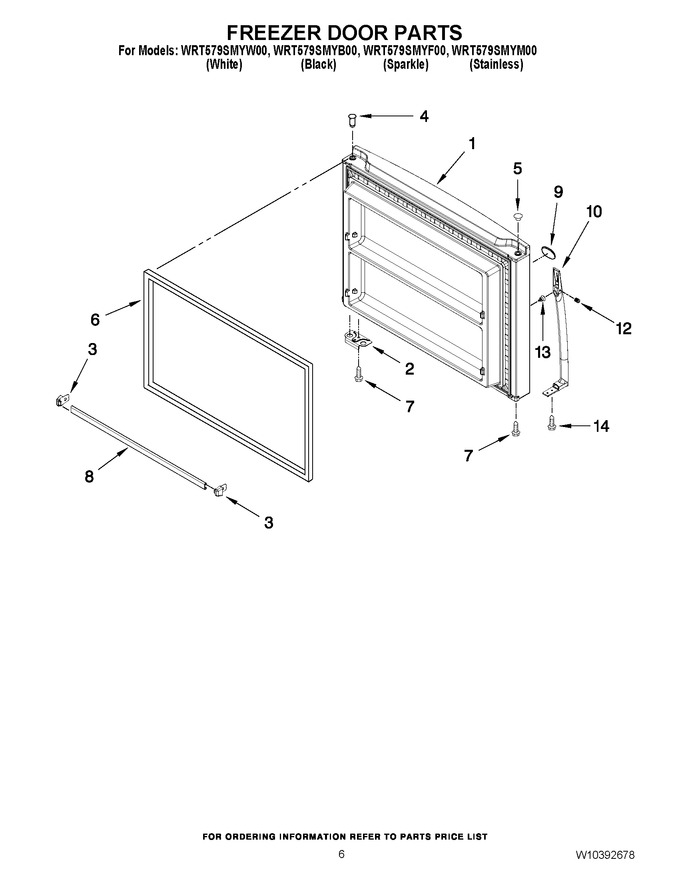

| 1 | LW10353326 | Freezer Door (includes Illus. 4 & 6) (sparkle) (Replaces: W10353326) |
|
$ 518.31 | |||||
| 1 | LW10353320 | Freezer Door (includes Illus. 4 & 6) (stainless) (Replaces: W10353320) |
|
$ 624.15 | |||||
| 1 | LW10299907 | Freezer Door (includes Illus. 4 & 6) (white) (Replaces: W10299907) |
|
$ 539.05 | |||||
| 1 | LW10353301 | Freezer Door (includes Illus. 4 & 6) (black) (Replaces: W10353301) |
|
$ 630.93 | |||||
| 2 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 3 | W10338485 | Endcap, Trim (endcap, Trim Ls) |
|
$ 10.41 | |||||
| 3 | W10308871 | Endcap, Trim (endcap, Trim Rs) |
|
$ 10.44 | |||||
| 4 | W11189115 | Thimble (Replaces: W10334042) |
|
$ 12.71 | |||||
| 5 | WP2254517 | Hole Plug, Hinge (grey) (Replaces: 2254517) |
|
Immediately | $ 24.34 | ||||
| 5 | WP2212651 | Hole Plug, Hinge (black) (Replaces: 2212651) |
|
$ 24.21 | |||||
| 5 | WP2212648 | Hole Plug, Hinge (white) (Replaces: 2212648) |
|
Immediately | $ 8.19 | ||||
| 6 | 2177304 | Door Gasket, Magnetic (black) (Replaces: 2214968) |
|
$ 225.08 | |||||
| 6 | 2159327 | Door Gasket, Magnetic (mist Beige) (Replaces: 2214966) |
|
Immediately | $ 164.58 | ||||
| 6 | W11624958 | Door Gasket, Magnetic (grey) (Replaces: W10279559) |
|
$ 320.92 | |||||
| 7 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 8 | W10469910 | Trim Door Shelf (Replaces: W10308873) |
|
$ 164.72 | |||||
| 9 | W11178521 | Nameplate (white) (Replaces: W10387117) |
|
Immediately | $ 63.13 | ||||
| 9 | WPW10393264 | Nameplate (grey) (Replaces: W10393264) |
|
$ 67.74 | |||||
| 10 | WPW10498430 | Handle (black) (Replaces: W10371979) |
|
$ 121.29 | |||||
| 10 | W11765172 | Handle (sparkle) (Replaces: W10371981) |
|
Immediately | $ 125.17 | ||||
| 10 | WPW10498429 | Handle (white) (Replaces: W10366325) |
|
$ 175.09 | |||||
| 12 | 690046 | Set Screw |
|
- | |||||
| 13 | WPW10170540 | Screw (Replaces: W10170540) |
|
Immediately | $ 8.51 | ||||
| 14 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 7.55 |
